Description

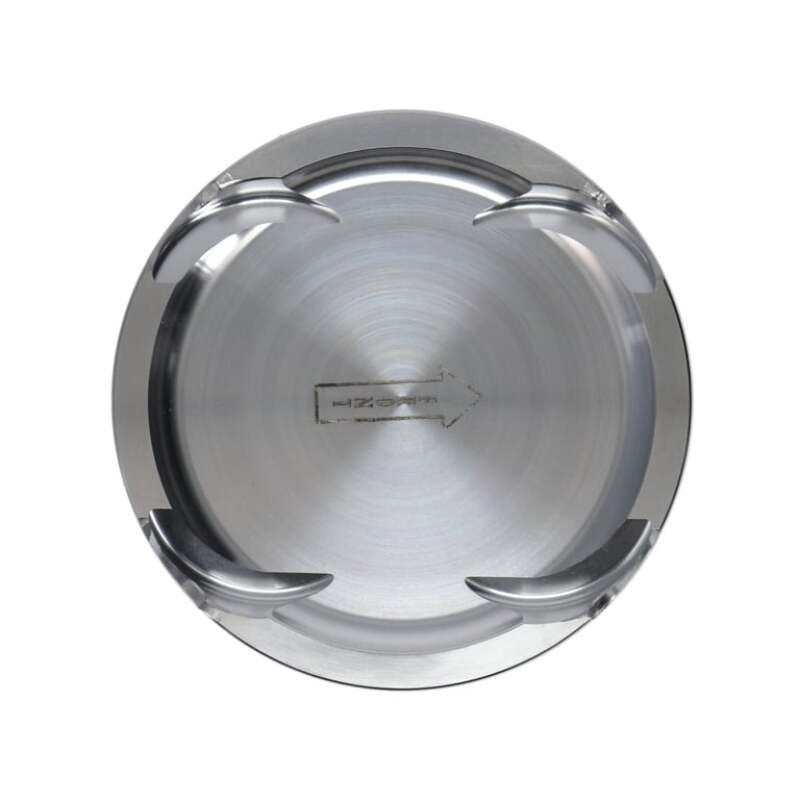

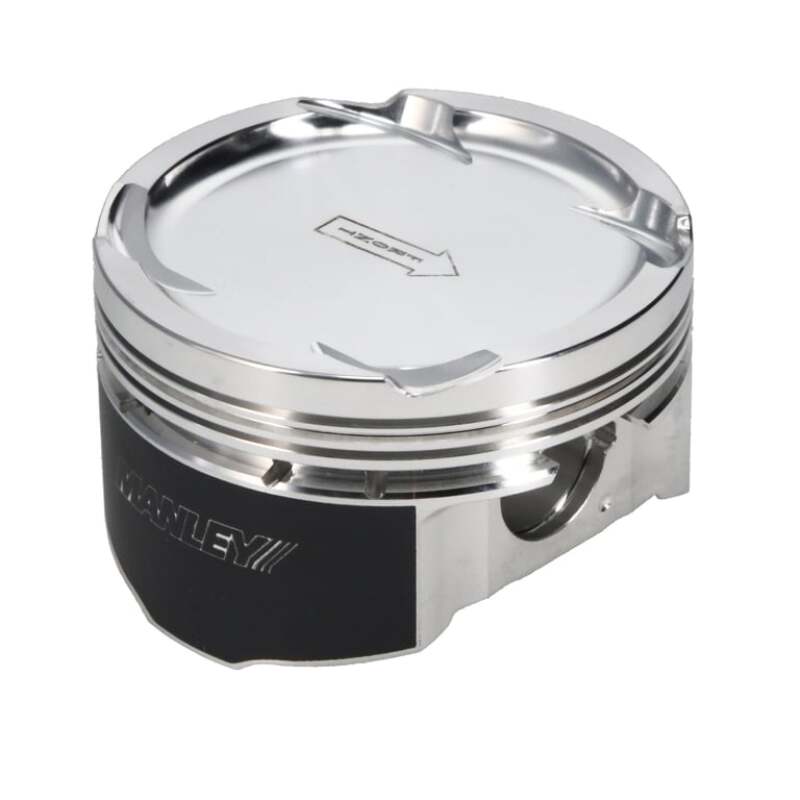

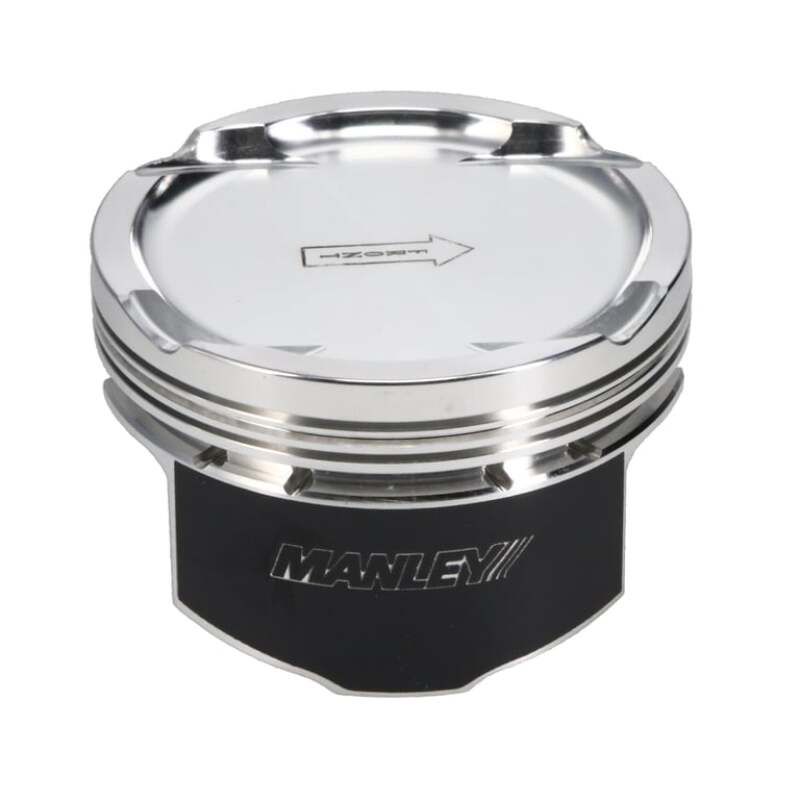

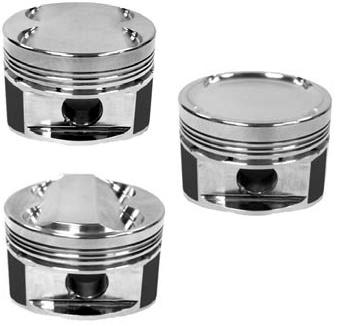

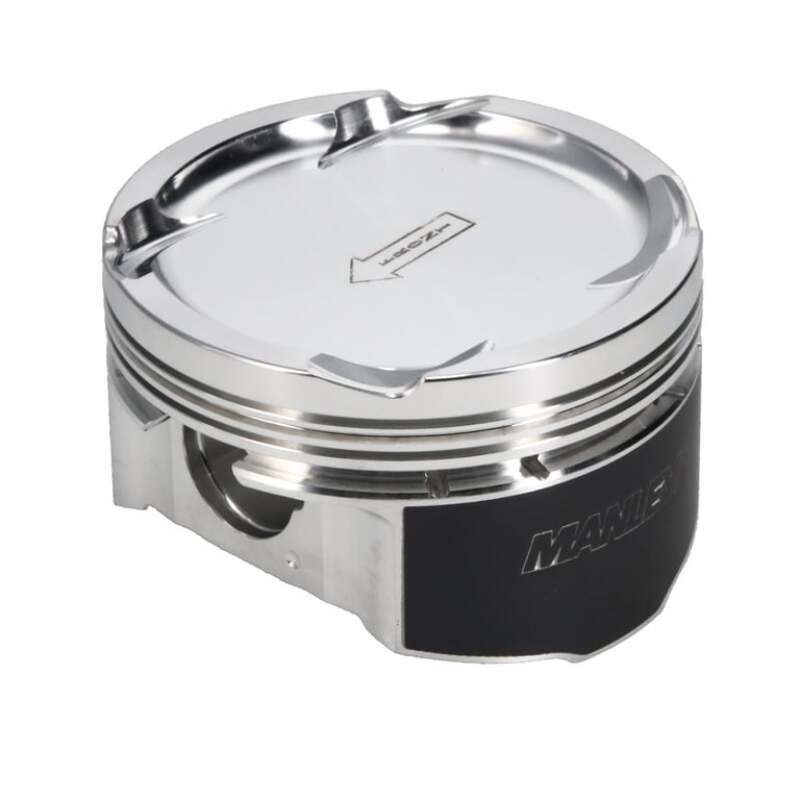

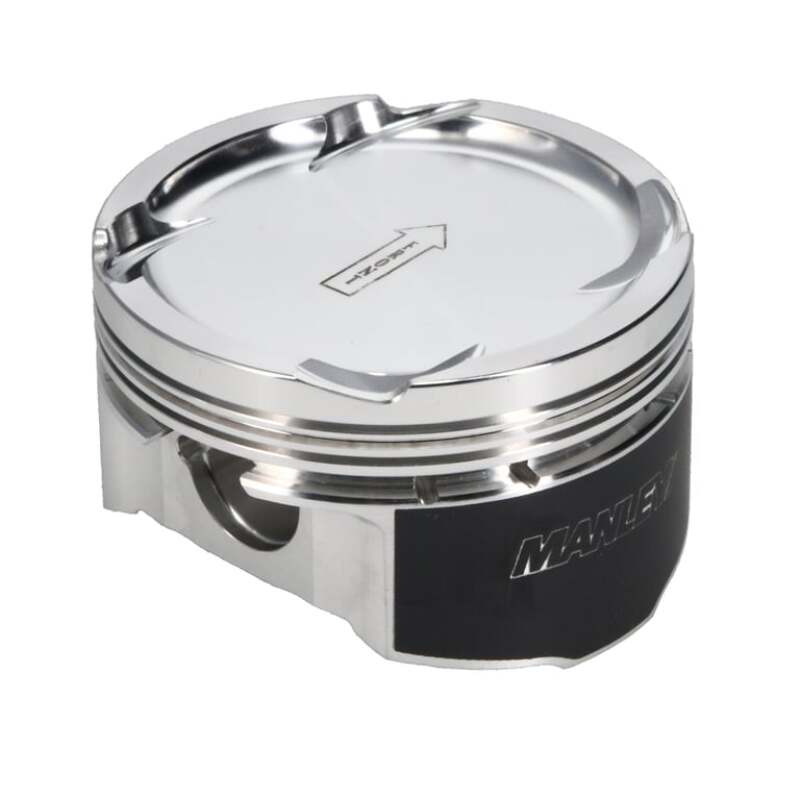

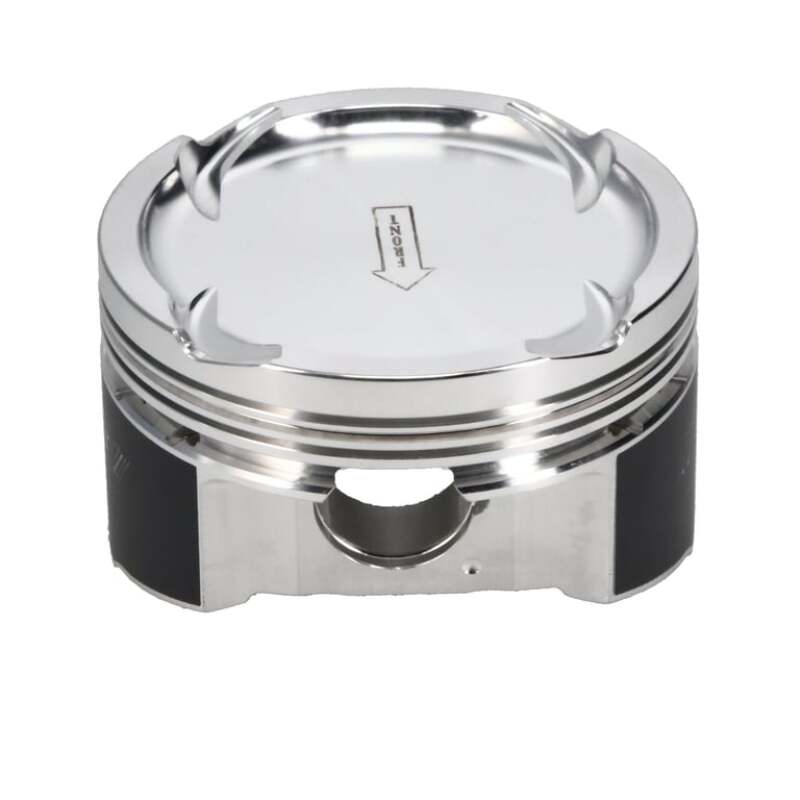

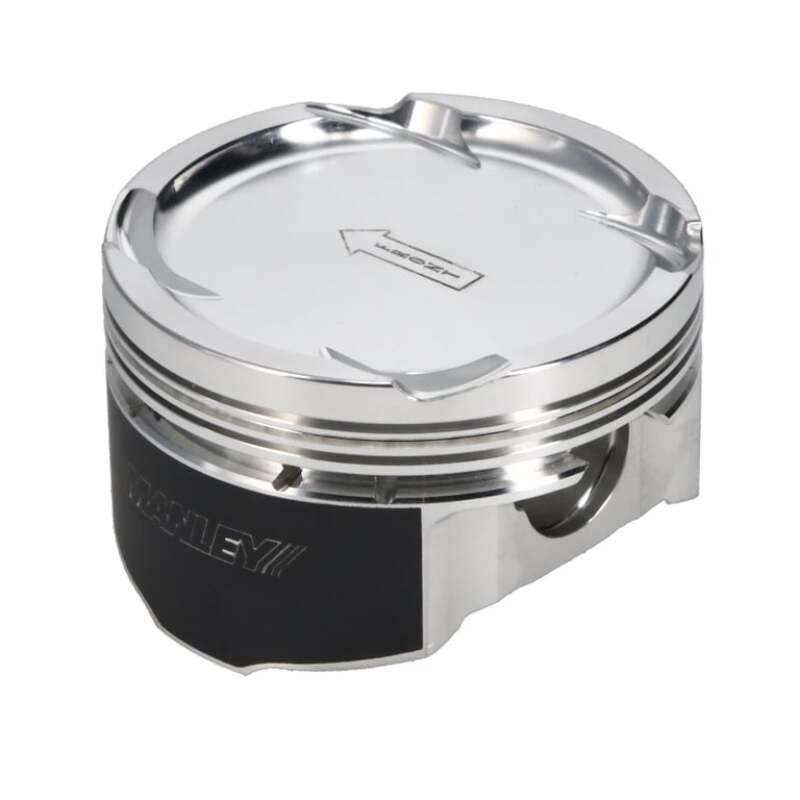

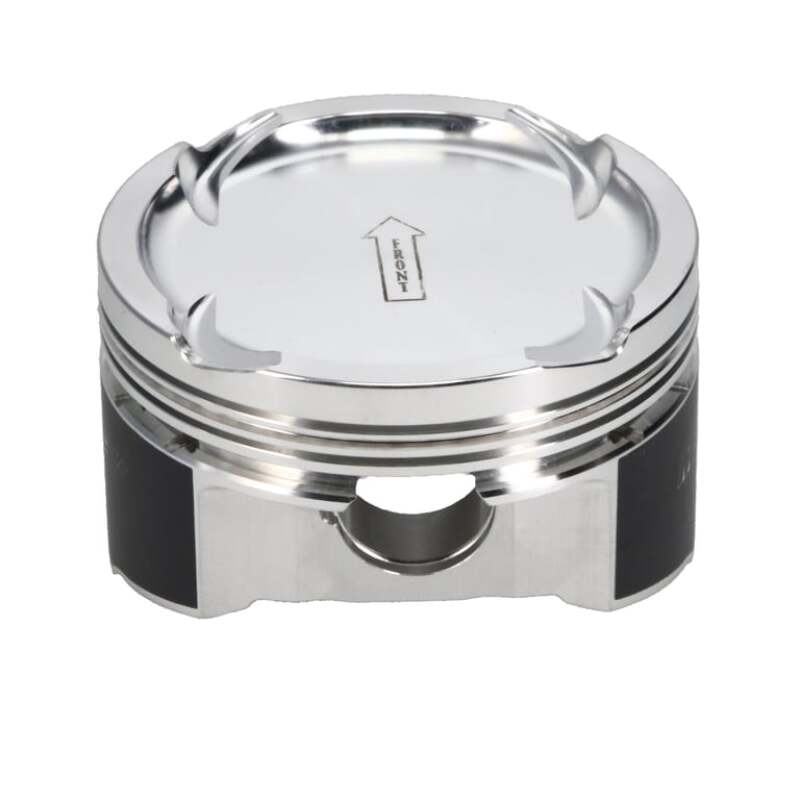

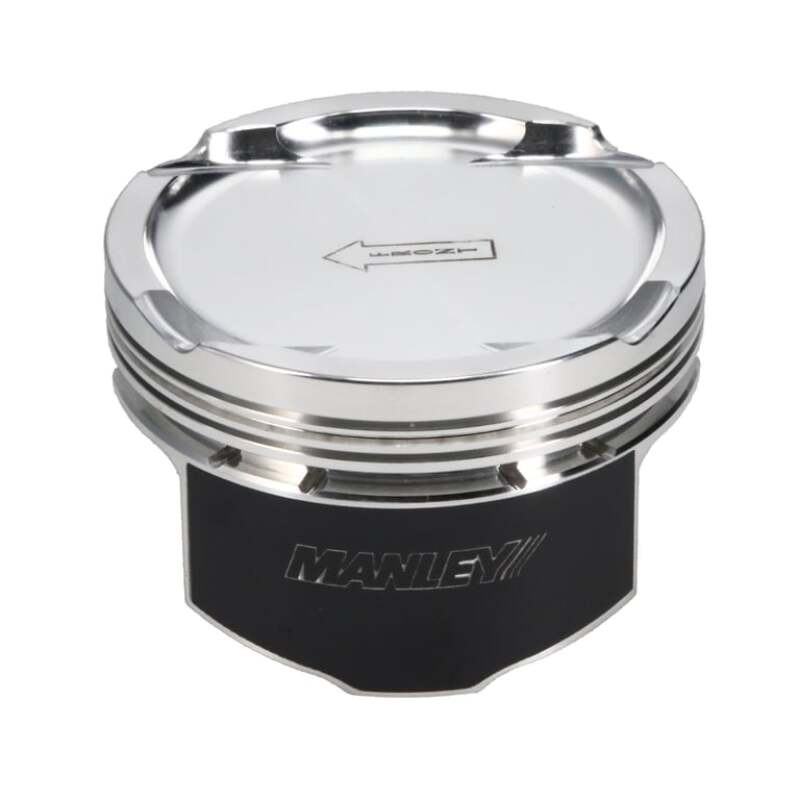

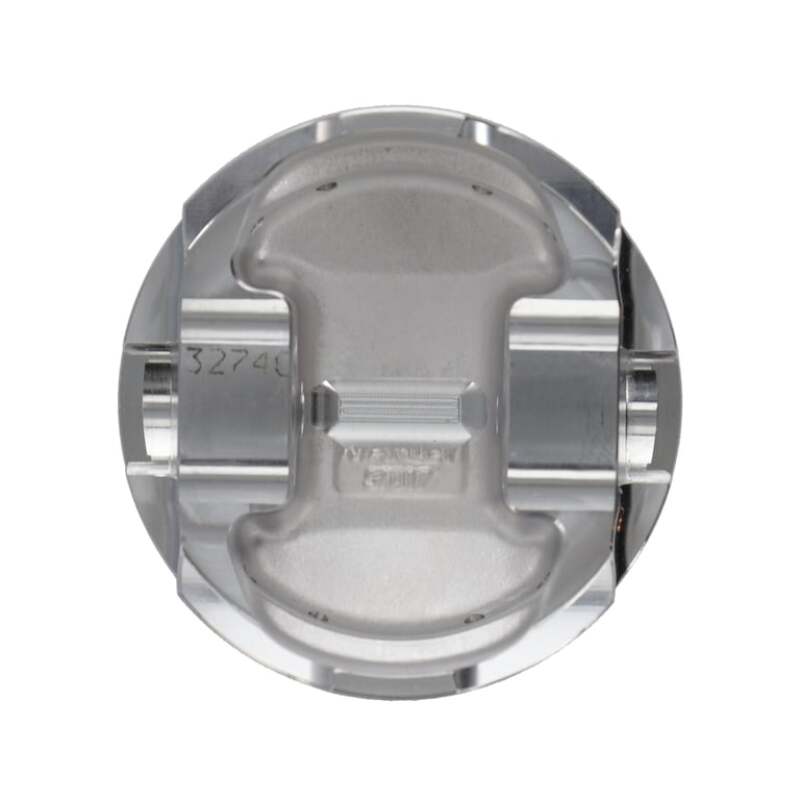

This Platinum Series piston family targets 2003-2006 Evo 8/9 (7 Bolt 4G63T) 85.5mm +.5mm Over Bore engine combinations and should be selected from the finished-bore specification rather than from vehicle fitment alone. The parent listing is distinguished by 100mm / 8.5:1, which should be cross-checked against the rest of the engine combination.
Because this is a 2003-2006 Evo 8/9 (7 Bolt 4G63T) 85.5mm +.5mm Over Bore piston family, final fitment depends on the machine shop’s finished cylinder measurement and the intended rod/stroke combination—not simply on nominal engine displacement.
Key Product Details
- Application: 2003-2006 Evo 8/9 (7 Bolt 4G63T) 85.5mm +.5mm Over Bore
- Manley Series: Platinum Series
- Title Specification: 100mm / 8.5:1
- Product Family Detail: 2618-alloy forged piston construction
- Product Family Detail: tool-steel wrist-pin hardware on applicable part numbers
- Product Family Detail: moly skirt coating on applicable part numbers
- Manufacturer Part Number: 608005C-1
Package Quantity
Sold individually. This listing supplies one piston per selected SKU; order the quantity required for your engine and verify that all pistons match the machine shop’s bore/grade plan. This quantity applies to the selected Manley SKU family shown on this product page.
Selection & Fitment Notes
Confirm finished bore size, required piston grade, compression ratio, compression height, pin specification, ring package, and piston-to-wall clearance with your machine shop or engine builder.
Professional engine assembly and measurement are recommended. Product specifications should be confirmed against the selected Manley part number and the requirements of the exact engine build.
