Description

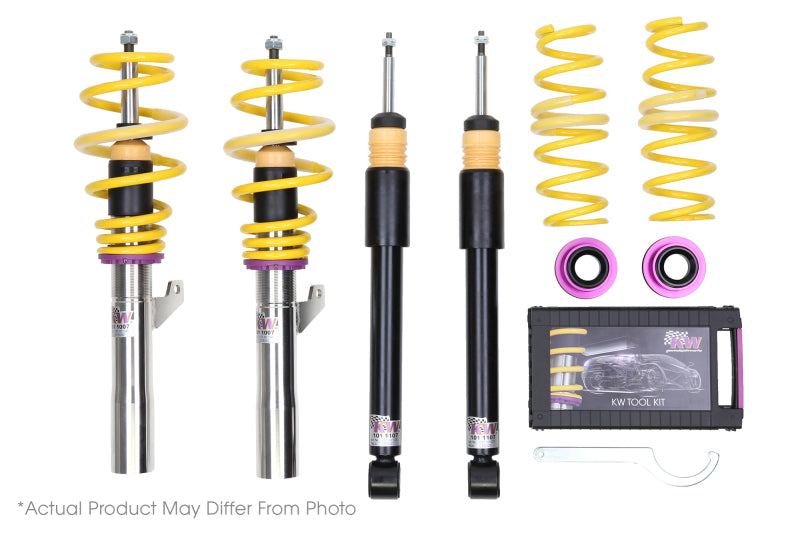

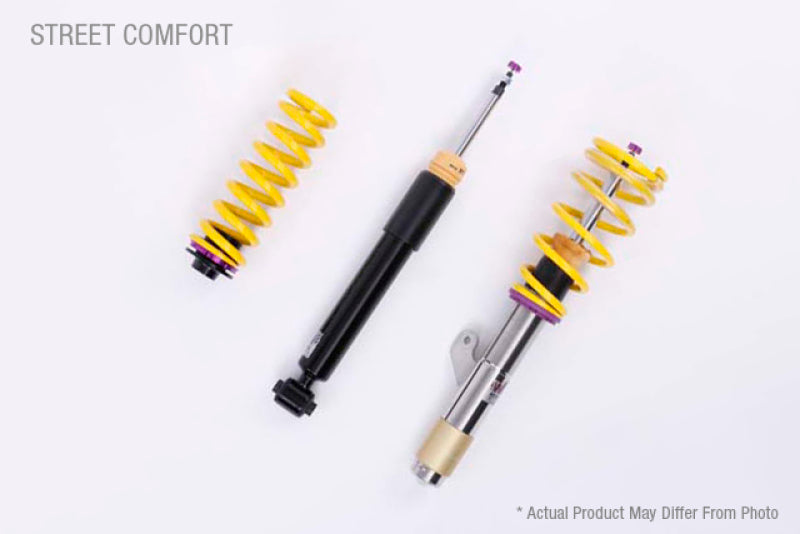

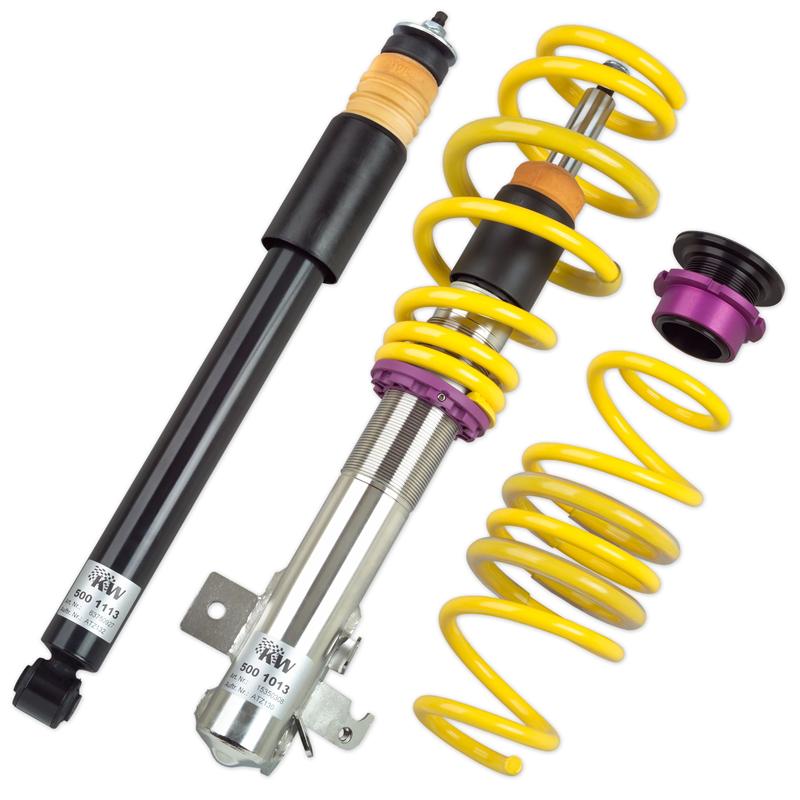

The value of KW Street Comfort on a 2006–2017 Volkswagen Passat/CC (3C/B6/B7/3CC | With DCC) is not just the change in stance; it is the ability to place the chassis in a more controlled operating window for the way the car is actually driven.
KW Street Comfort is aimed at drivers who want adjustable ride height and more disciplined chassis control without making maximum firmness the objective. Rebound adjustment lets the final setup be biased toward a more relaxed road ride or tighter body control as the vehicle and wheel/tire package demand. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW Street Comfort for This Application?
Choose Street Comfort when road compliance remains a priority. It is aimed at owners who want a lower, more disciplined chassis but do not want a setup whose character is defined primarily by track use.
Key Features
- Ride-height adjustment with a comfort-focused operating window
- Adjustable rebound damping
- Application-specific spring and damper calibration
- Designed for frequent street use and long-distance drivability
Vehicle Fitment
- Make: Volkswagen
- Application: Passat (3C/B6/B7) with DCC
- Configuration: Sedan; 2WD + Syncro 4WD; all engines,
- KW Jobber Model Years: 06-10
- KW Part Number: 18080105
Technical Specifications
- Front Height Adjustment: 20-40 mm (0.8-1.8 in)
- Rear Height Adjustment: 20-40 mm (0.8-1.8 in)
- Front Spring Rate: 229 lb/in
- Rear Spring Rate: 257 lb/in
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 57: Only for cars with a clamp diameter of 54,6 mm on the front axle
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
