Description
For a 1974–1989 Porsche 911 (G body) (incl. 19mm raised spindles) being developed beyond stock suspension behavior, KW V3 provides a more deliberate foundation for ride height, body control and tire management.
KW V3 is built around independent low-speed rebound and compression adjustment. KW's current V3 architecture provides 16 rebound clicks and 12 compression clicks, giving an enthusiast meaningful control over chassis support, response and ride without moving into a dedicated motorsport damper. On a performance-focused chassis like this, suspension tuning becomes increasingly valuable as tire grip, alignment and braking capability are raised.
Why Choose the KW V3 for This Application?
Choose the V3 when the car needs a broader operating window. Independent rebound and compression control makes it easier to balance ride, platform support and tire contact as the build moves between street use and more demanding driving.
Key Features

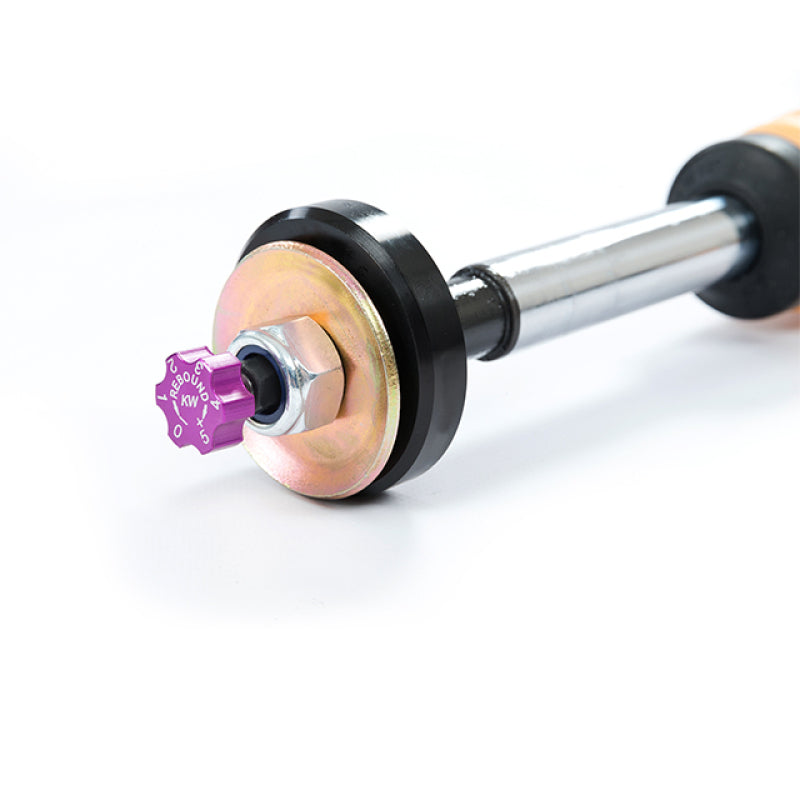

- 16-click low-speed rebound adjustment

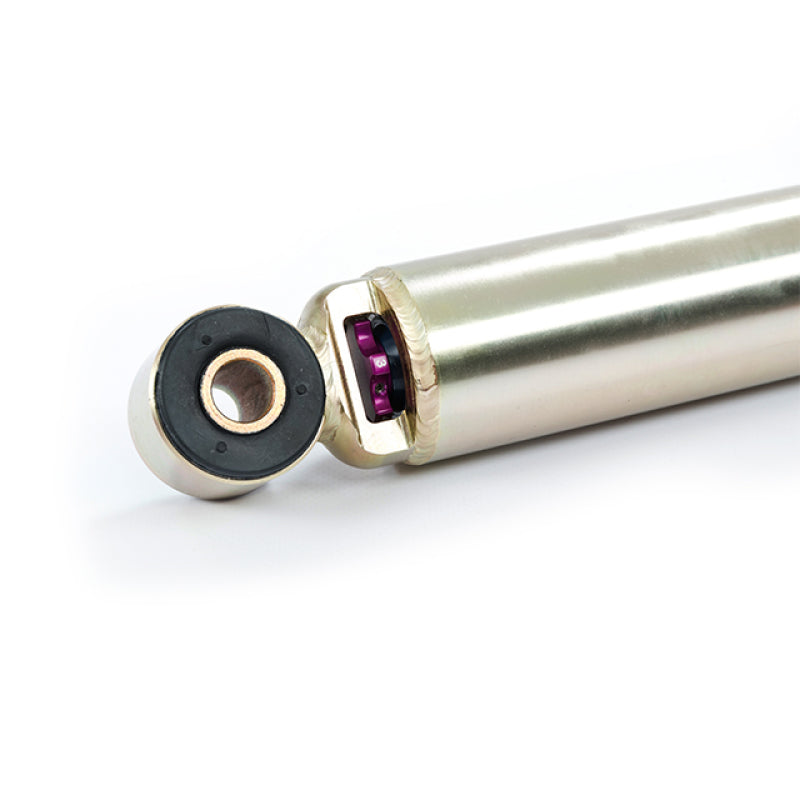

- 12-click low-speed compression adjustment
- Independent rebound and compression tuning
- Continuously adjustable ride height within the application-specific range
Vehicle Fitment
- Make: Porsche
- Catalog Application: 1974–1989 Porsche 911 (G body) (incl. 19mm raised spindles)
- Configuration: incl. 19mm raised spindles; for use with OE torsion bars Requires 16" Wheel minimum
- KW Jobber Model Years: 74-89
- KW Part Number: 35271064
Technical Specifications
- Front Height Adjustment: 19 mm (0.7 in)
- Rear Height Adjustment: 19 mm (0.7 in)
- Front Spring Rate: OE lb/in
- Rear Spring Rate: OE lb/in
Enthusiast Setup Perspective
A good installation should leave enough travel for the road or circuit being used. Chasing maximum lowering at the expense of bump travel can work against the very grip and control this system is intended to provide. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 71: Not Height Adjustable

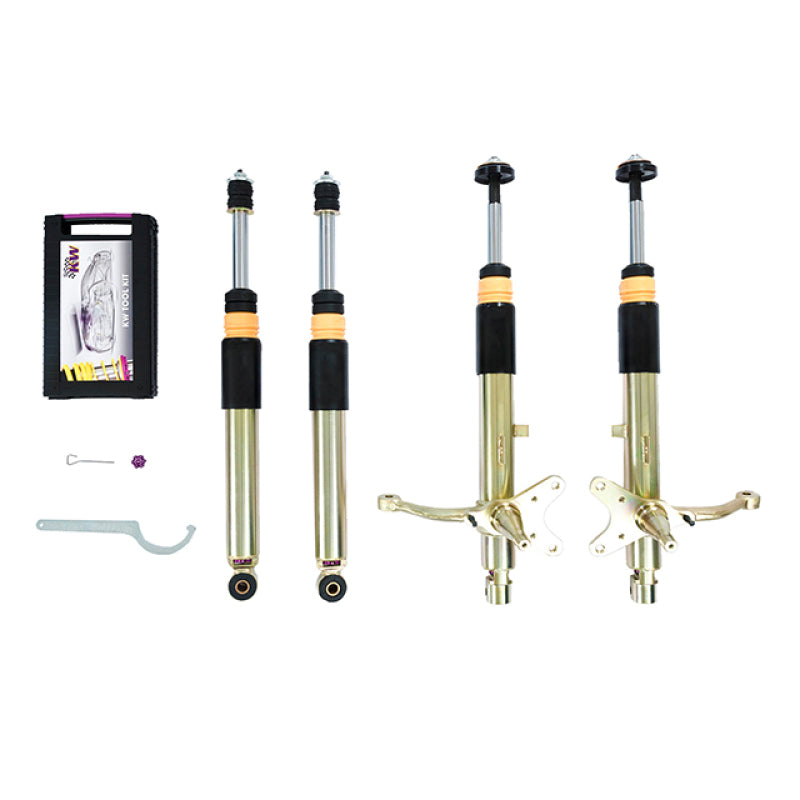

- KW Note 400: Kit includes 4 dampers and accessories, retains stock springs
- KW Note 404: Damper set including new knuckle, finished in galvanized steel
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
