Description

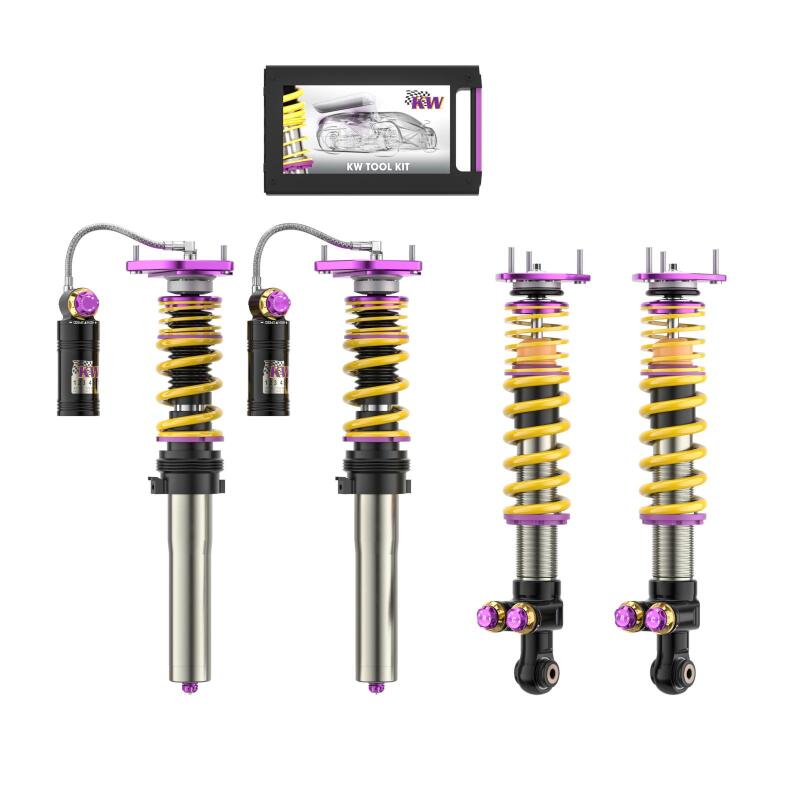

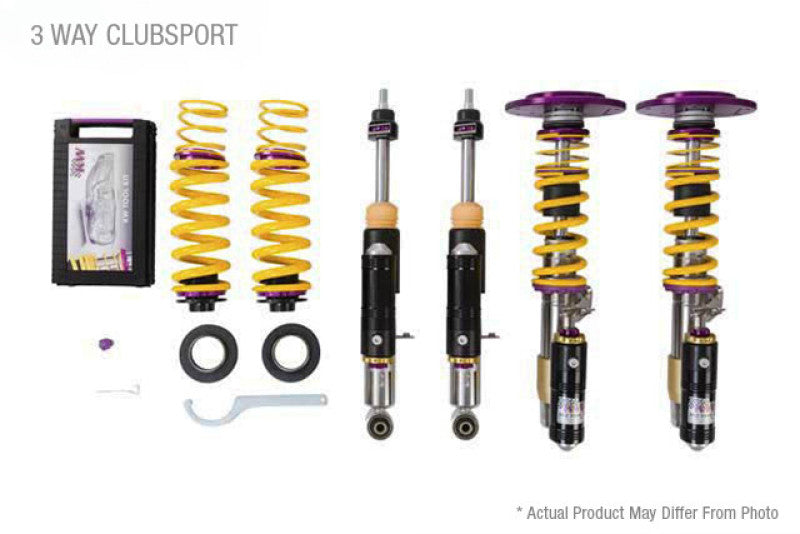

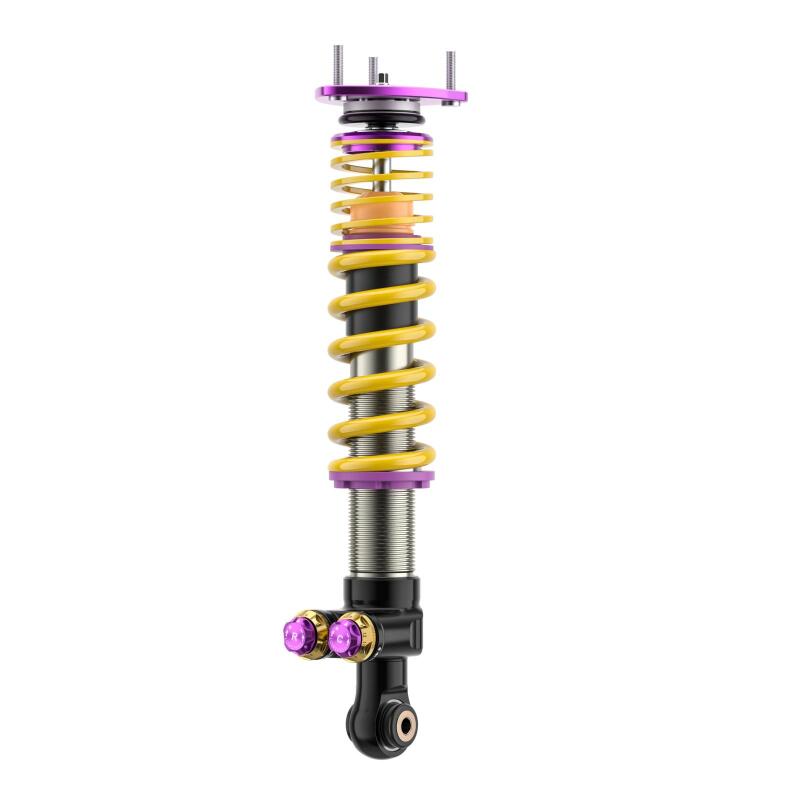

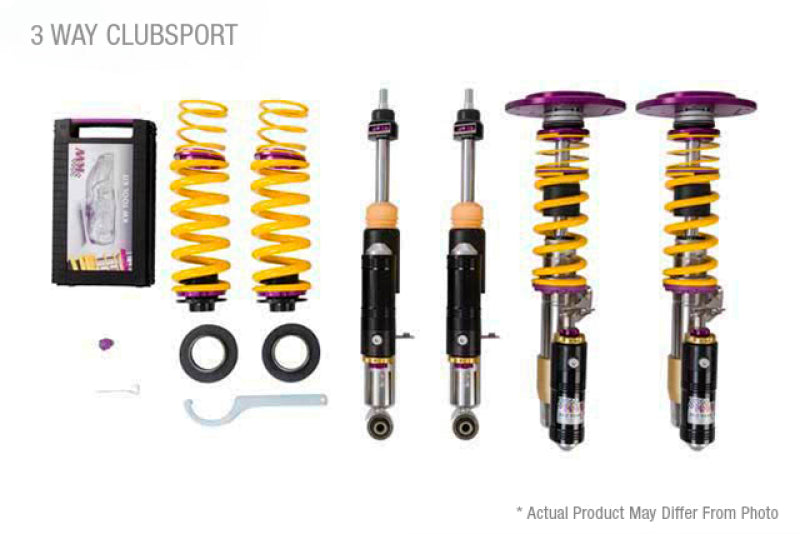

On the 2018–2019 Porsche 911 (991.2, OE Front Lift) | KW 39771280, KW V4 Clubsport is best approached as a chassis-tuning upgrade first and a ride-height change second.
KW V4 Clubsport gives a track-oriented road car independent rebound control plus separate low- and high-speed compression adjustment. This makes it possible to tune platform support under braking, acceleration and cornering separately from the damper's response to faster wheel inputs. The setup should be viewed as a tunable system whose final behavior depends on alignment, tire, ride height and the driver's intended circuit use.
Why Choose the KW V4 Clubsport for This Application?
Choose V4 Clubsport when a track-day build needs three-way damper control to support changes in tire, aero, alignment or circuit surface. It rewards methodical setup work and clear driver feedback.
Key Features
- Independent rebound adjustment
- Separate low- and high-speed compression adjustment
- Clubsport spring rates and application-specific mount configuration
- Broad tuning range for tires, alignment, aero and circuit conditions
Vehicle Fitment
- Make: Porsche
- Catalog Application: 2018–2019 Porsche 911 (991.2, OE Front Lift) | KW 39771280
- Configuration: GT2 RS
- KW Jobber Model Years: 18-19
- KW Part Number: 39771280
Technical Specifications
- Front Height Adjustment: 10 mm (0.4 in)
- Rear Height Adjustment: 10 mm (0.4 in)
- Front Spring Rate: 685 lb/in
- Rear Spring Rate: 970 lb/in
- Top Mount Configuration: Camber / Fixed
Enthusiast Setup Perspective
This setup makes the most sense when the suspension is being treated as part of a complete package. Final ride height, alignment, tire choice and available bump travel should be considered together rather than setting the car as low as possible. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- KW Note 98: Clubsport coilover with top mount: with front- and rear axle top mount available
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
