Description

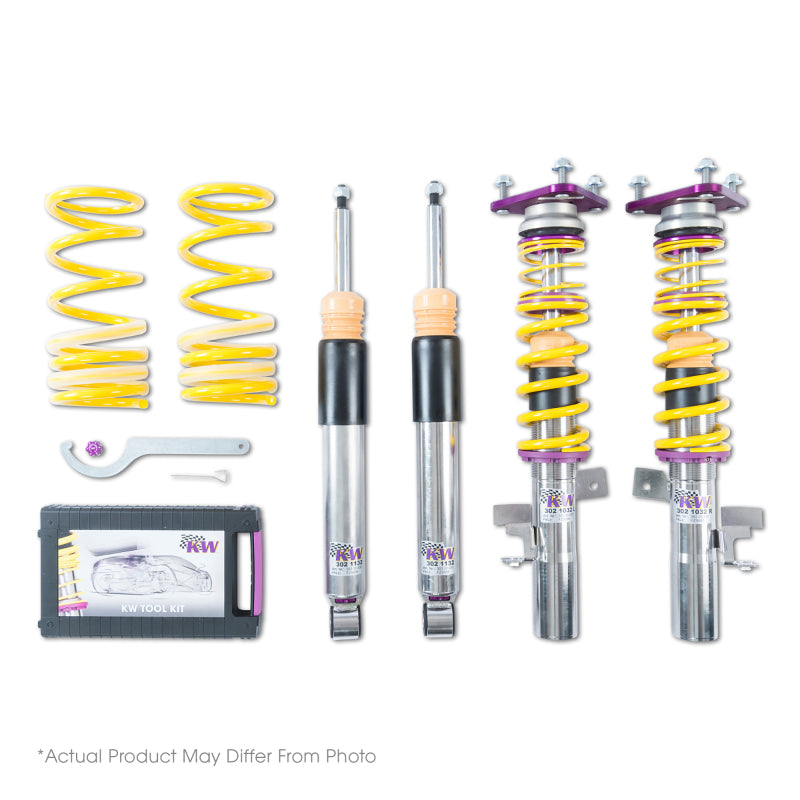

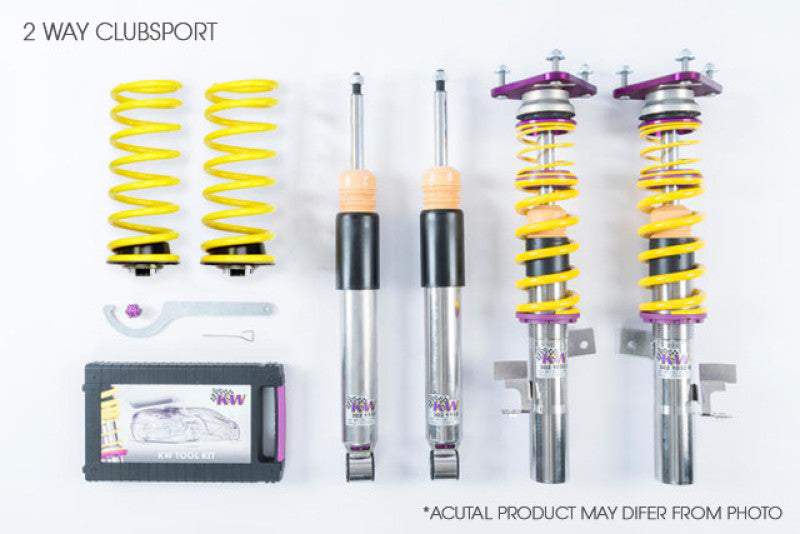

The value of KW V3 Clubsport on a 2018+ Ford Mustang (S-550/S-650) | KW 35230879 is not just the change in stance; it is the ability to place the chassis in a more controlled operating window for the way the car is actually driven.
KW V3 Clubsport is developed for enthusiasts who regularly use road-legal cars on track. It combines independent rebound and compression adjustment with firmer, motorsport-oriented spring/damper calibration and application-specific top-mount hardware where specified. The setup should be viewed as a tunable system whose final behavior depends on alignment, tire, ride height and the driver's intended circuit use.
Why Choose the KW V3 Clubsport for This Application?
Choose V3 Clubsport when the vehicle sees meaningful track use and the standard V3's street bias is no longer the main priority. The stronger track focus makes alignment, tire choice and corner balancing more consequential.
Key Features
- Independent rebound and compression adjustment
- Track-focused spring and damper calibration
- Application-specific Clubsport top-mount configuration where supplied
- Height adjustment for road-and-track setup
Vehicle Fitment
- Make: Ford
- Application: Mustang (S-550)
- Configuration: Coupe, Convertible; without electronic dampers
- KW Jobber Model Years: 18-23
- KW Part Number: 35230879
Technical Specifications
- Front Height Adjustment: 25-45 mm (1.0-1.8 in)
- Rear Height Adjustment: 25-45 mm (1.0-1.8 in)
- Front Spring Rate: 457 lb/in
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
- Top Mount Configuration: Camber / OE*
Enthusiast Setup Perspective
The tuning opportunity is greatest when the car has already moved beyond basic cosmetic modification. As grip and braking capability increase, damper control becomes progressively more important to keeping the chassis predictable. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 62: Not for vehicles with electronic damping
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- KW Note 97: Clubsport coilover with top mount: only with front axle top mount available
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
