Description

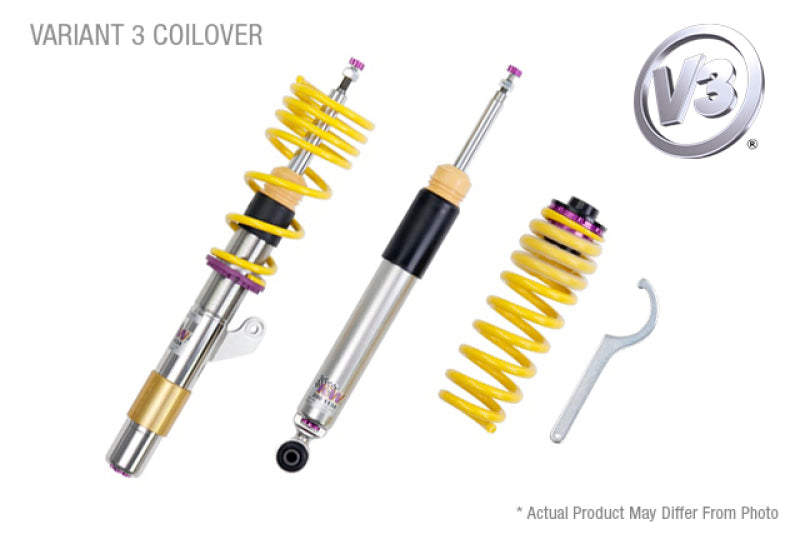

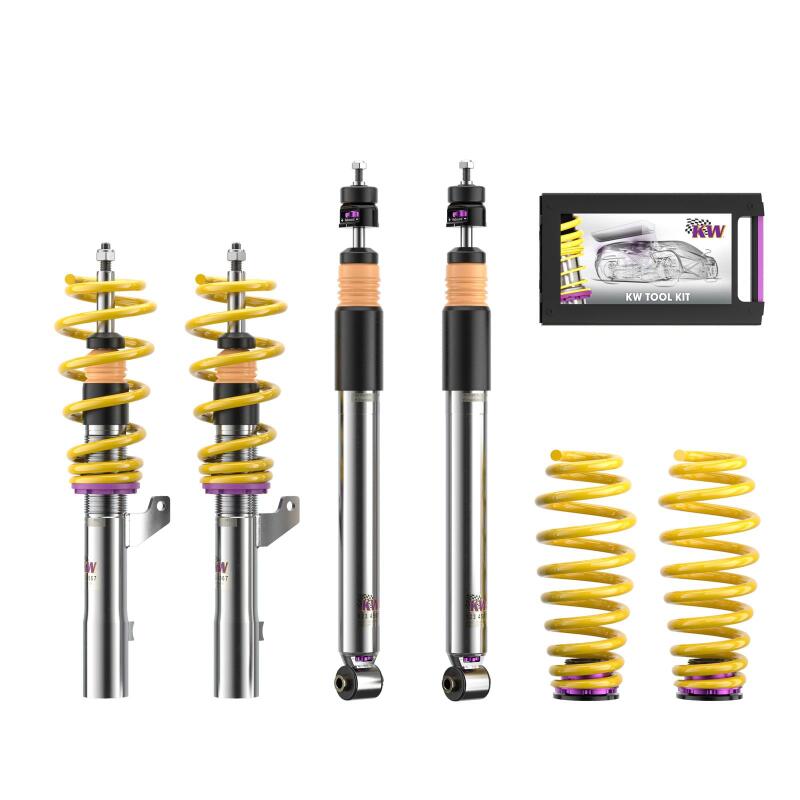

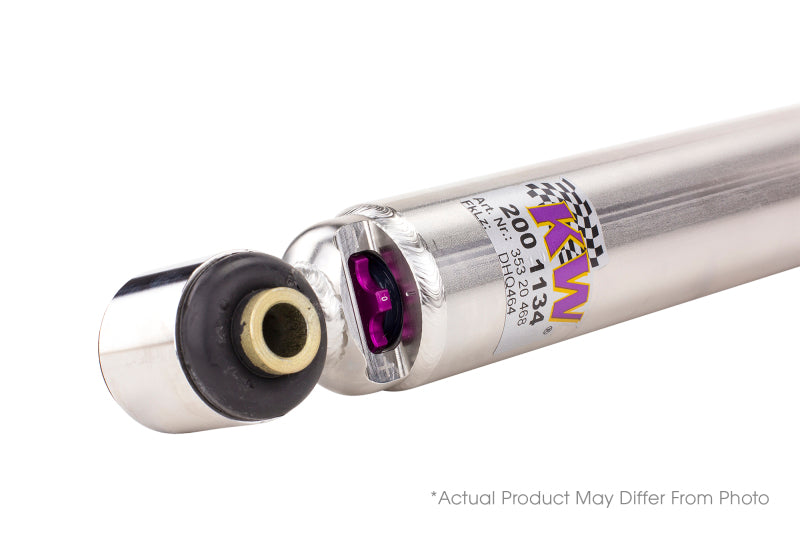

On the 1988–1996 Volkswagen Corrado 16V/G60/VR6 (53i), KW V3 is best approached as a chassis-tuning upgrade first and a ride-height change second.
KW V3 is built around independent low-speed rebound and compression adjustment. KW's current V3 architecture provides 16 rebound clicks and 12 compression clicks, giving an enthusiast meaningful control over chassis support, response and ride without moving into a dedicated motorsport damper. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V3 for This Application?
Choose the V3 when the car needs a broader operating window. Independent rebound and compression control makes it easier to balance ride, platform support and tire contact as the build moves between street use and more demanding driving.
Key Features
- 16-click low-speed rebound adjustment
- 12-click low-speed compression adjustment
- Independent rebound and compression tuning
- Continuously adjustable ride height within the application-specific range
Vehicle Fitment
- Make: Volkswagen
- Application: Corrado (53i) 16V, G60, VR6
- KW Jobber Model Years: 88-96
- KW Part Number: 35280005
Technical Specifications
- Front Height Adjustment: 45-85 mm (1.7-3.3 in)
- Rear Height Adjustment: 45-85 mm (1.7-3.3 in)
- Front Spring Rate: 400 lb/in
- Rear Spring Rate: 285 lb/in
Enthusiast Setup Perspective
For mixed street and performance use, start from KW's baseline settings and make changes one variable at a time. That gives the driver a repeatable way to separate genuine setup improvement from simple changes in ride feel. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
- KW Note 6: When using original tires, wheel offset spacers may be required
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
