Description

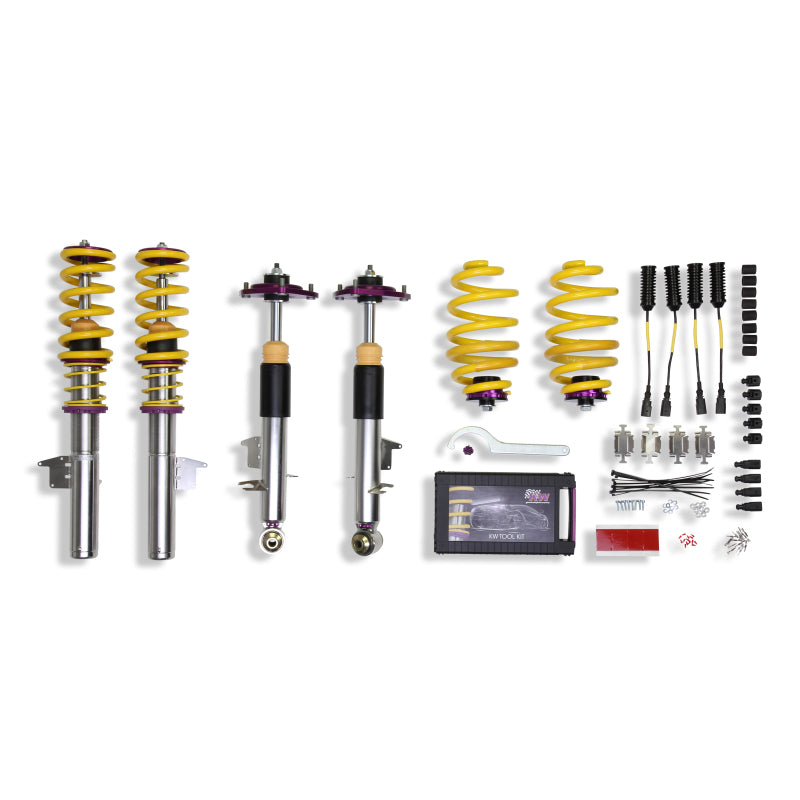

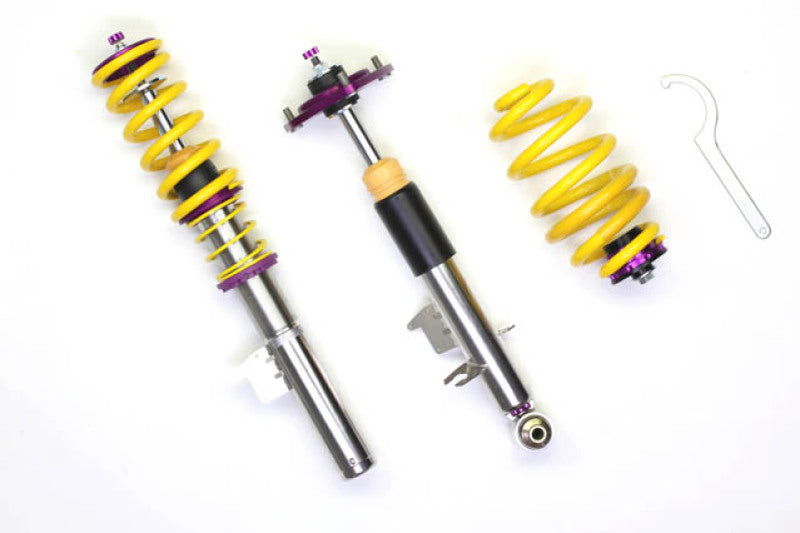

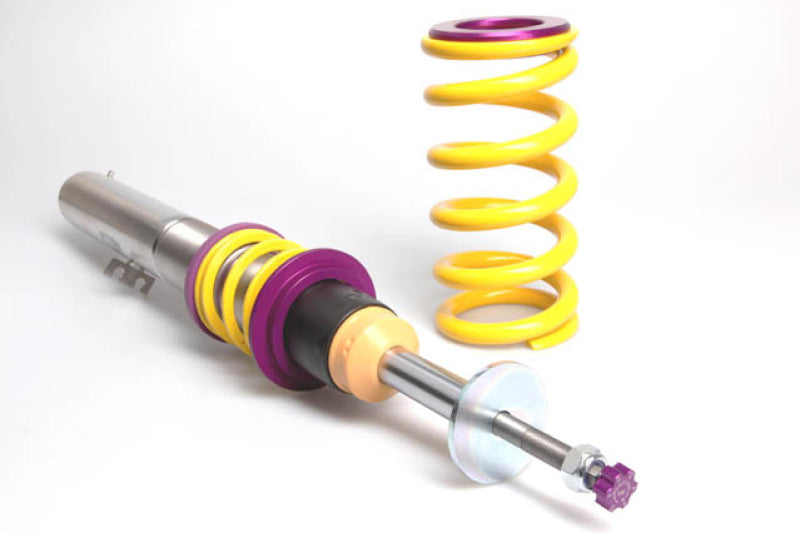

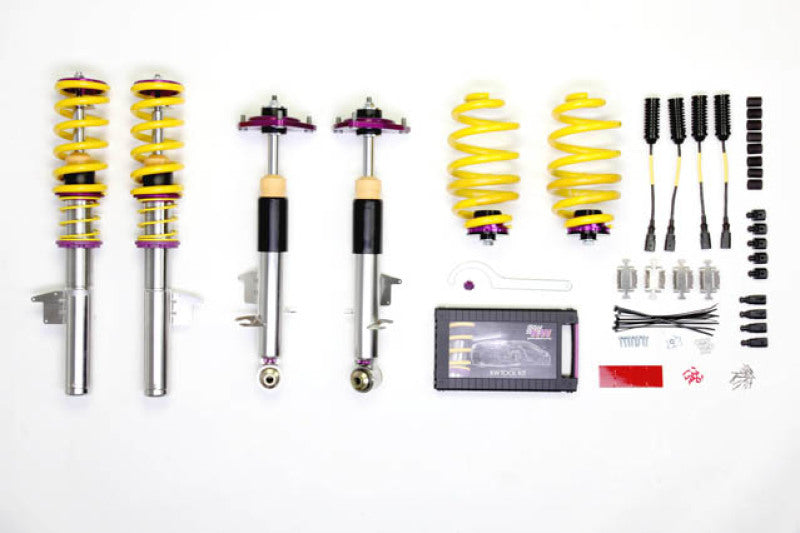

For a 2007–2014 BMW X5/X6 (E70/E71 | With EDC) being developed beyond stock suspension behavior, KW V3 provides a more deliberate foundation for ride height, body control and tire management.
KW V3 is built around independent low-speed rebound and compression adjustment. KW's current V3 architecture provides 16 rebound clicks and 12 compression clicks, giving an enthusiast meaningful control over chassis support, response and ride without moving into a dedicated motorsport damper. For a heavier crossover/SUV platform, managing pitch, roll and vertical body motion is a major part of making the vehicle feel more composed without sacrificing useful travel.
Why Choose the KW V3 for This Application?
Choose the V3 when the car needs a broader operating window. Independent rebound and compression control makes it easier to balance ride, platform support and tire contact as the build moves between street use and more demanding driving.
Key Features
- 16-click low-speed rebound adjustment
- 12-click low-speed compression adjustment
- Independent rebound and compression tuning
- Continuously adjustable ride height within the application-specific range
Vehicle Fitment
- Make: BMW
- Application: X5 (E70) equipped with EDC (bundle incl. EDC delete unit)
- KW Jobber Model Years: 07-13
- KW Part Number: 35220086
Technical Specifications
- Front Height Adjustment: 25-55 mm (0.9-2.1 in)
- Rear Height Adjustment: 35-65 mm (1.4-2.5 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 6: When using original tires, wheel offset spacers may be required
- KW Note 8: Not for vehicles with automatic self leveling control
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
