Description
For a 2009–2017 Audi Q5/SQ5 (8R | With DCC) being developed beyond stock suspension behavior, KW V3 provides a more deliberate foundation for ride height, body control and tire management.

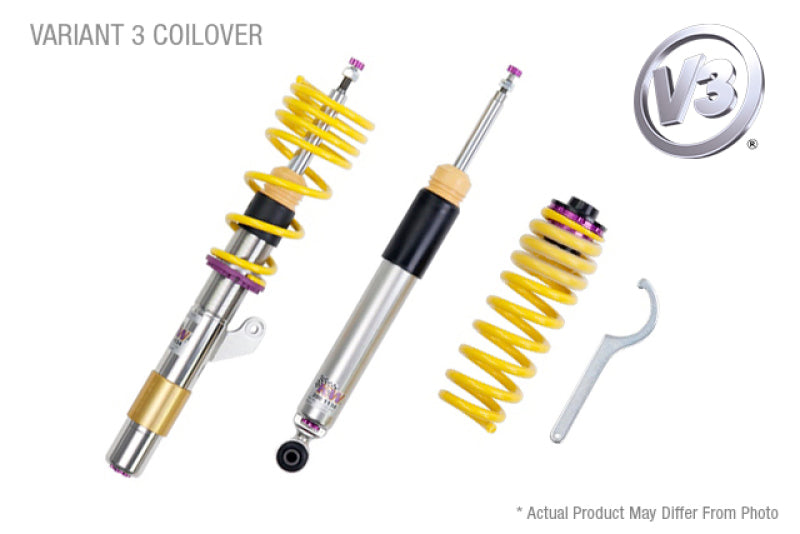

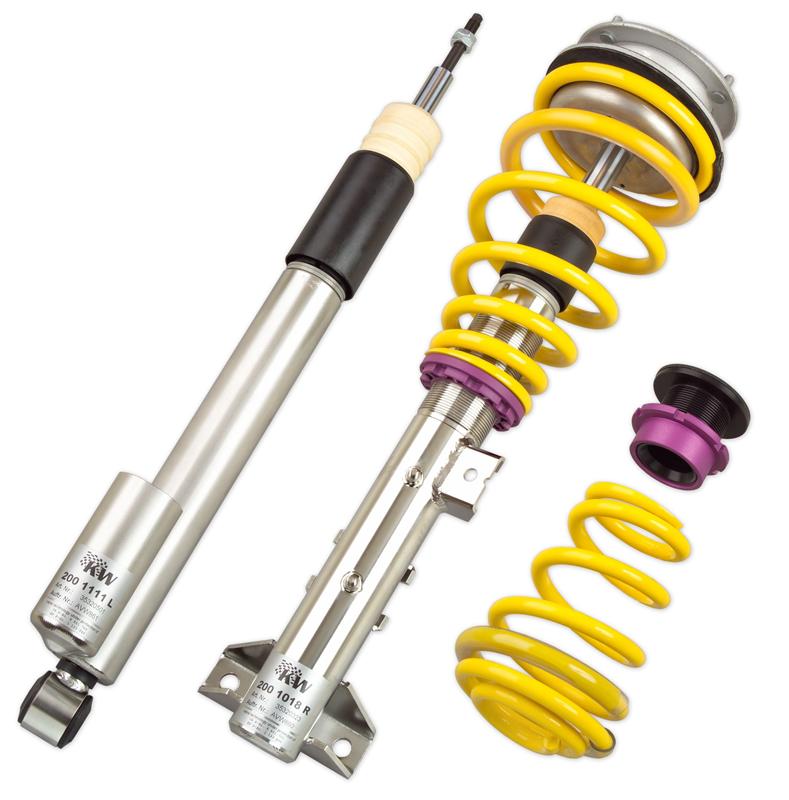

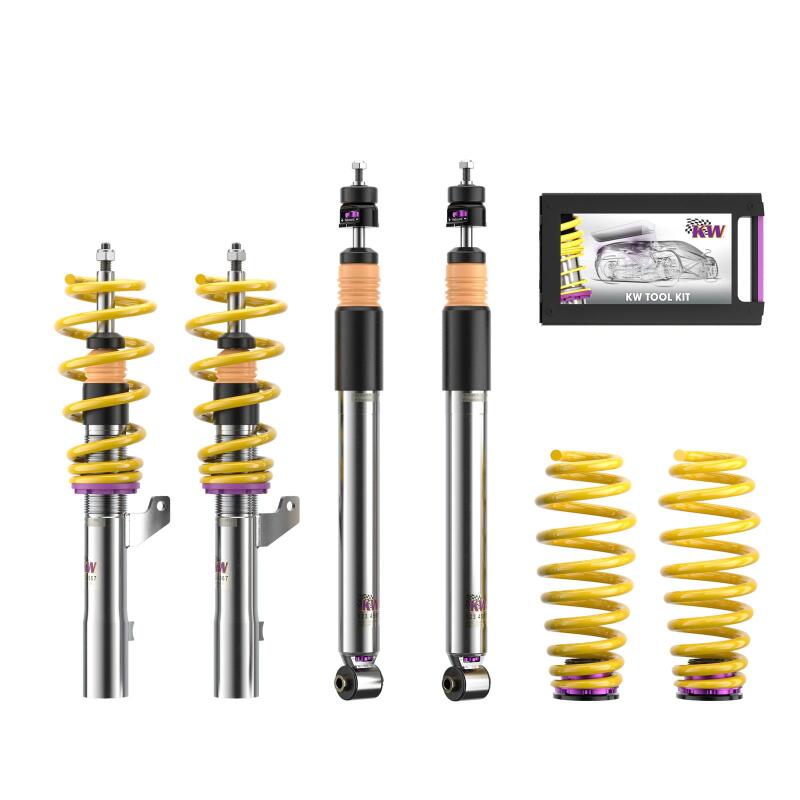

KW V3 is built around independent low-speed rebound and compression adjustment. KW's current V3 architecture provides 16 rebound clicks and 12 compression clicks, giving an enthusiast meaningful control over chassis support, response and ride without moving into a dedicated motorsport damper. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V3 for This Application?
Choose the V3 when the car needs a broader operating window. Independent rebound and compression control makes it easier to balance ride, platform support and tire contact as the build moves between street use and more demanding driving.
Key Features
- 16-click low-speed rebound adjustment
- 12-click low-speed compression adjustment
- Independent rebound and compression tuning
- Continuously adjustable ride height within the application-specific range
Vehicle Fitment
- Make: Audi
- Application: Q5 (8R) with electronic dampers
- Configuration: models; all engines; (bundle incl. magnetic ride cancellation unit)
- KW Jobber Model Years: 09-17
- KW Part Number: 35210103
Technical Specifications
- Front Height Adjustment: 40-80 mm (1.6-3.1 in)
- Rear Height Adjustment: 45-85 mm (1.8-3.3 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
- Front Axle Weight Limit: 1221-1325 kg (KW jobber value)
- Rear Axle Weight Limit: -1360 kg (KW jobber value)
Enthusiast Setup Perspective
This setup makes the most sense when the suspension is being treated as part of a complete package. Final ride height, alignment, tire choice and available bump travel should be considered together rather than setting the car as low as possible. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 10: For V2, V3 & Street Comfort coilovers, front shock absorbers need to be removed from the car for adjustment of stiffness
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
