Description

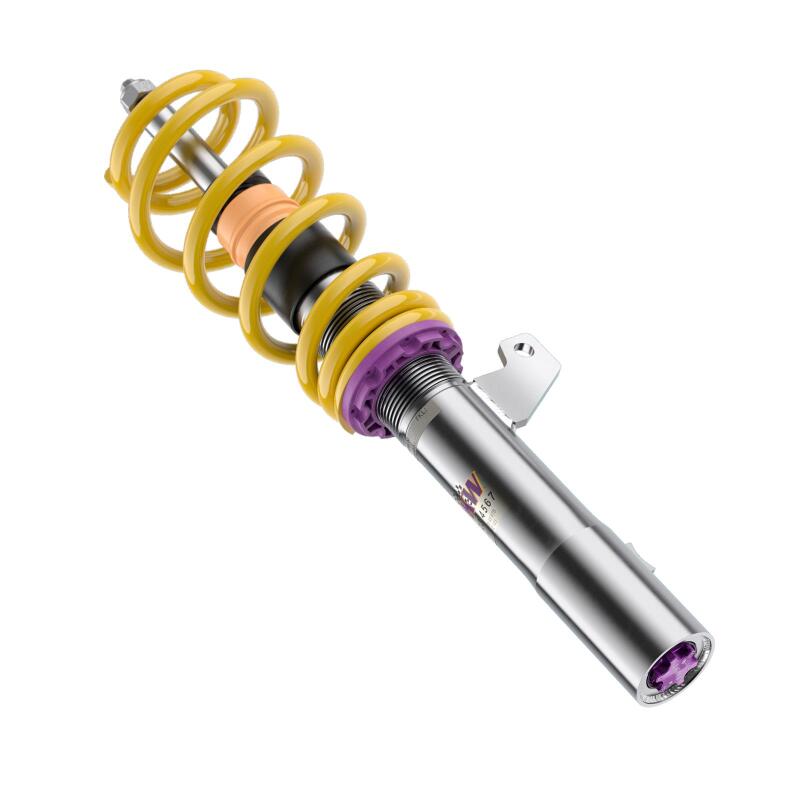

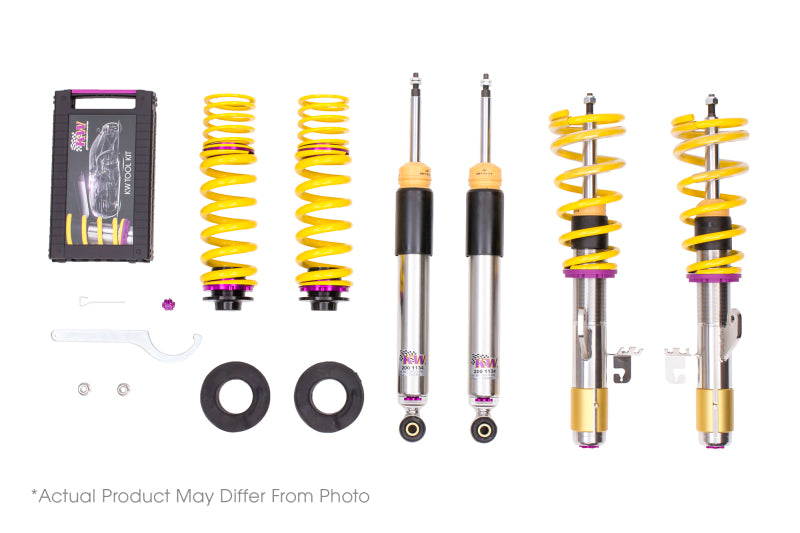

KW V3 Coilovers – 2021+ Audi Q4 (FZ)/Volkswagen ID.4 (Non-DCC, 2WD) is built for the enthusiast who wants the suspension to become a functional part of the chassis setup, not simply a visual drop.
KW V3 is built around independent low-speed rebound and compression adjustment. KW's current V3 architecture provides 16 rebound clicks and 12 compression clicks, giving an enthusiast meaningful control over chassis support, response and ride without moving into a dedicated motorsport damper. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V3 for This Application?
Choose the V3 when the car needs a broader operating window. Independent rebound and compression control makes it easier to balance ride, platform support and tire contact as the build moves between street use and more demanding driving.
Key Features
- 16-click low-speed rebound adjustment
- 12-click low-speed compression adjustment
- Independent rebound and compression tuning
- Continuously adjustable ride height within the application-specific range
Vehicle Fitment
- Make: Audi
- Application: Q4 (FZ) without electronic dampers
- Configuration: 2WD, Sportback e-Tron
- KW Jobber Model Years: 2022+
- KW Part Number: 35282032
Technical Specifications
- Front Height Adjustment: 30-50 mm (1.2-2.0 in)
- Rear Height Adjustment: 30-50 mm (1.2-2.0 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
- Front Axle Weight Limit: -1200 kg (KW jobber value)
- Rear Axle Weight Limit: -1540 kg (KW jobber value)
Enthusiast Setup Perspective
For mixed street and performance use, start from KW's baseline settings and make changes one variable at a time. That gives the driver a repeatable way to separate genuine setup improvement from simple changes in ride feel. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- KW Note 422: At a driving speed between 70 – 110km/h with a lowered car of +30mm, slight vibrations can be recognized eventually, due to kinematic of axle construction. Solution in such cases = to reduce lowering, if perception of vibrations are on a disturbing level
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
