Description

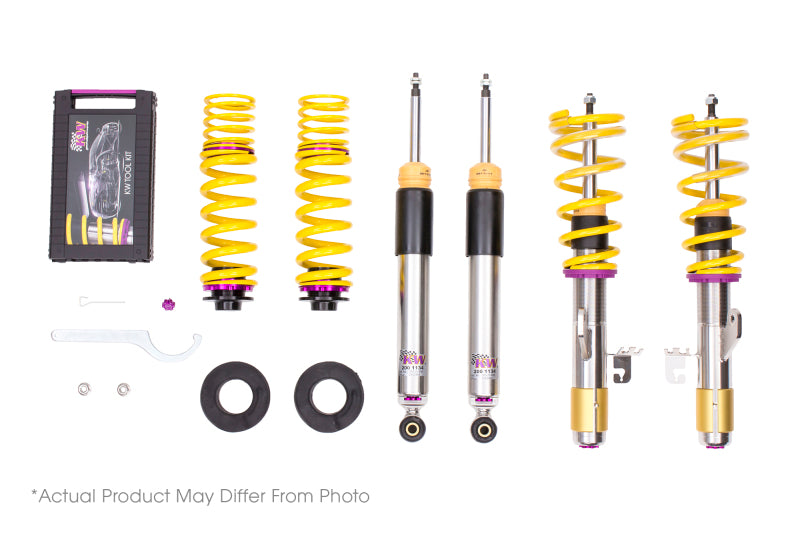

KW V3 Coilovers – 1994–1995 Audi RS2 (P1 | AWD) is built for the enthusiast who wants the suspension to become a functional part of the chassis setup, not simply a visual drop.
KW V3 is built around independent low-speed rebound and compression adjustment. KW's current V3 architecture provides 16 rebound clicks and 12 compression clicks, giving an enthusiast meaningful control over chassis support, response and ride without moving into a dedicated motorsport damper. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V3 for This Application?
Choose the V3 when the car needs a broader operating window. Independent rebound and compression control makes it easier to balance ride, platform support and tire contact as the build moves between street use and more demanding driving.
Key Features
- 16-click low-speed rebound adjustment
- 12-click low-speed compression adjustment
- Independent rebound and compression tuning
- Continuously adjustable ride height within the application-specific range
Vehicle Fitment
- Make: Audi
- Application: RS2 (P1)
- Configuration: Avant; AWD
- KW Jobber Model Years: 94-95
- KW Part Number: 35210017
Technical Specifications
- Front Height Adjustment: 30-60 mm (1.2-2.4 in)
- Rear Height Adjustment: 30-60 mm (1.2-2.4 in)
- Front Spring Rate: 400 lb/in
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
- Front Axle Weight Limit: -1100 kg (KW jobber value)
- Rear Axle Weight Limit: -1110 kg (KW jobber value)
Enthusiast Setup Perspective
The tuning opportunity is greatest when the car has already moved beyond basic cosmetic modification. As grip and braking capability increase, damper control becomes progressively more important to keeping the chassis predictable. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
- KW Note 6: When using original tires, wheel offset spacers may be required
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
