Description
On the 2018+ Tesla Model 3/Model Y (4WD, Performance), KW V3 Leveling is best approached as a chassis-tuning upgrade first and a ride-height change second.
KW V3 Leveling uses the V3 concept to address vehicles where the goal is controlled stance correction and chassis support rather than aggressive lowering alone. Independent damping adjustment allows the owner to refine the setup around load, tire and road conditions. The platform's mass and immediate power delivery make disciplined body and wheel control especially important when the car is driven hard.
Why Choose the KW V3 Leveling for This Application?
Choose V3 Leveling when correcting stance and controlling the vehicle under load are equally important. It offers more setup authority than a simple leveling spring or spacer approach.
Key Features
- Application-specific height adjustment for leveling
- Independent rebound and compression tuning

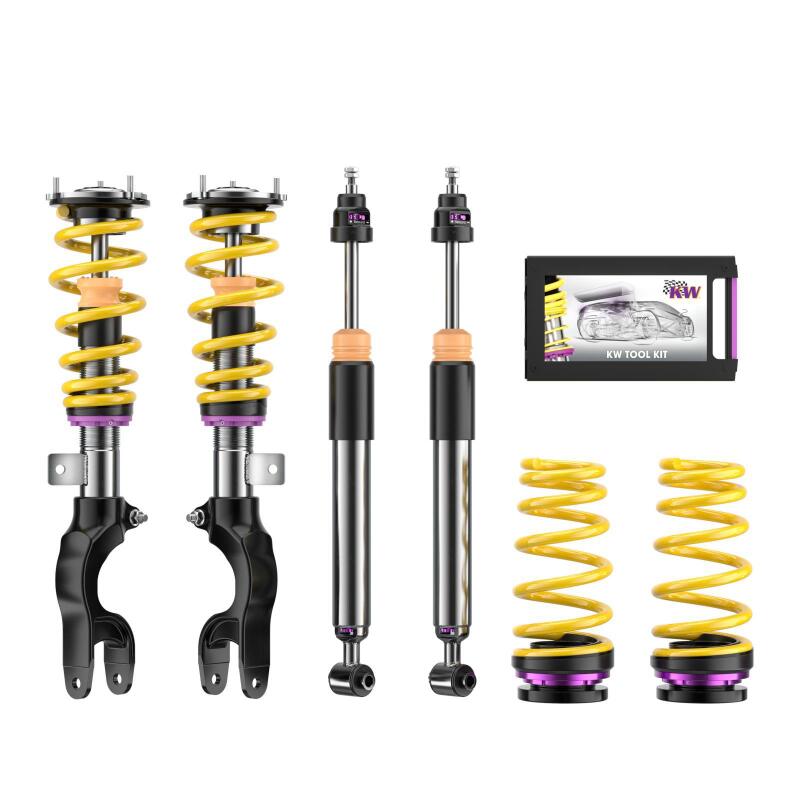

- Matched spring and damper package
- Suitable for drivers who want stance correction with real damping control
Vehicle Fitment
- Make: Tesla
- Catalog Application: 2018+ Tesla Model 3/Model Y (4WD, Performance)
- Configuration: 4WD incl Performance
- KW Jobber Model Years: 2018+
- KW Part Number: 3520887010
Technical Specifications
- Front Height Adjustment: +5 to -20 mm (+0.2 to -0.8 in)
- Rear Height Adjustment: +5 to -20 mm (+0.2 to -0.8 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
This setup makes the most sense when the suspension is being treated as part of a complete package. Final ride height, alignment, tire choice and available bump travel should be considered together rather than setting the car as low as possible.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
