Description

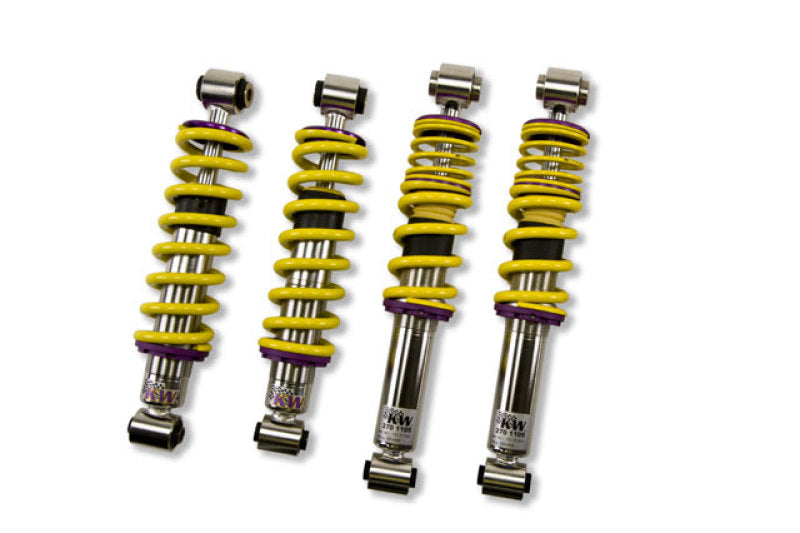

KW V2 Coilovers – 1994–1996 Dodge Viper (SR/RT/10) is built for the enthusiast who wants the suspension to become a functional part of the chassis setup, not simply a visual drop.
KW V2 adds low-speed rebound adjustment to the core KW street coilover concept. KW's current V2 technology uses a 16-click rebound adjuster, allowing the driver to influence how firmly the chassis is supported as the suspension extends after a compression event. On a performance-focused chassis like this, suspension tuning becomes increasingly valuable as tire grip, alignment and braking capability are raised.
Why Choose the KW V2 for This Application?
Choose the V2 when ride height alone is not enough and you want direct control over rebound. Rebound tuning can be used to influence how quickly the chassis settles after compression and how firmly the body is tied down through transitions.
Key Features
- 16-click low-speed rebound adjustment
- Continuously adjustable ride height within the application-specific range
- Application-developed spring and damper package
- Useful tuning range for street, canyon and fast-road setups
Vehicle Fitment
- Make: Dodge
- Application: Viper (SR, RT/10)
- Configuration: with rear eye mounts
- KW Jobber Model Years: 94-96
- KW Part Number: 15227014
Technical Specifications
- Front Height Adjustment: 20-40 mm (0.8-1.5 in)
- Rear Height Adjustment: 20-40 mm (0.8-1.5 in)
- Front Spring Rate: 515 lb/in
- Rear Spring Rate: 855 lb/in
Enthusiast Setup Perspective
The tuning opportunity is greatest when the car has already moved beyond basic cosmetic modification. As grip and braking capability increase, damper control becomes progressively more important to keeping the chassis predictable. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
