Description
On the 2012–2019 Volkswagen Beetle (16), KW V1 is best approached as a chassis-tuning upgrade first and a ride-height change second.

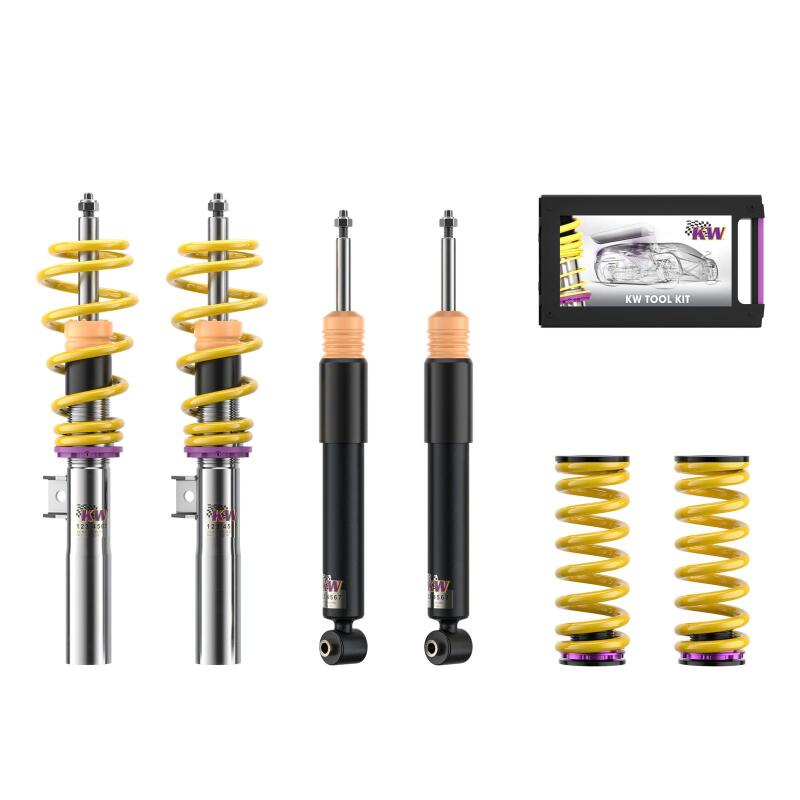

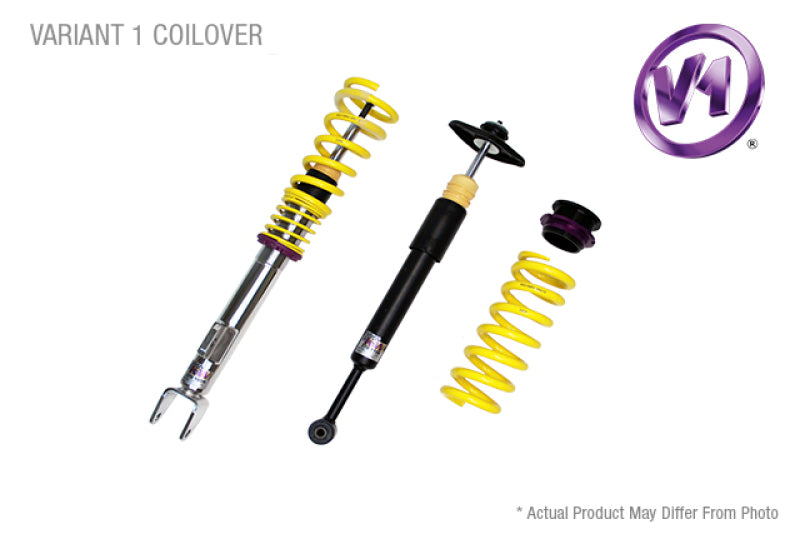

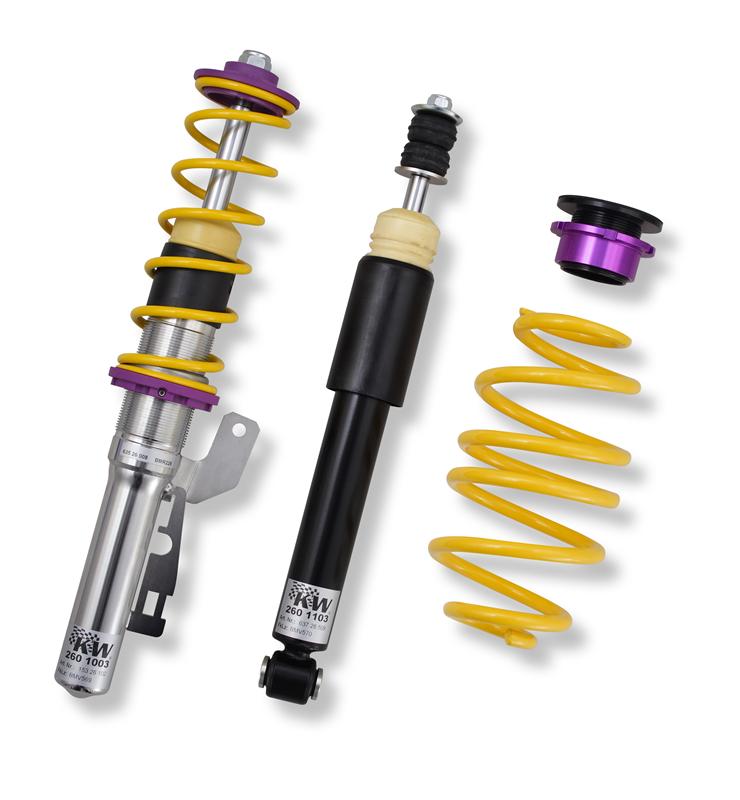

KW V1 combines threaded ride-height adjustment with an application-specific, factory-set damper calibration. It is intended for drivers who want the response and stance benefits of a complete coilover without external damping controls. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V1 for This Application?
Choose the V1 when you want a complete KW coilover and adjustable stance but prefer KW to define the damper calibration. It is the simplest route into the KW coilover range and avoids adding setup decisions the car may not need.
Key Features
- Continuously adjustable ride height within the application-specific range
- Preset KW damping developed for the vehicle application
- Stainless-steel KW coilover construction on applicable strut assemblies
- No rebound or compression tuning required after installation
Vehicle Fitment
- Make: Volkswagen
- Catalog Application: 2012–2019 Volkswagen Beetle (16)
- Configuration: Hatchback, 2.0 Turbo
- KW Jobber Model Years: 12-13
- KW Part Number: 1028000B
Technical Specifications
- Front Height Adjustment: 30-60 mm (1.2-2.4 in)
- Rear Height Adjustment: 45-65 mm (1.8-2.6 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
This setup makes the most sense when the suspension is being treated as part of a complete package. Final ride height, alignment, tire choice and available bump travel should be considered together rather than setting the car as low as possible. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 57: Only for cars with a clamp diameter of 54,6 mm on the front axle
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
