Description
KW V1 targets owners of the 1999–2009 Volvo S60 (H/R)/S80 (T) (2WD) who want a suspension package selected around the vehicle application rather than a generic spring-and-damper combination.

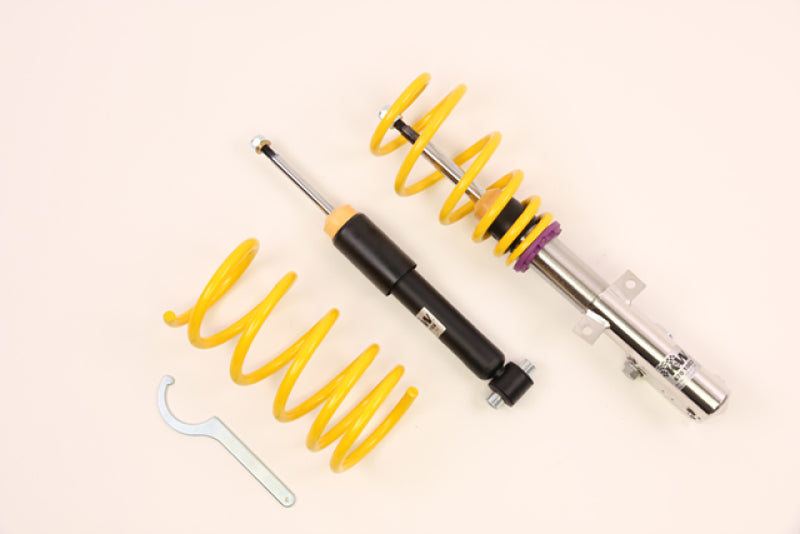

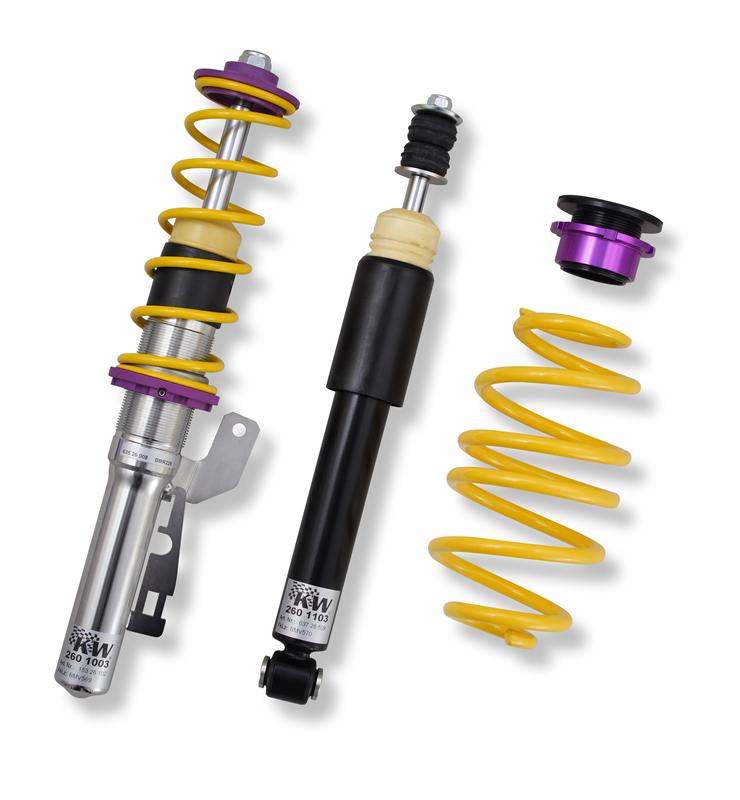

KW V1 combines threaded ride-height adjustment with an application-specific, factory-set damper calibration. It is intended for drivers who want the response and stance benefits of a complete coilover without external damping controls. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V1 for This Application?
Choose the V1 when you want a complete KW coilover and adjustable stance but prefer KW to define the damper calibration. It is the simplest route into the KW coilover range and avoids adding setup decisions the car may not need.
Key Features
- Continuously adjustable ride height within the application-specific range
- Preset KW damping developed for the vehicle application
- Stainless-steel KW coilover construction on applicable strut assemblies
- No rebound or compression tuning required after installation
Vehicle Fitment
- Make: Volvo
- Application: S60 (H/R) 2WD
- KW Jobber Model Years: 00-09
- KW Part Number: 10267007
Technical Specifications
- Front Height Adjustment: 35-65 mm (1.4-2.5 in)
- Rear Height Adjustment: ca.40 mm (1.5 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
The tuning opportunity is greatest when the car has already moved beyond basic cosmetic modification. As grip and braking capability increase, damper control becomes progressively more important to keeping the chassis predictable. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 3: Only height adjustable on the front axle (threaded strut housings, springs + dampers for the rear axle)
- KW Note 59: The following part has to be used for cars which have the standard rear axle self levelling system: Volvo rear axle top mount # 306 66 271 has to be used.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
