Description

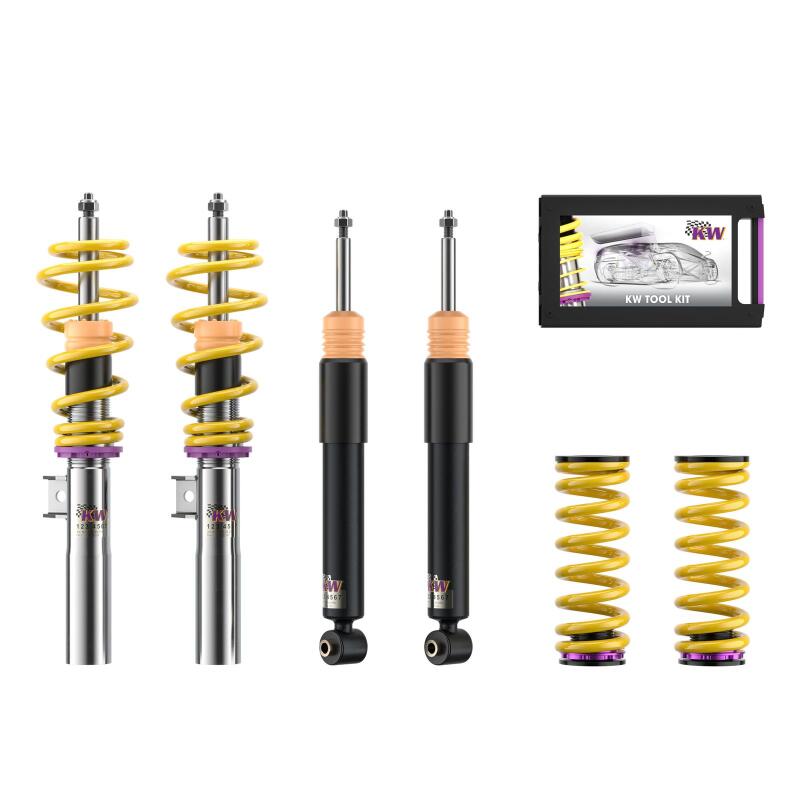

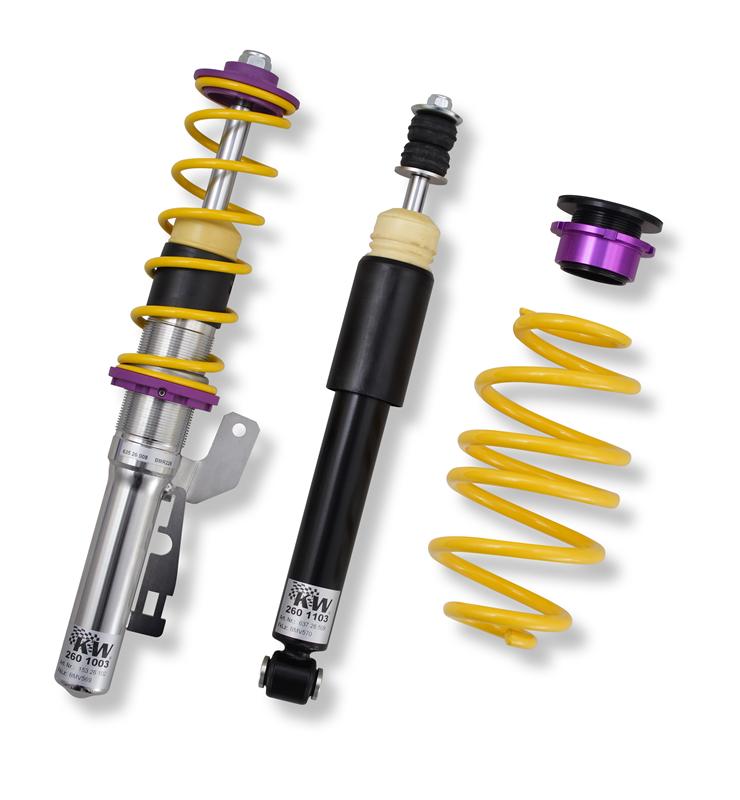

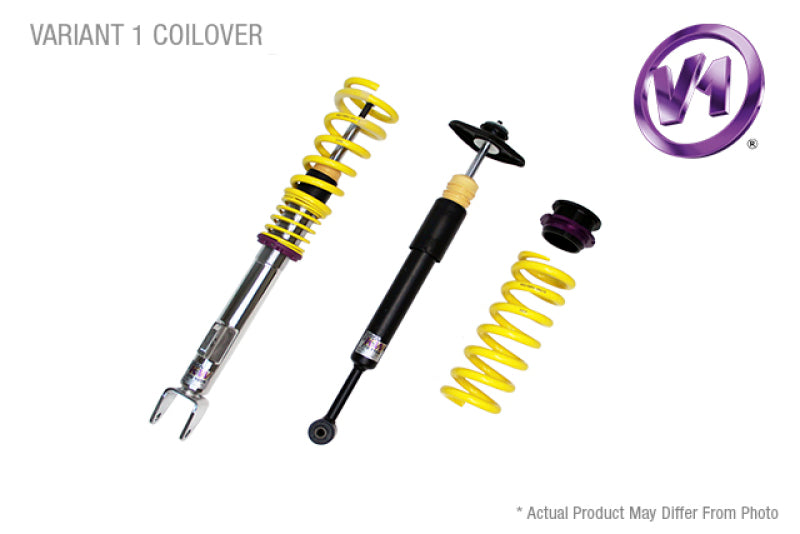

KW V1 Coilovers – 2004–2011 Volvo S40/V50 (M) (2WD) is built for the enthusiast who wants the suspension to become a functional part of the chassis setup, not simply a visual drop.
KW V5 uses independent low- and high-speed adjustment in both rebound and compression, giving an experienced tuner much finer control over body motion and wheel control. KW positions the V5 as a premium road-performance system that brings motorsport-derived damper architecture into a street-capable package. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V5 for This Application?
Choose the V5 when you want four-way damper authority without moving to a pure race-only package. It gives an experienced tuner the tools to separate chassis-motion control from faster wheel movement in both compression and rebound.
Key Features
- Low- and high-speed rebound adjustment
- Low- and high-speed compression adjustment
- Low-pressure gas damper technology designed for precise response
- Application-specific ride-height adjustment
Vehicle Fitment
- Make: Volvo
- Application: S40/V50 (M) 2WD
- KW Jobber Model Years: 04-11
- KW Part Number: 10267011
Technical Specifications
- Front Height Adjustment: 25-55 mm (0.9-2.1 in)
- Rear Height Adjustment: 25-55 mm (0.9-2.1 in)
- Front Spring Rate: 285 lb/in
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
