Description

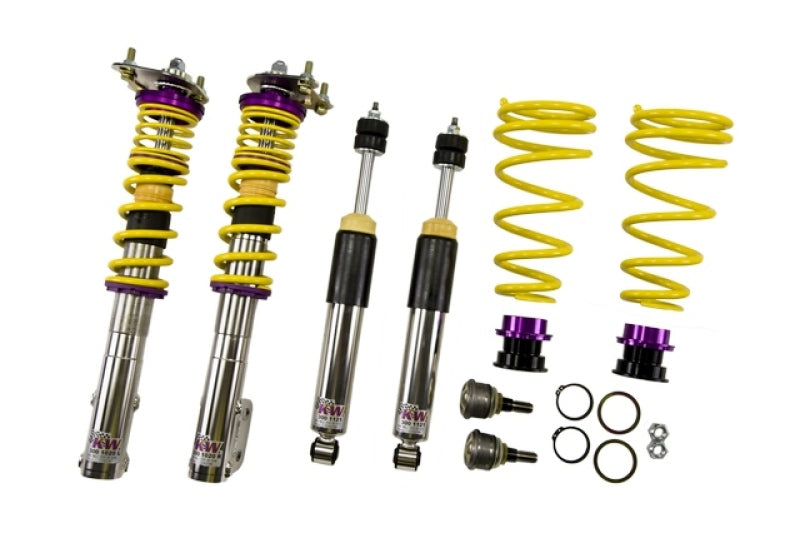

For a 1994–1998 Ford Mustang (SN-95) being developed beyond stock suspension behavior, KW V1 provides a more deliberate foundation for ride height, body control and tire management.
KW V1 combines threaded ride-height adjustment with an application-specific, factory-set damper calibration. It is intended for drivers who want the response and stance benefits of a complete coilover without external damping controls. On a performance-focused chassis like this, suspension tuning becomes increasingly valuable as tire grip, alignment and braking capability are raised.
Why Choose the KW V1 for This Application?
Choose the V1 when you want a complete KW coilover and adjustable stance but prefer KW to define the damper calibration. It is the simplest route into the KW coilover range and avoids adding setup decisions the car may not need.
Key Features
- Continuously adjustable ride height within the application-specific range
- Preset KW damping developed for the vehicle application
- Stainless-steel KW coilover construction on applicable strut assemblies
- No rebound or compression tuning required after installation
Vehicle Fitment
- Make: Ford
- Catalog Application: 1994–1998 Ford Mustang (SN-95)
- Configuration: front and rear suspension
- KW Jobber Model Years: 94-98
- KW Part Number: 10230032
Technical Specifications
- Front Height Adjustment: 35-65 mm (1.4-2.5 in)
- Rear Height Adjustment: 25-55 mm (0.9-2.1 in)
- Front Spring Rate: 400 lb/in
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
