Description

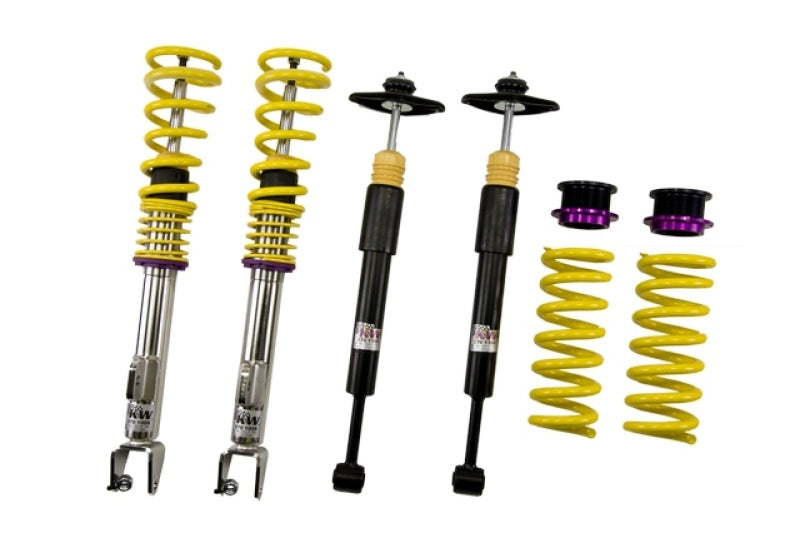

KW V1 targets owners of the 2006–2010 Dodge Challenger/Charger (RWD, V6) who want a suspension package selected around the vehicle application rather than a generic spring-and-damper combination.
KW V1 combines threaded ride-height adjustment with an application-specific, factory-set damper calibration. It is intended for drivers who want the response and stance benefits of a complete coilover without external damping controls. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V1 for This Application?
Choose the V1 when you want a complete KW coilover and adjustable stance but prefer KW to define the damper calibration. It is the simplest route into the KW coilover range and avoids adding setup decisions the car may not need.
Key Features
- Continuously adjustable ride height within the application-specific range
- Preset KW damping developed for the vehicle application
- Stainless-steel KW coilover construction on applicable strut assemblies
- No rebound or compression tuning required after installation
Vehicle Fitment
- Make: Dodge
- Application: Challenger
- Configuration: RWD, V6+V8
- KW Jobber Model Years: 06-10
- KW Part Number: 10228006
Technical Specifications
- Front Height Adjustment: 20-50 mm (0.8-2.0 in)
- Rear Height Adjustment: 25-55 mm (0.9-2.1 in)
- Front Spring Rate: 500 lb/in
- Rear Spring Rate: 685 lb/in
Enthusiast Setup Perspective
For mixed street and performance use, start from KW's baseline settings and make changes one variable at a time. That gives the driver a repeatable way to separate genuine setup improvement from simple changes in ride feel. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 28: The standard self levelling shock absorber has to be replaced with the supplied sport shock absorber
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
