Description
The value of KW V3 Clubsport on a 1998–2010 Volkswagen Beetle (PC/VT 9C) is not just the change in stance; it is the ability to place the chassis in a more controlled operating window for the way the car is actually driven.

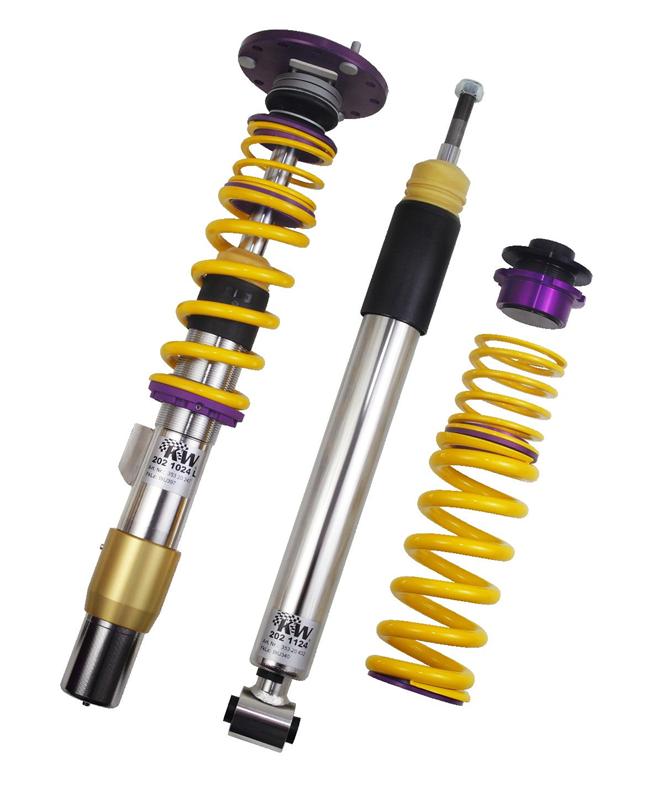

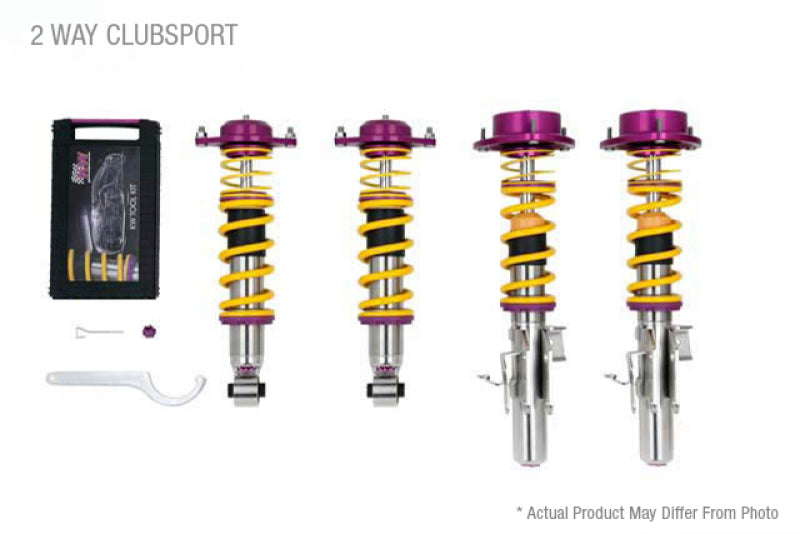

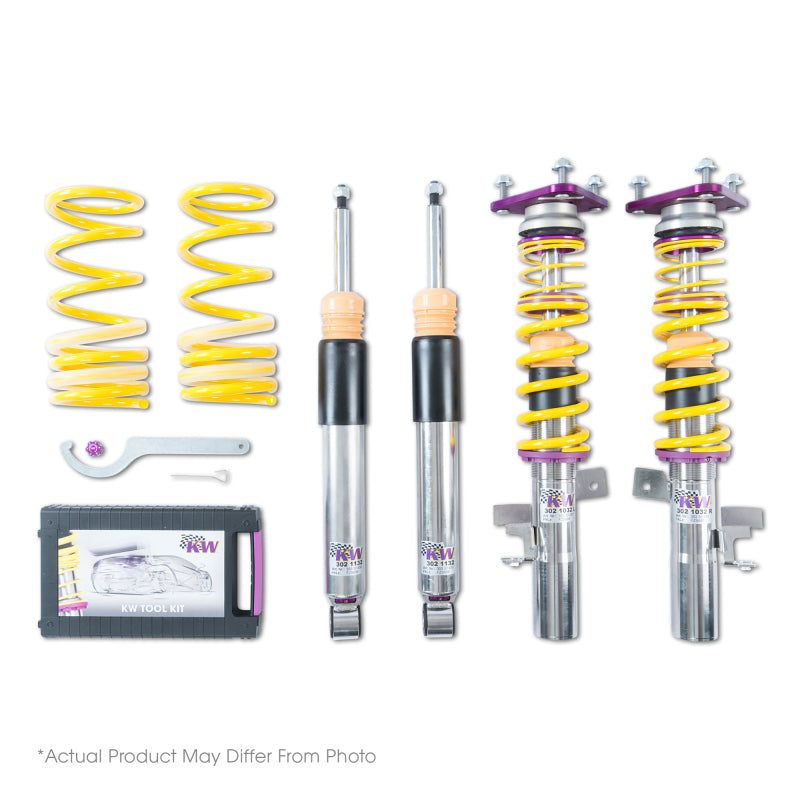

KW V3 Clubsport is developed for enthusiasts who regularly use road-legal cars on track. It combines independent rebound and compression adjustment with firmer, motorsport-oriented spring/damper calibration and application-specific top-mount hardware where specified. The setup should be viewed as a tunable system whose final behavior depends on alignment, tire, ride height and the driver's intended circuit use.
Why Choose the KW V3 Clubsport for This Application?
Choose V3 Clubsport when the vehicle sees meaningful track use and the standard V3's street bias is no longer the main priority. The stronger track focus makes alignment, tire choice and corner balancing more consequential.
Key Features
- Independent rebound and compression adjustment
- Track-focused spring and damper calibration
- Application-specific Clubsport top-mount configuration where supplied
- Height adjustment for road-and-track setup
Vehicle Fitment
- Make: Volkswagen
- Application: Beetle (PC/VT; 9C)
- Configuration: Hatchback & Convertible
- KW Jobber Model Years: 98-10
- KW Part Number: 35280823
Technical Specifications
- Front Height Adjustment: 35-65 mm (1.4-2.5 in)
- Rear Height Adjustment: 35-65 mm (1.4-2.5 in)
- Front Spring Rate: 460 lb/in
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
- Top Mount Configuration: Camber/Caster
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 6: When using original tires, wheel offset spacers may be required
- KW Note 7: When lowering more than 40 mm, the anti-sway bar must be retrofitted. Anti-sway bar conversion set without Xenon headlights: KW Part No. 685 50 000, Price: $299,- Anti-sway bar conversion set for vehicles with Xenon headlights: KW Part No. 685 50 005, Price: $349
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
