Description
KW V3 Clubsport targets owners of the 2005–2018 Audi TT/Audi TTS (8J/A5/1K) who want a suspension package selected around the vehicle application rather than a generic spring-and-damper combination.
KW V3 Clubsport is developed for enthusiasts who regularly use road-legal cars on track. It combines independent rebound and compression adjustment with firmer, motorsport-oriented spring/damper calibration and application-specific top-mount hardware where specified. The setup should be viewed as a tunable system whose final behavior depends on alignment, tire, ride height and the driver's intended circuit use.
Why Choose the KW V3 Clubsport for This Application?
Choose V3 Clubsport when the vehicle sees meaningful track use and the standard V3's street bias is no longer the main priority. The stronger track focus makes alignment, tire choice and corner balancing more consequential.
Key Features

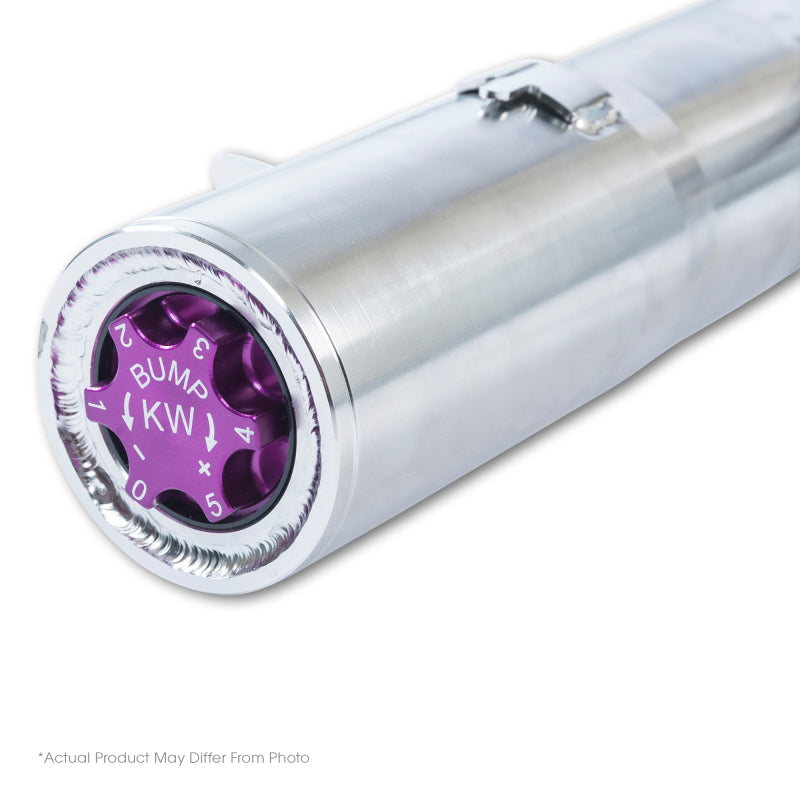

- Independent rebound and compression adjustment
- Track-focused spring and damper calibration

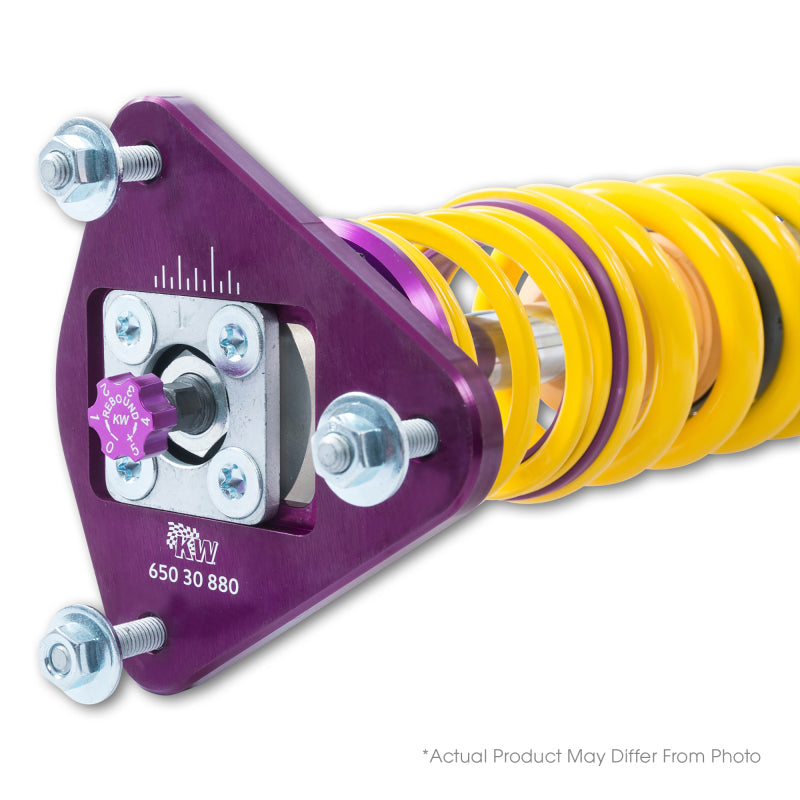

- Application-specific Clubsport top-mount configuration where supplied

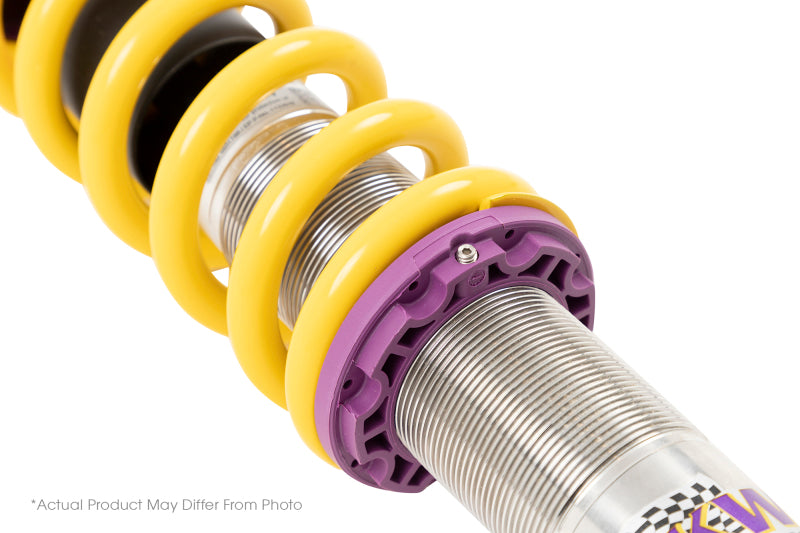

- Height adjustment for road-and-track setup
Vehicle Fitment
- Make: Audi
- Application: TT (8J)
- Configuration: Coupe; FWD; all engines
- KW Jobber Model Years: 07-09
- KW Part Number: 35280842
Technical Specifications
- Front Height Adjustment: 20-50 mm (0.8-2.0 in)
- Rear Height Adjustment: 20-50 mm (0.8-2.0 in)
- Front Spring Rate: 515 lb/in
- Rear Spring Rate: 400 lb/in
- Top Mount Configuration: Camber / OE*
Enthusiast Setup Perspective
This setup makes the most sense when the suspension is being treated as part of a complete package. Final ride height, alignment, tire choice and available bump travel should be considered together rather than setting the car as low as possible. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 6: When using original tires, wheel offset spacers may be required
- KW Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
- KW Note 57: Only for cars with a clamp diameter of 54,6 mm on the front axle
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
