Description

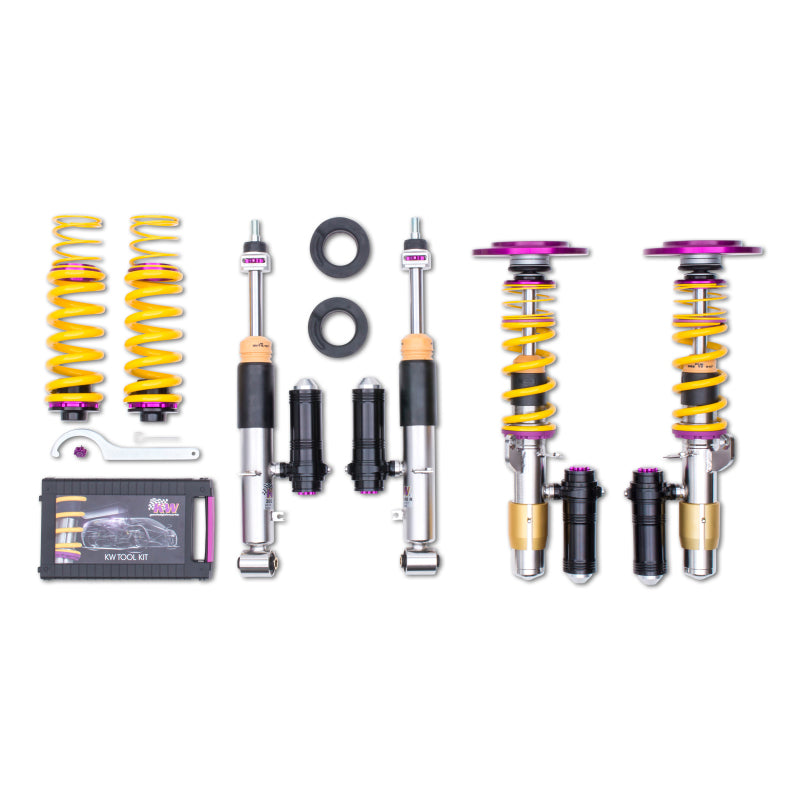

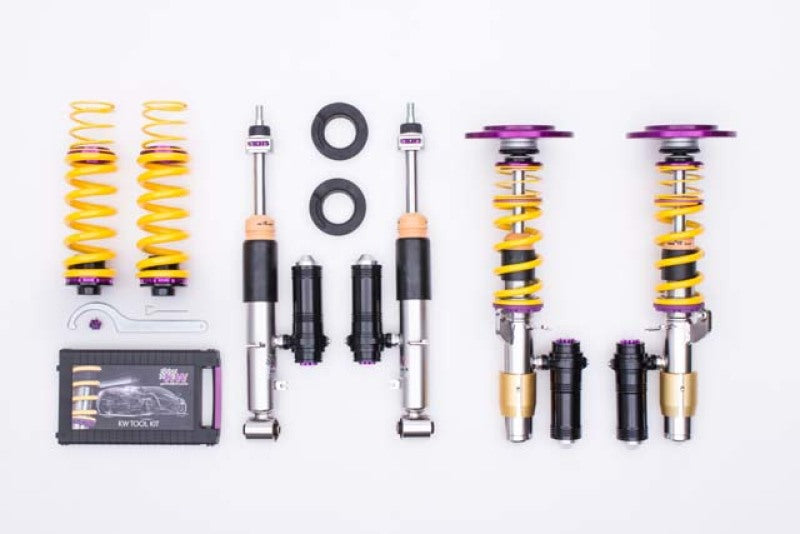

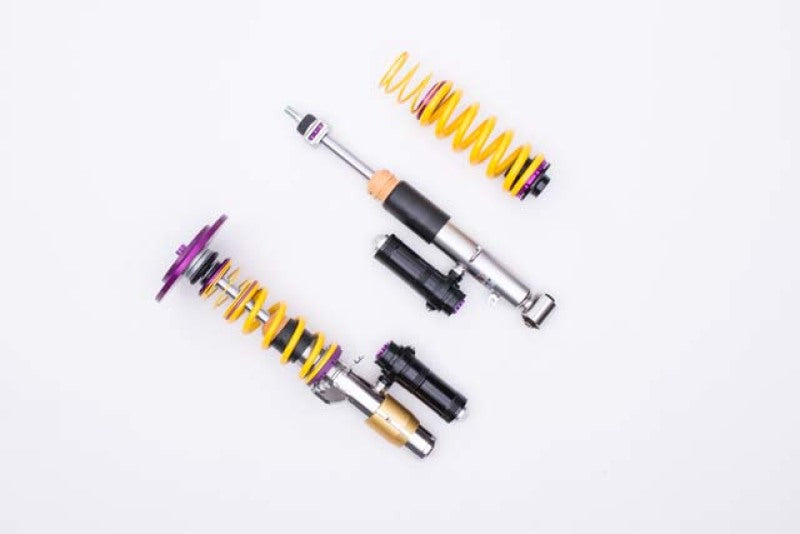

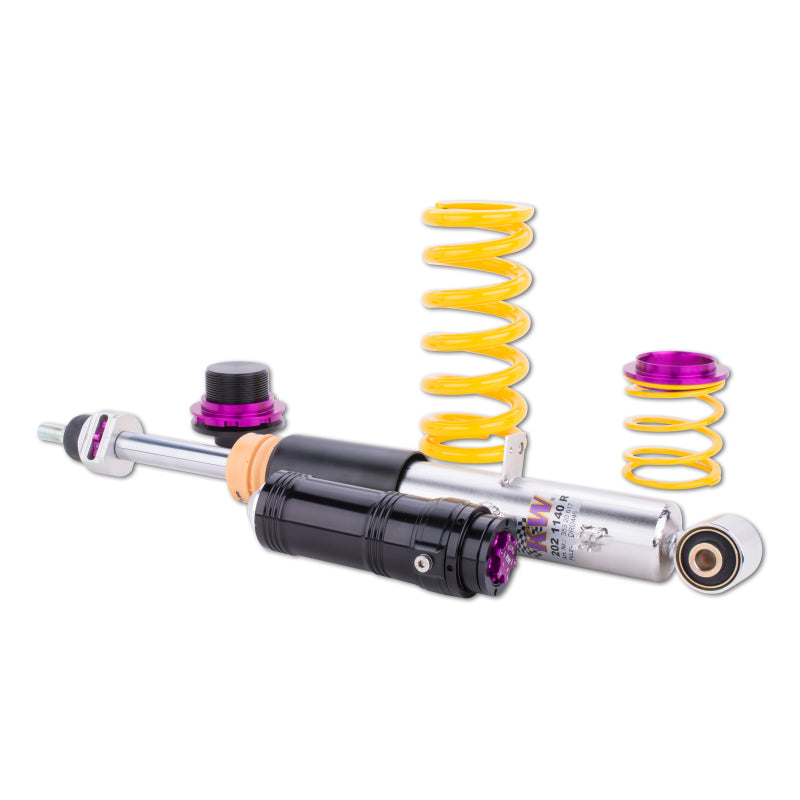

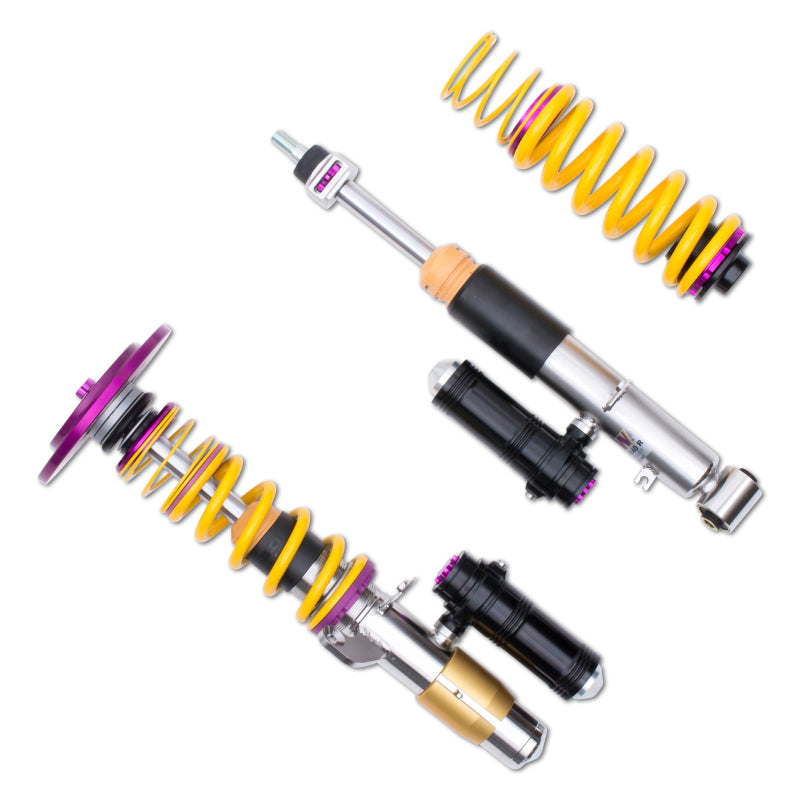

KW V3 Clubsport Coilovers – 2015–2020 BMW M3/M4 (F80/F82 | EDC Cancellation Not Included) is built for the enthusiast who wants the suspension to become a functional part of the chassis setup, not simply a visual drop.
KW V3 Clubsport is developed for enthusiasts who regularly use road-legal cars on track. It combines independent rebound and compression adjustment with firmer, motorsport-oriented spring/damper calibration and application-specific top-mount hardware where specified. The setup should be viewed as a tunable system whose final behavior depends on alignment, tire, ride height and the driver's intended circuit use.
Why Choose the KW V3 Clubsport for This Application?
Choose V3 Clubsport when the vehicle sees meaningful track use and the standard V3's street bias is no longer the main priority. The stronger track focus makes alignment, tire choice and corner balancing more consequential.
Key Features

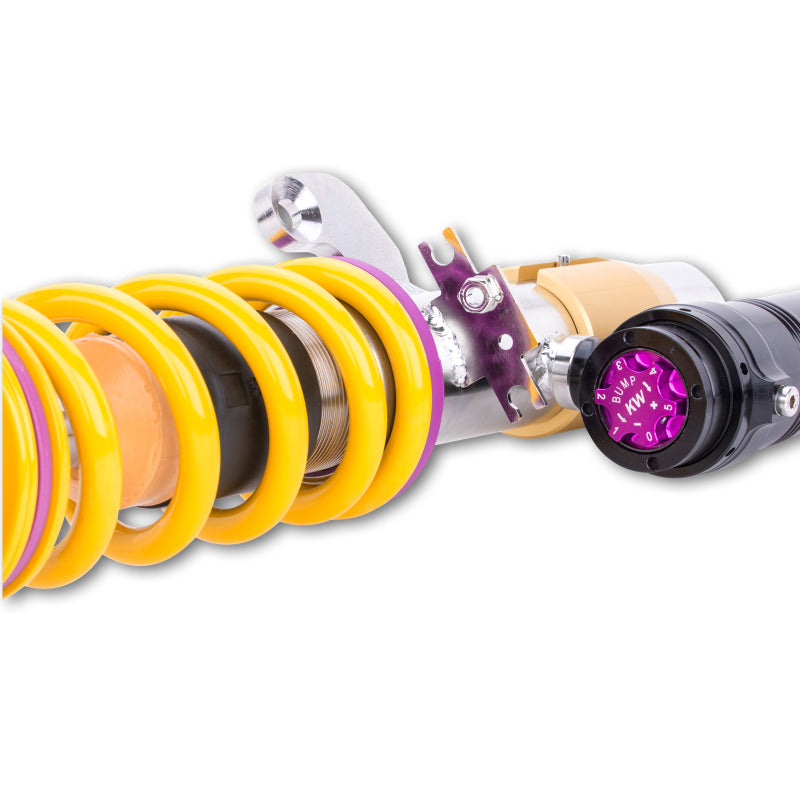

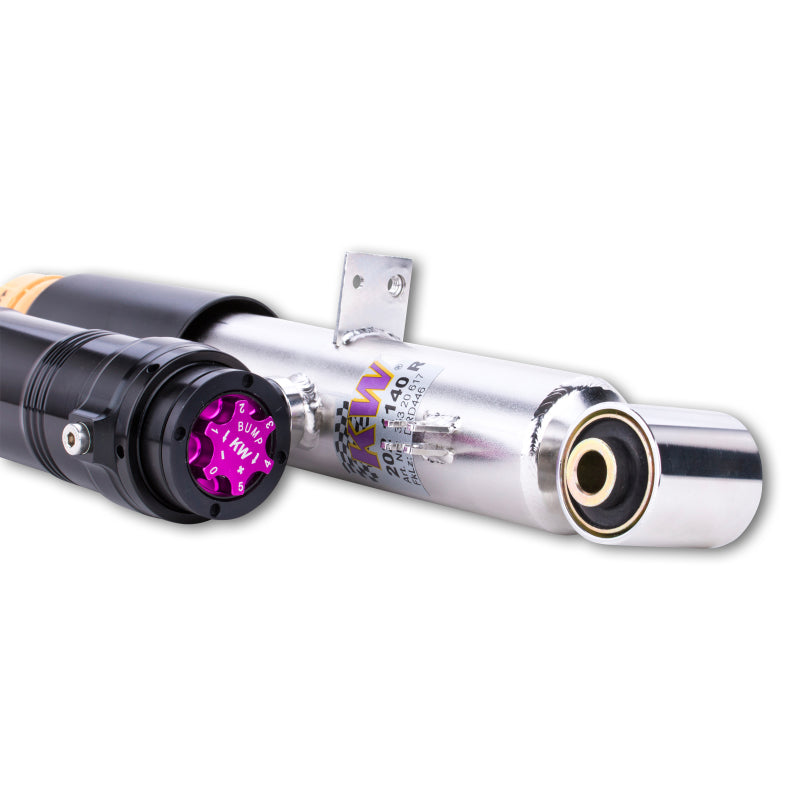

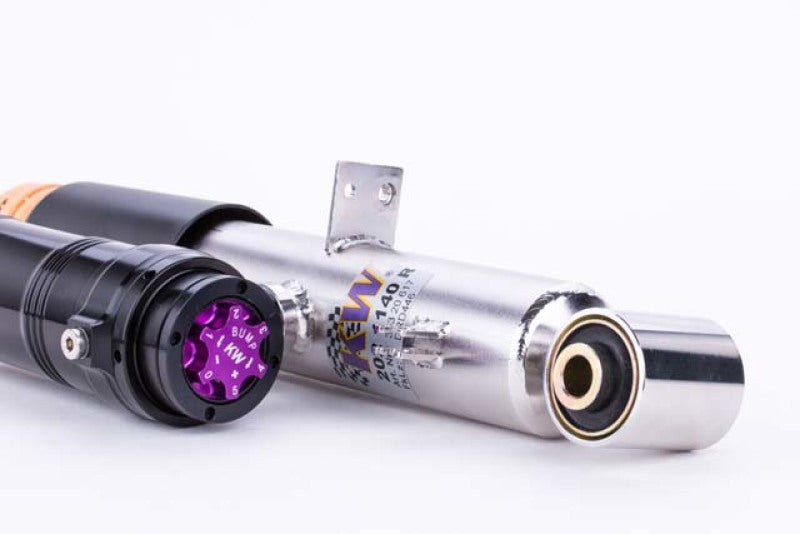

- Independent rebound and compression adjustment
- Track-focused spring and damper calibration

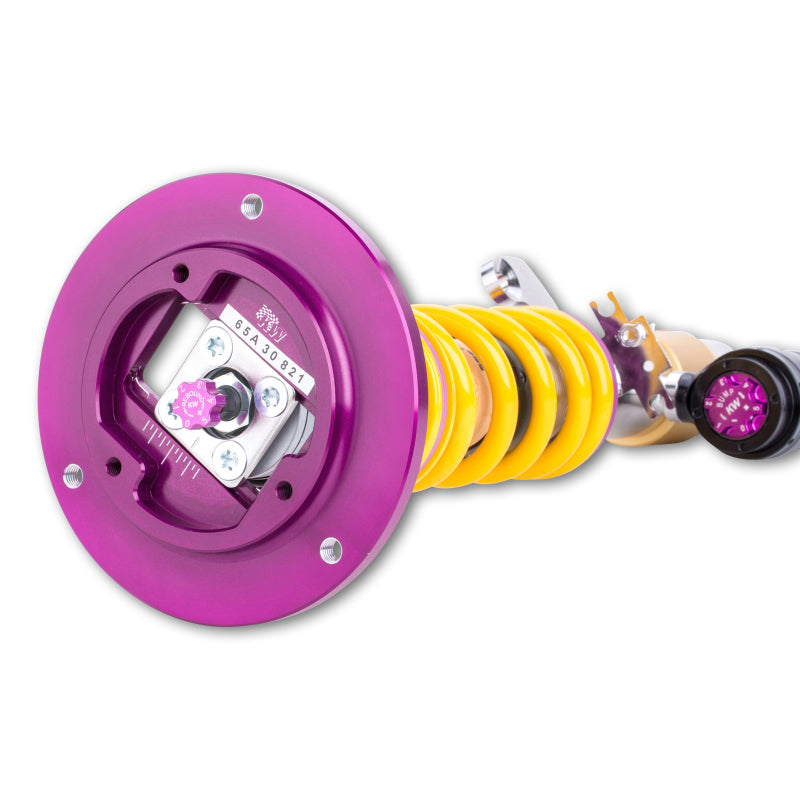

- Application-specific Clubsport top-mount configuration where supplied
- Height adjustment for road-and-track setup
Vehicle Fitment
- Make: BMW
- Application: M3 (F80) (does not include EDC cancellation)
- Configuration: Sedan
- KW Jobber Model Years: 15-18
- KW Part Number: 352208AN
Technical Specifications
- Front Height Adjustment: 15-40 mm (0.6-1.6 in)
- Rear Height Adjustment: 20-45 mm (0.8-1.8 in)
- Front Spring Rate: 457 lb/in
- Rear Spring Rate: 915 lb/in
- Top Mount Configuration: Camber / OE*
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes

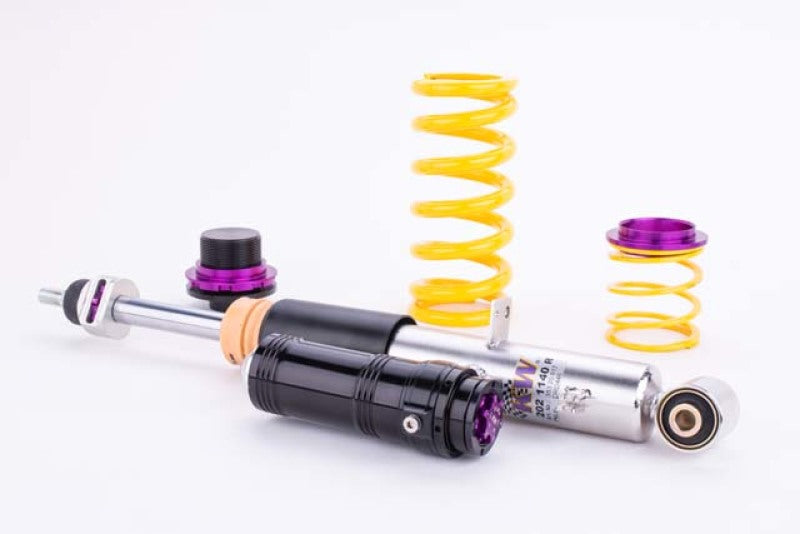

- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list

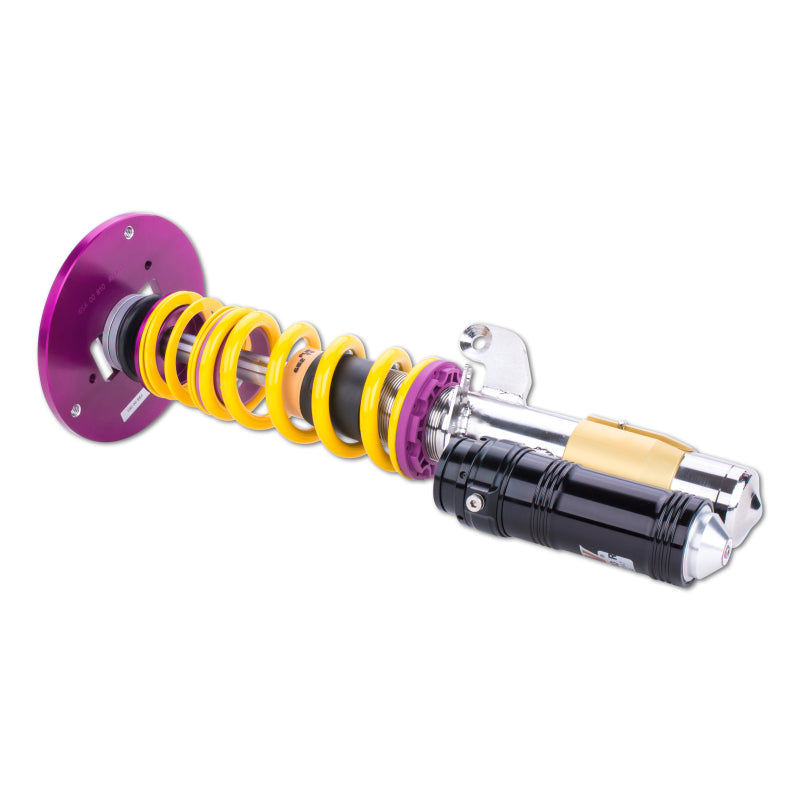

- KW Note 97: Clubsport coilover with top mount: only with front axle top mount available
- KW Note US4: Only for vehicles with (3) bolt top mount on front axle.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
