Description
For a 2019+ Audi RS5 (B9, RS5) | KW 253100CS being developed beyond stock suspension behavior, KW H.A.S. provides a more deliberate foundation for ride height, body control and tire management.

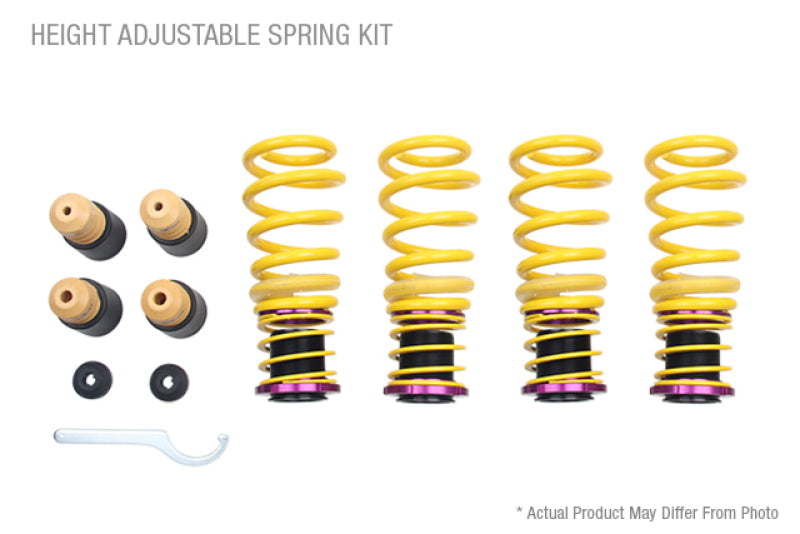

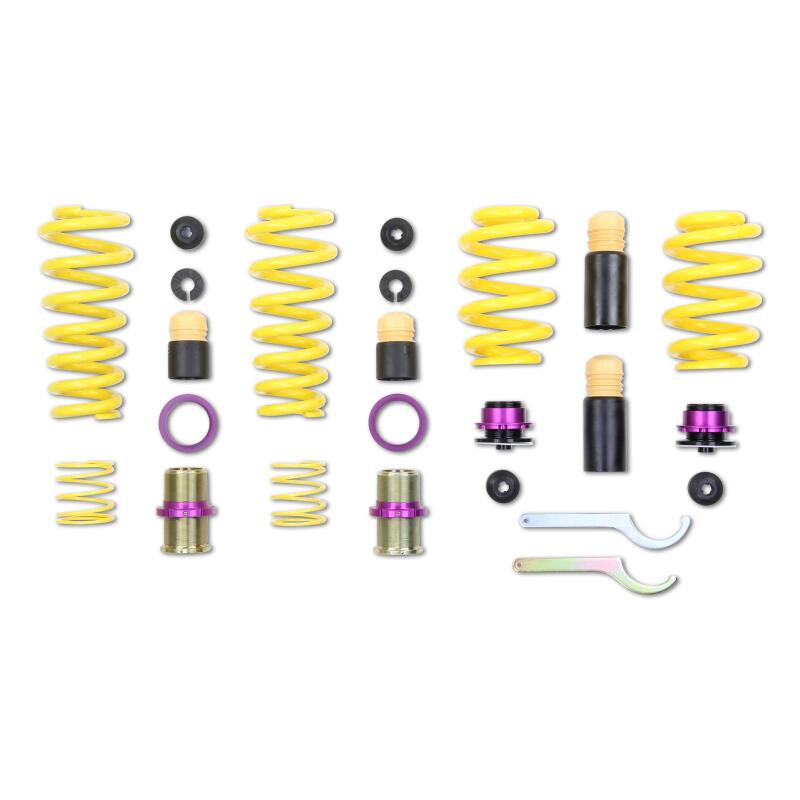

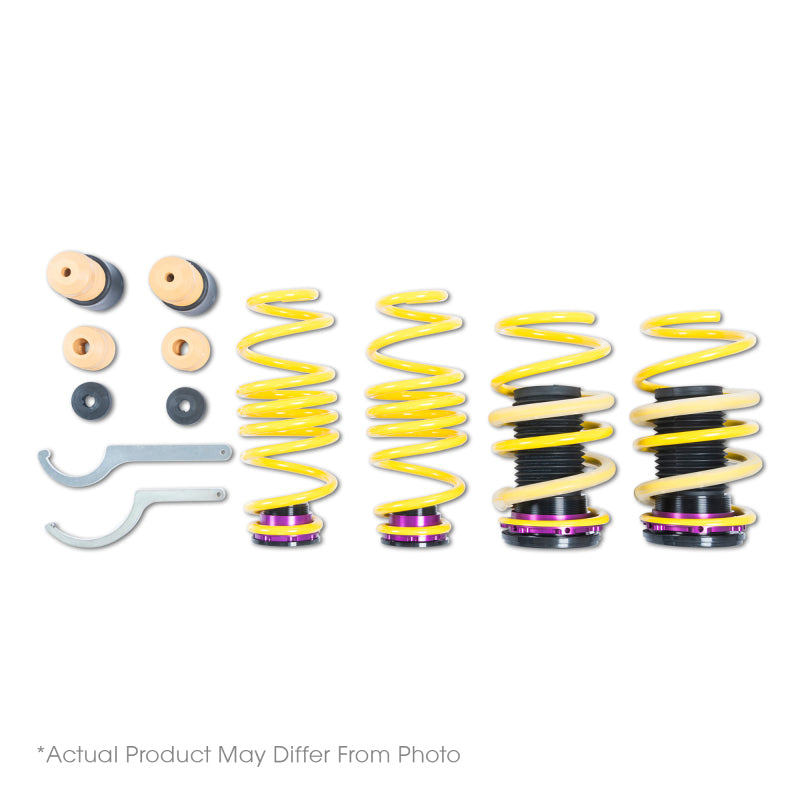

KW H.A.S. uses vehicle-specific springs and threaded height adjusters while retaining compatible factory dampers. It gives the owner a tunable stance rather than the single fixed drop of a conventional lowering spring, while preserving the OE damper architecture where the application is designed to do so. This makes it particularly useful when retaining compatible OE adaptive dampers or factory ride characteristics is part of the build objective.
Why Choose the KW H.A.S. for This Application?
Choose H.A.S. when you want adjustable ride height but do not want to replace compatible factory dampers. It is a more flexible stance solution than a fixed lowering spring and can preserve factory adaptive-damper functionality where KW specifies.
Key Features
- Continuously adjustable spring-perch ride height
- Designed around compatible factory dampers
- Matched KW spring package
- Application-specific bump-stop and dust-protection components where supplied
Vehicle Fitment
- Make: Audi
- Catalog Application: 2019+ Audi RS5 (B9, RS5) | KW 253100CS
- Configuration: Sportback; without DRC
- KW Jobber Model Years: 2019+
- KW Part Number: 253100CS
Technical Specifications
- Front Height Adjustment: 5-25 mm (0.2-1.0 in)
- Rear Height Adjustment: 0-25 mm (0.0-1.0 in)
Enthusiast Setup Perspective
For mixed street and performance use, start from KW's baseline settings and make changes one variable at a time. That gives the driver a repeatable way to separate genuine setup improvement from simple changes in ride feel. For a road-driven car, preserving usable bump travel and sensible alignment is usually more important than using the full available lowering range.
Important KW Fitment Notes
- KW Note 62: Not for vehicles with electronic damping
- KW Note 91: Front and rear height adjustable (front and rear springs with threaded height adjusters). Stock shock absorbers including electronic controls are being utilized.
- KW Note 409: Only for cars with damper diameter 48.5mm (not 50mm) on the front axle; measured at the damper body just below the OE spring seat.
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
