Description
For a 2020+ Ferrari SF90 (F173) | KW 30942028 being developed beyond stock suspension behavior, KW V5 provides a more deliberate foundation for ride height, body control and tire management.
KW V5 uses independent low- and high-speed adjustment in both rebound and compression, giving an experienced tuner much finer control over body motion and wheel control. KW positions the V5 as a premium road-performance system that brings motorsport-derived damper architecture into a street-capable package. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V5 for This Application?
Choose the V5 when you want four-way damper authority without moving to a pure race-only package. It gives an experienced tuner the tools to separate chassis-motion control from faster wheel movement in both compression and rebound.
Key Features

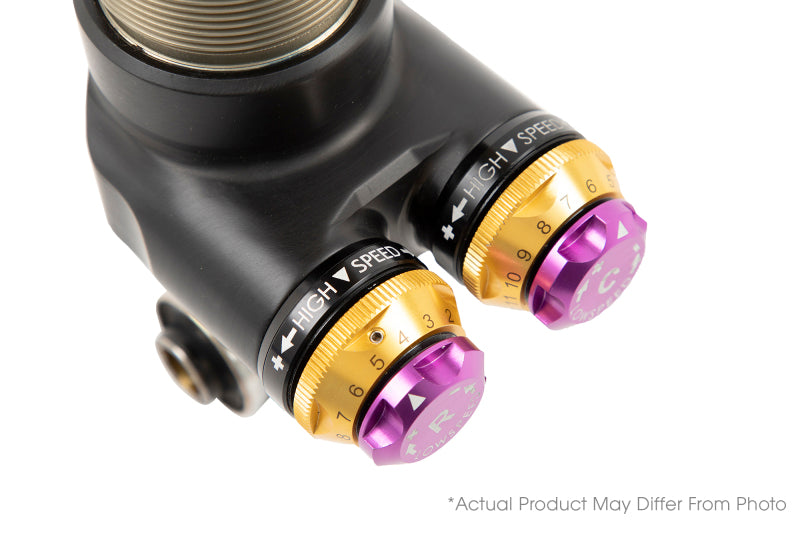

- Low- and high-speed rebound adjustment
- Low- and high-speed compression adjustment
- Low-pressure gas damper technology designed for precise response
- Application-specific ride-height adjustment
Vehicle Fitment
- Make: Ferrari
- Catalog Application: 2020+ Ferrari SF90 (F173) | KW 30942028
- Configuration: Stradale, Spider; except XX models; without OE lift; with electronic dampers
- KW Jobber Model Years: 2020+
- KW Part Number: 30942028
Technical Specifications
- Front Height Adjustment: 15-30 mm (0.6-1.2 in)
- Rear Height Adjustment: 15-30 mm (0.6-1.2 in)
Enthusiast Setup Perspective
A good installation should leave enough travel for the road or circuit being used. Chasing maximum lowering at the expense of bump travel can work against the very grip and control this system is intended to provide. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- KW Note 90: Aluminium suspensions struts
- KW Note 403: Not for cars with original lift system
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
