Description

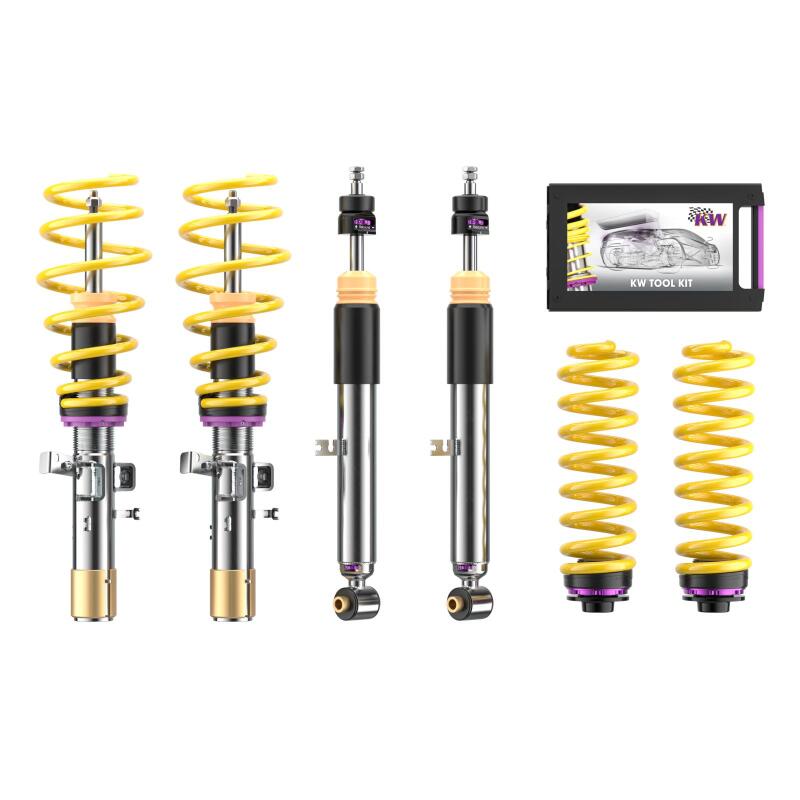

KW V3 Leveling targets owners of the 2016–2022 Mercedes-Benz Metris (W447 | 2WD) who want a suspension package selected around the vehicle application rather than a generic spring-and-damper combination.
KW V3 Leveling uses the V3 concept to address vehicles where the goal is controlled stance correction and chassis support rather than aggressive lowering alone. Independent damping adjustment allows the owner to refine the setup around load, tire and road conditions. The application-specific calibration is intended to give the chassis a more deliberate response than a one-size-fits-all suspension combination.
Why Choose the KW V3 Leveling for This Application?
Choose V3 Leveling when correcting stance and controlling the vehicle under load are equally important. It offers more setup authority than a simple leveling spring or spacer approach.
Key Features
- Application-specific height adjustment for leveling
- Independent rebound and compression tuning
- Matched spring and damper package
- Suitable for drivers who want stance correction with real damping control
Vehicle Fitment
- Make: Mercedes-Benz
- Application: Metris (W447) 2WD
- Configuration: 2WD
- KW Jobber Model Years: 16-22
- KW Part Number: 3520825090
Technical Specifications
- Front Height Adjustment: +5 to -15 mm (+0.2 to -0.6 in)
- Rear Height Adjustment: +10 to -10 mm (+0.4 to -0.4 in)
- Front Spring Rate: Progressive-rate spring (KW jobber designation)
- Rear Spring Rate: Progressive-rate spring (KW jobber designation)
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 8: Not for vehicles with automatic self leveling control
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- KW Note 406: Suitable for vehicles with a wheelbase of up to 126in. / 3,200mm
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
