Description
On the 2013–2017 Dodge Viper (VX) (excl. ACR), KW V5 is best approached as a chassis-tuning upgrade first and a ride-height change second.

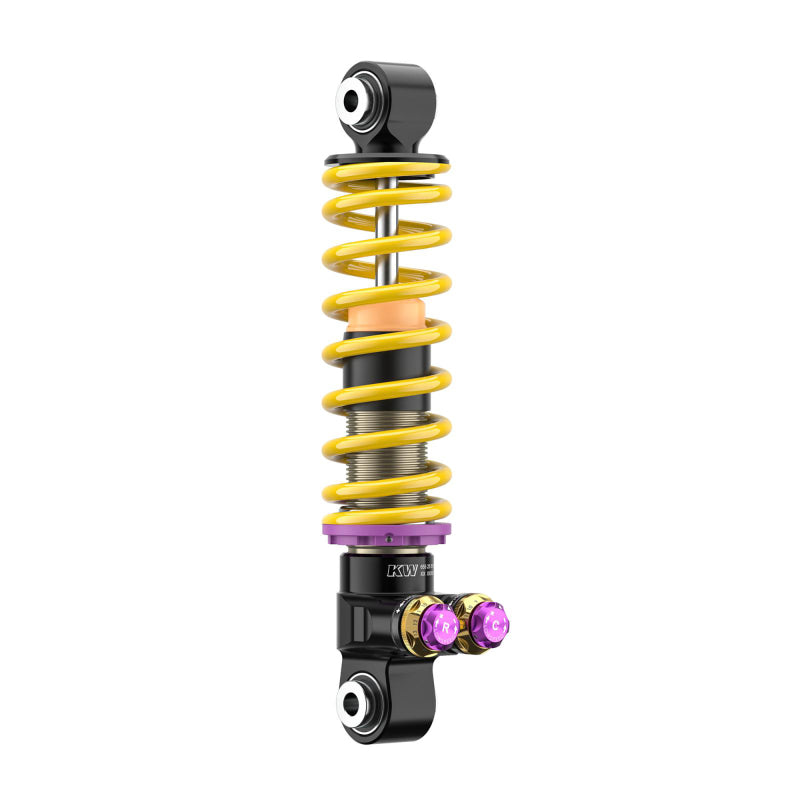

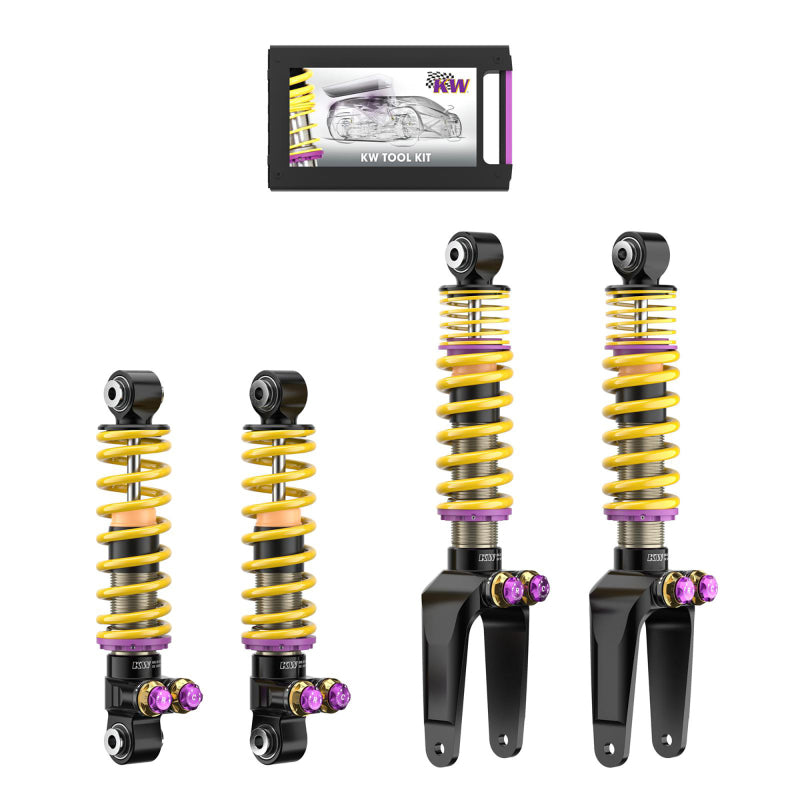

KW V5 uses independent low- and high-speed adjustment in both rebound and compression, giving an experienced tuner much finer control over body motion and wheel control. KW positions the V5 as a premium road-performance system that brings motorsport-derived damper architecture into a street-capable package. On a performance-focused chassis like this, suspension tuning becomes increasingly valuable as tire grip, alignment and braking capability are raised.
Why Choose the KW V5 for This Application?
Choose the V5 when you want four-way damper authority without moving to a pure race-only package. It gives an experienced tuner the tools to separate chassis-motion control from faster wheel movement in both compression and rebound.
Key Features
- Low- and high-speed rebound adjustment
- Low- and high-speed compression adjustment
- Low-pressure gas damper technology designed for precise response
- Application-specific ride-height adjustment
Vehicle Fitment
- Make: Dodge
- Application: Viper (VX)
- Configuration: excl. ACR
- KW Jobber Model Years: 13-17
- KW Part Number: 30928009
Technical Specifications
- Front Height Adjustment: 10-20 mm (0.4-0.8 in)
- Rear Height Adjustment: 5-20 mm (0.2-0.8 in)
- Front Spring Rate: 340 lb/in
- Rear Spring Rate: 745 lb/in
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- KW Note 90: Aluminium suspensions struts
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
