Description
The value of KW V3 Clubsport on a 2012–2020 BMW 3/4 Series (F30/F32 | With EDC, RWD) is not just the change in stance; it is the ability to place the chassis in a more controlled operating window for the way the car is actually driven.

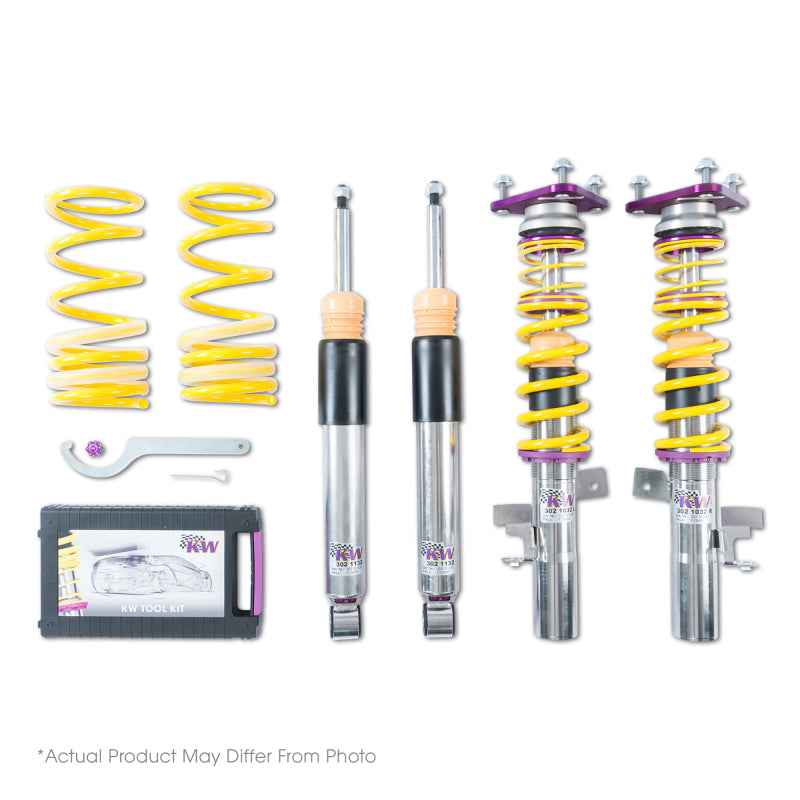

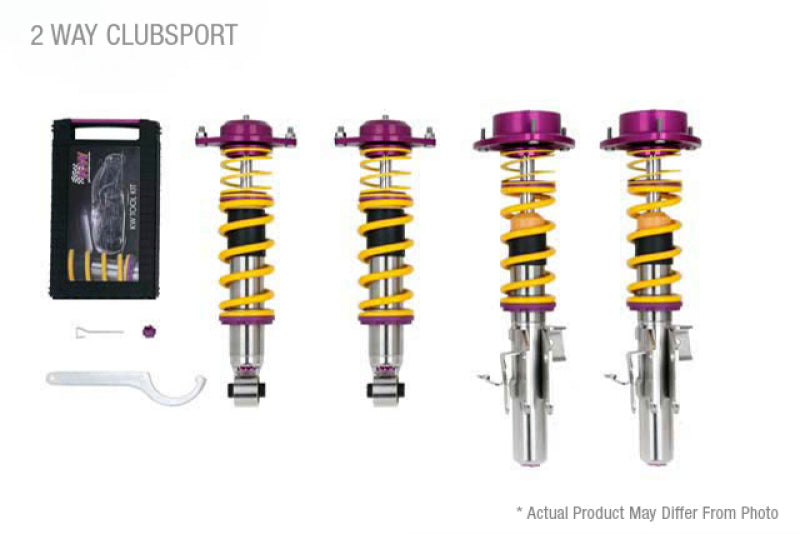

KW V3 Clubsport is developed for enthusiasts who regularly use road-legal cars on track. It combines independent rebound and compression adjustment with firmer, motorsport-oriented spring/damper calibration and application-specific top-mount hardware where specified. The setup should be viewed as a tunable system whose final behavior depends on alignment, tire, ride height and the driver's intended circuit use.
Why Choose the KW V3 Clubsport for This Application?
Choose V3 Clubsport when the vehicle sees meaningful track use and the standard V3's street bias is no longer the main priority. The stronger track focus makes alignment, tire choice and corner balancing more consequential.
Key Features

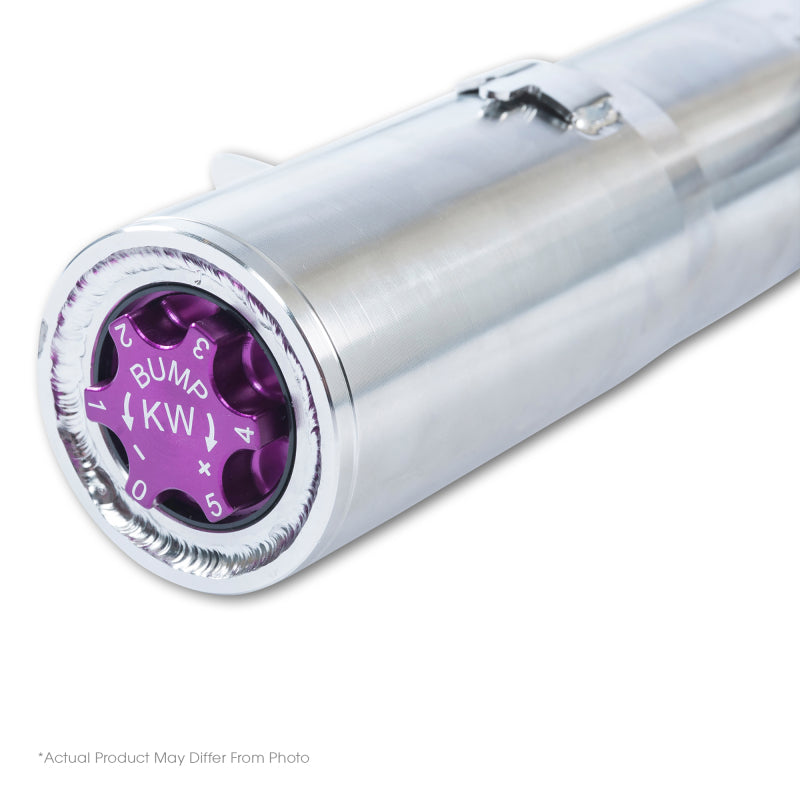

- Independent rebound and compression adjustment
- Track-focused spring and damper calibration
- Application-specific Clubsport top-mount configuration where supplied
- Height adjustment for road-and-track setup
Vehicle Fitment
- Make: BMW
- Application: 3 series (F30) with EDC (does not include EDC cancellation)
- Configuration: Sedan; RWD
- KW Jobber Model Years: 12-18
- KW Part Number: 3522080E
Technical Specifications
- Front Height Adjustment: 40-65 mm (1.5-2.5 in)
- Rear Height Adjustment: 30-60 mm (1.2-2.3 in)
- Front Spring Rate: 457 lb/in
- Rear Spring Rate: 685 lb/in
- Top Mount Configuration: Camber / OE*
Enthusiast Setup Perspective
A good installation should leave enough travel for the road or circuit being used. Chasing maximum lowering at the expense of bump travel can work against the very grip and control this system is intended to provide. After installation, establish ride height and alignment first, then make damper changes in small increments and record them so the effect of each adjustment remains clear.
Important KW Fitment Notes
- KW Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- KW Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
- KW Note 97: Clubsport coilover with top mount: only with front axle top mount available
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
