Description

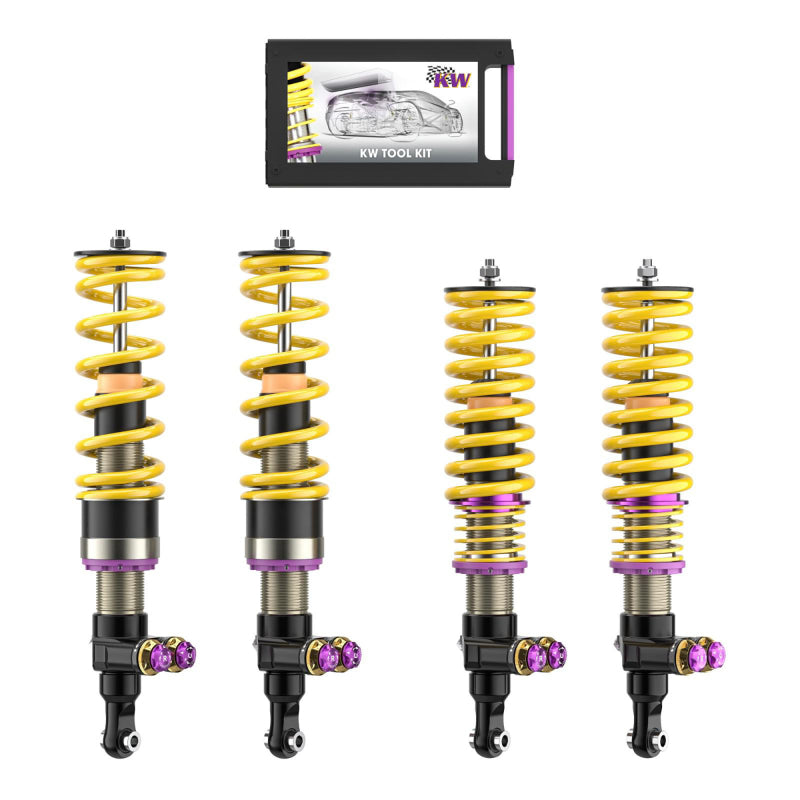

For a KW V5 – 2013–2017 Ferrari F12 Berlinetta (F152) being developed beyond stock suspension behavior, KW HLS provides a more deliberate foundation for ride height, body control and tire management.
KW HLS is designed to temporarily raise the vehicle at low speed to clear steep driveways, ramps and other obstacles while retaining a performance-oriented suspension setup. HLS configurations vary by application and may lift the front axle or both axles. On a compact performance platform, the payoff is sharper transient response and a more settled chassis as tire grip and cornering load increase.
Why Choose the KW HLS for This Application?
Choose HLS when a low performance setup creates a practical clearance problem. The hydraulic lift is intended for obstacles and access situations while allowing the normal performance ride height to remain unchanged during driving.
Key Features
- Hydraulic temporary lift function
- Designed to improve obstacle clearance without permanently raising the car
- Application-specific HLS 2 or HLS 4 architecture
- Compatibility depends on the underlying KW or OE suspension configuration
Vehicle Fitment
- Make: Ferrari
- Catalog Application: KW V5 – 2013–2017 Ferrari F12 Berlinetta (F152)
- Configuration: excl. F12 TDF
- KW Jobber Model Years: 13-17
- KW Part Number: 30942210
Technical Specifications
- Front Height Adjustment: 15-35 mm (0.6-1.4 in)
- Rear Height Adjustment: 15-35 mm (0.6-1.4 in)
Enthusiast Setup Perspective
For an enthusiast build, the practical benefit is consistency. A controlled platform makes steering, braking and tire behavior easier to read, which matters as wheel width, tire grip and alignment become more aggressive.
Important KW Fitment Notes
- KW Note e: Utilizes HLS Evolution Pump

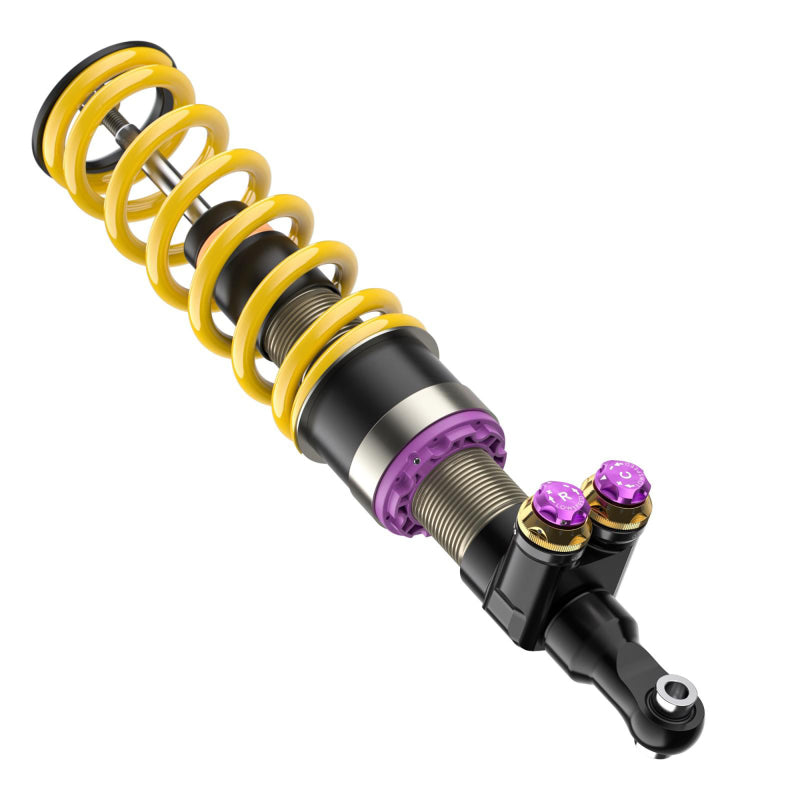

- KW Note 1: Height adjustable on the front and rear axles (threaded strut housings)
- KW Note 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- KW Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- KW Note 90: Aluminium suspensions struts
Fitment note: Specifications above are tied to the exact KW part number shown and the application data in the supplied KW jobber sheet. Confirm the vehicle's drivetrain, factory electronic suspension, axle weight and any listed hardware requirements before ordering.
