Description

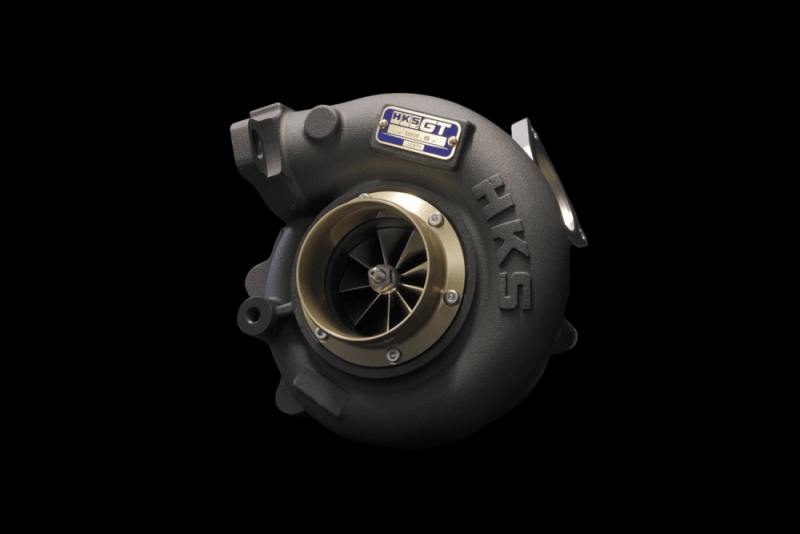

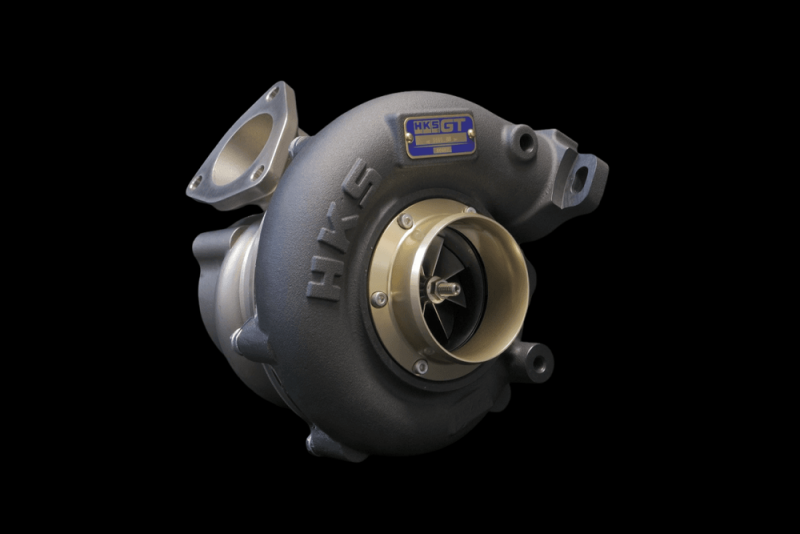

The HKS GT5565_BB Symmetry Turbocharger provides the specified turbocharger or turbo installation package. This is a turbocharger component rather than a complete vehicle installation kit.
Design and operation
Turbo selection involves compressor and turbine matching as well as housing and connection geometry. A/R, flange specification and wastegate arrangement affect the installation and operating response; they are not interchangeable sizing details.
Technical details
- Manufacturer part number: 14001-AK077.
- Specification / compatible system: 3-Bolt / A/R 0.73.
Installation and selection
Match the manifold, turbine outlet, intake and charge piping to the specified turbocharger. Plan the required lubrication, boost control and engine calibration for the completed installation.
