Description
The HKS S Type Oil Cooler Kit provides a dedicated cooling configuration for the specified oil or transmission-fluid circuit. Application: Toyota 86 (ZN6).
Design and operation
Oil-cooling performance depends on airflow through the core and correct fluid routing. Engine, differential and transmission coolers serve different circuits and must be selected for the intended fluid system. The S Type uses a sandwich-style oil-filter interface; select it for the specified filter and engine arrangement.
Technical details
- Manufacturer part number: 15004-AT112.
- Configuration: Black / For Supercharger / Applied E
- Application: Toyota 86 (ZN6).
- Cooler core dimensions: 200x200x32 mm; row/layer designation 15.

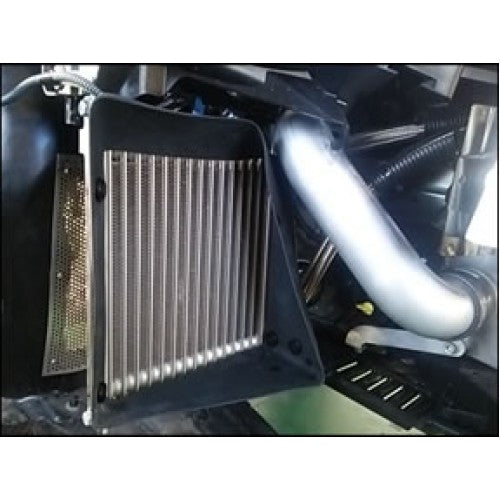

- Specified mounting location: Inside right fender.
- Hose / connection designation: #10.
Application-specific requirements
- Cannot be installed the fog lamp or BRZ LED accessory liner.
- Modifications of the radiator support and resin cover are needed.
Installation and selection
Confirm the circuit being cooled, filter compatibility and any required ducts or brackets. Installation should include secure hose routing, system priming, leak checks and a fluid-level check after circulation.
