Description
The HKS S Type Oil Cooler Kit provides a dedicated cooling configuration for the specified oil or transmission-fluid circuit. Application: Subaru Impreza WRX STI (GRB).
Design and operation
Oil-cooling performance depends on airflow through the core and correct fluid routing. Engine, differential and transmission coolers serve different circuits and must be selected for the intended fluid system. The S Type uses a sandwich-style oil-filter interface; select it for the specified filter and engine arrangement.
Technical details
- Manufacturer part number: 15004-AF110.

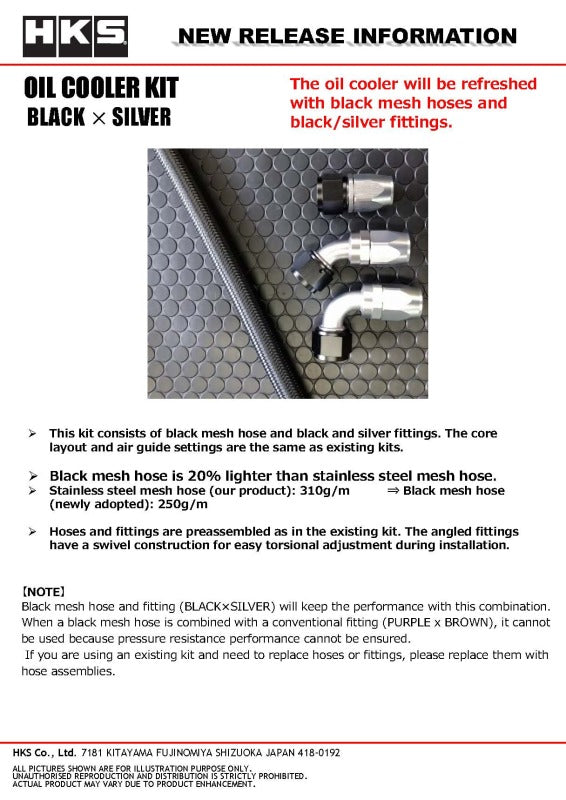

- Configuration: Black
- Application: Subaru Impreza WRX STI (GRB).
- Cooler core dimensions: 200x175x48 mm; row/layer designation 12.

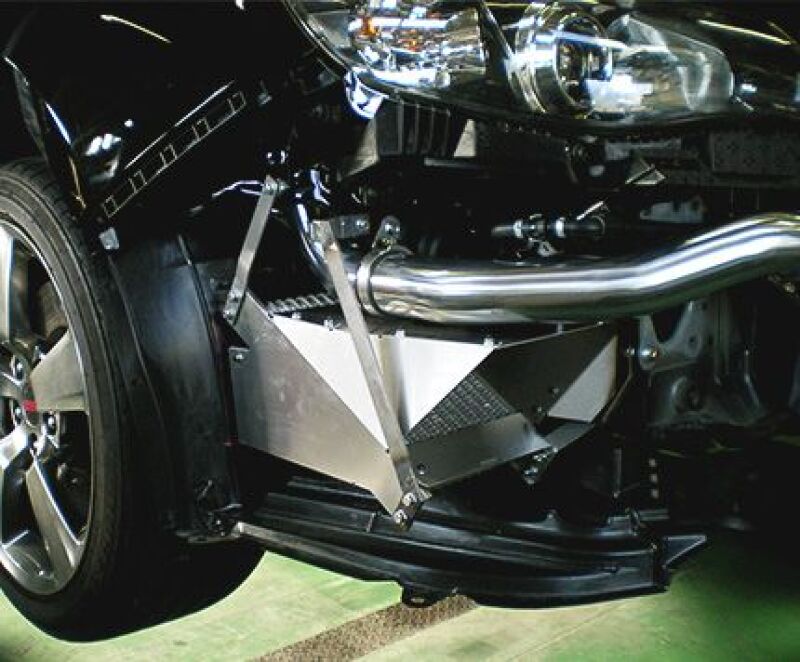

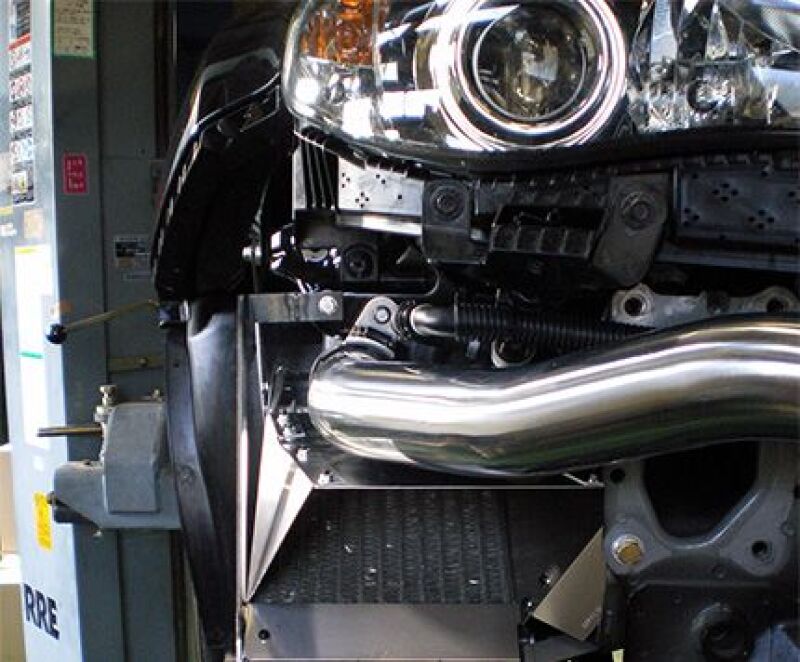

- Specified mounting location: Inside right bumper.
- Hose / connection designation: #10.
Application-specific requirements

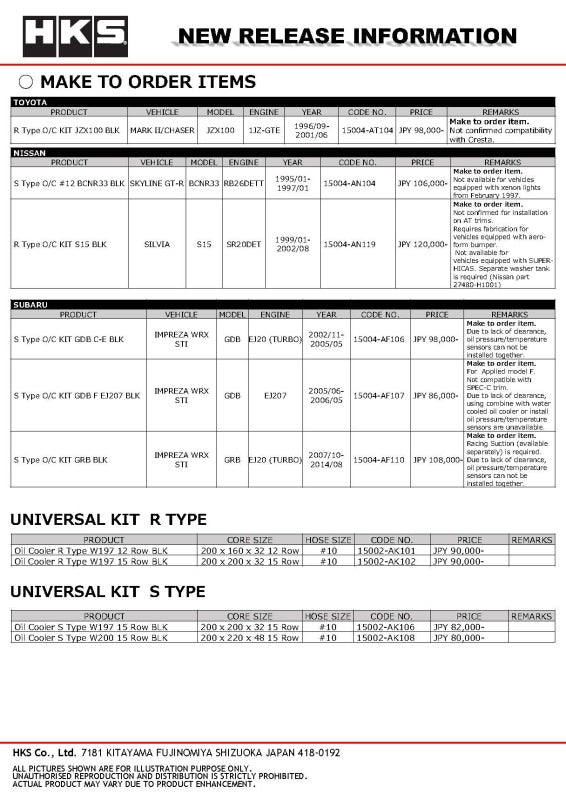

- Due to lack of clearance, oil pressure/temperature sensors cannot be installed together.
Installation and selection
Confirm the circuit being cooled, filter compatibility and any required ducts or brackets. Installation should include secure hose routing, system priming, leak checks and a fluid-level check after circulation.
