Description
The HKS R Type Oil Cooler Kit provides a dedicated cooling configuration for the specified oil or transmission-fluid circuit. Application: Nissan Silvia (S15).
Design and operation
Oil-cooling performance depends on airflow through the core and correct fluid routing. Engine, differential and transmission coolers serve different circuits and must be selected for the intended fluid system. The R Type uses a filter-relocation arrangement, so filter access and line routing must be planned with the supplied configuration.
Technical details

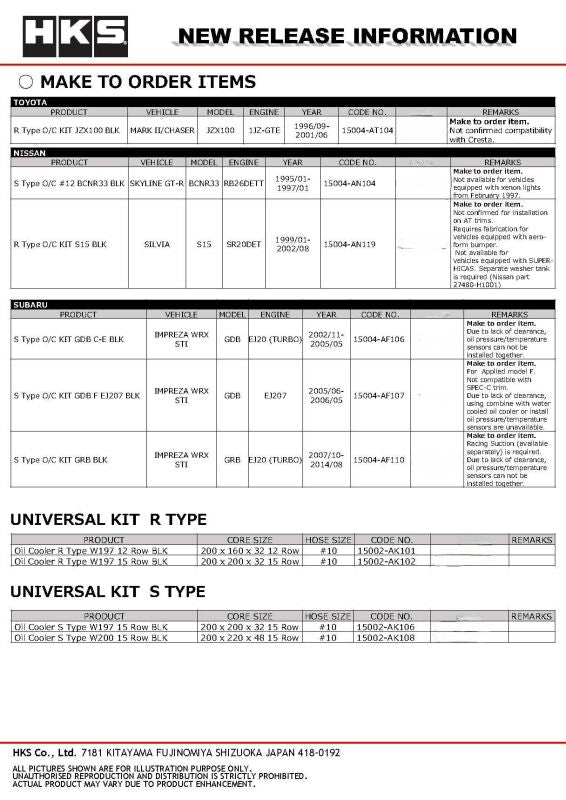

- Manufacturer part number: 15004-AN119.
- Configuration: Black
- Application: Nissan Silvia (S15).
- Cooler core dimensions: 200x220x48 mm; row/layer designation 15.
- Specified mounting location: Inside right fender.

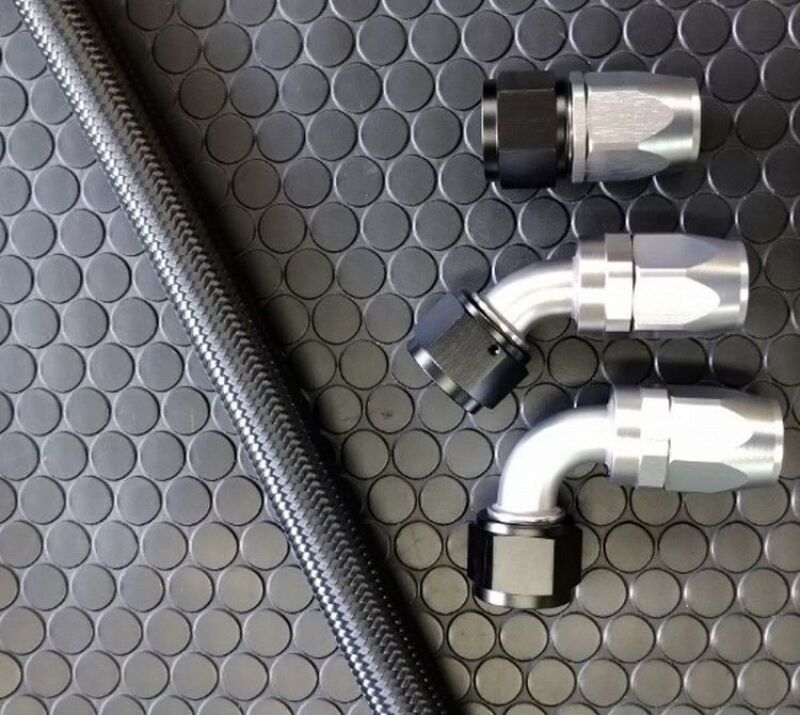

- Hose / connection designation: #10.
Application-specific requirements
- Modification of air form bumper's air guide is required.
- Not compatible with Super HICAS.
- Separate washer tanke required (Nissan part 27480-H1001).
- Not confirmed for installation on AT trims.
- Requires fabrication for vehicles equipped with aero-form bumper.
Installation and selection
Confirm the circuit being cooled, filter compatibility and any required ducts or brackets. Installation should include secure hose routing, system priming, leak checks and a fluid-level check after circulation.
