Description
The HKS R Type Oil Cooler Kit provides a dedicated cooling configuration for the specified oil or transmission-fluid circuit. Application: Toyota Chaser / Mark II / Cresta (JZX100).
Design and operation
Oil-cooling performance depends on airflow through the core and correct fluid routing. Engine, differential and transmission coolers serve different circuits and must be selected for the intended fluid system. The R Type uses a filter-relocation arrangement, so filter access and line routing must be planned with the supplied configuration.
Technical details
- Manufacturer part number: 15004-AT104.
- Configuration: Black
- Application: Toyota Chaser / Mark II / Cresta (JZX100).
- Cooler core dimensions: 200x200x32 mm; row/layer designation 15.
- Specified mounting location: In front of radiator.

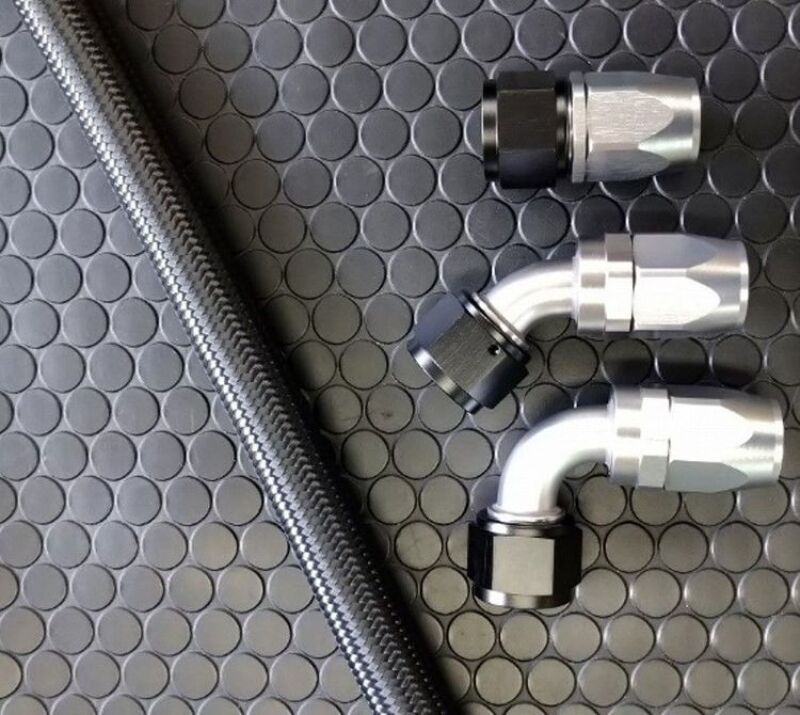

- Hose / connection designation: #10.
Application-specific requirements

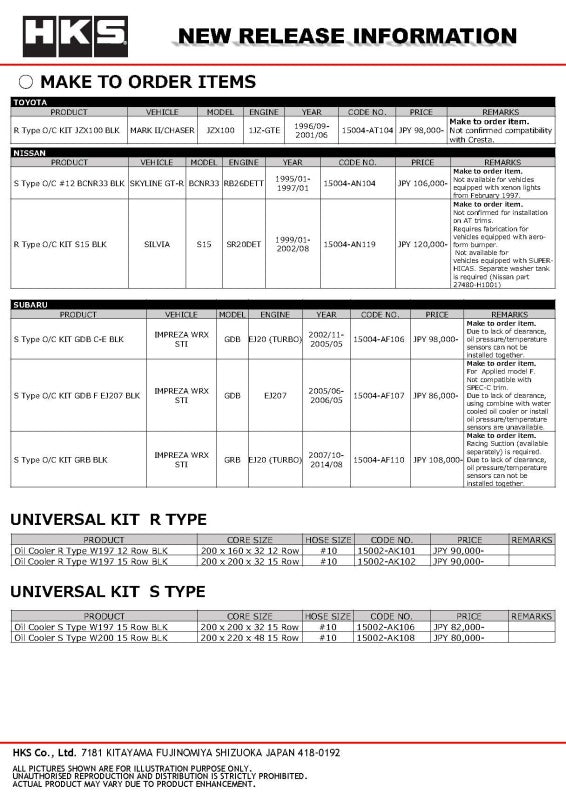

- Not confirmed compatibility with Cresta.
Installation and selection
Confirm the circuit being cooled, filter compatibility and any required ducts or brackets. Installation should include secure hose routing, system priming, leak checks and a fluid-level check after circulation.
