Description

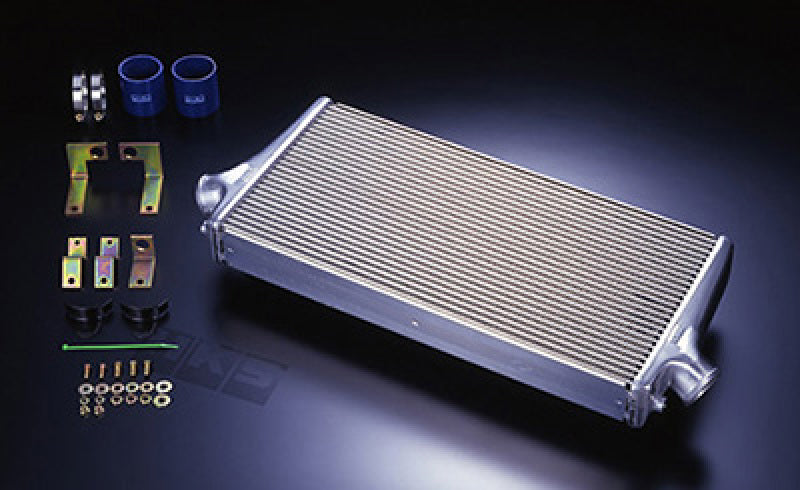

The HKS R Type Intercooler Kit provides an application-specific charge-air cooling component. Application: Mazda RX-7 (FD3S).
Design and operation
An intercooler transfers heat from compressed intake air to the surrounding cooling air. Core dimensions, end-tank layout and airflow through the bumper all influence its operation; a larger core dimension alone is not a guaranteed horsepower gain.
Technical details
- Manufacturer part number: 13001-AZ002.
- Configuration: Full Kit / For TO4R Full Turbine Kit
- Application: Mazda RX-7 (FD3S).
- Core size / layout: 600X255.6X103 mm; V system.
Application-specific requirements
- ※Battery must be changed to 38B19R with flat top.
Installation and selection
Check whether the selected part supplies the core only or includes piping. Confirm compatibility with the factory or aftermarket turbo plumbing and any required bumper, duct or sensor changes.
