Description

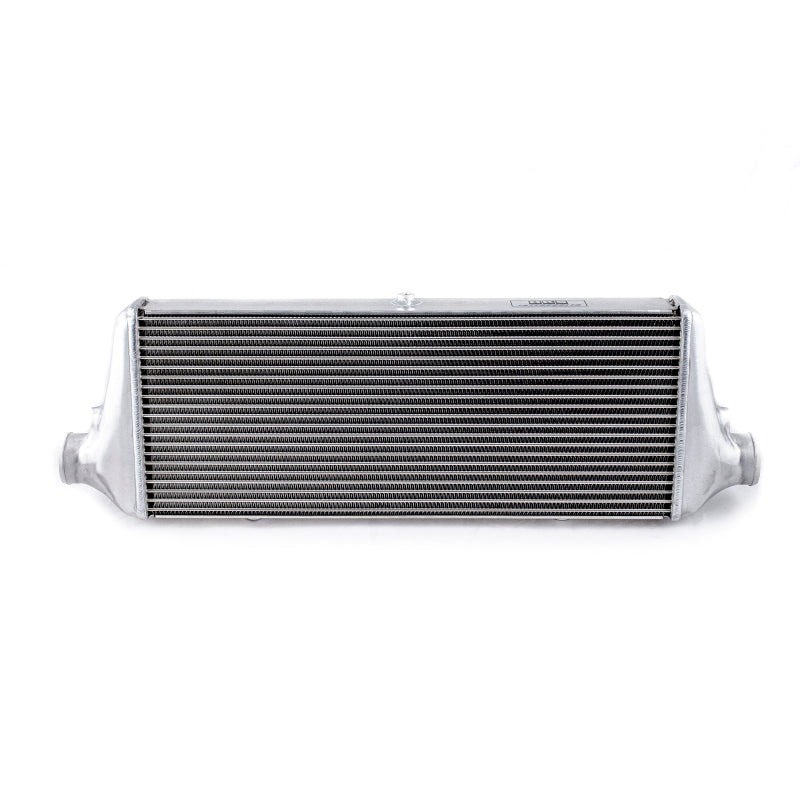

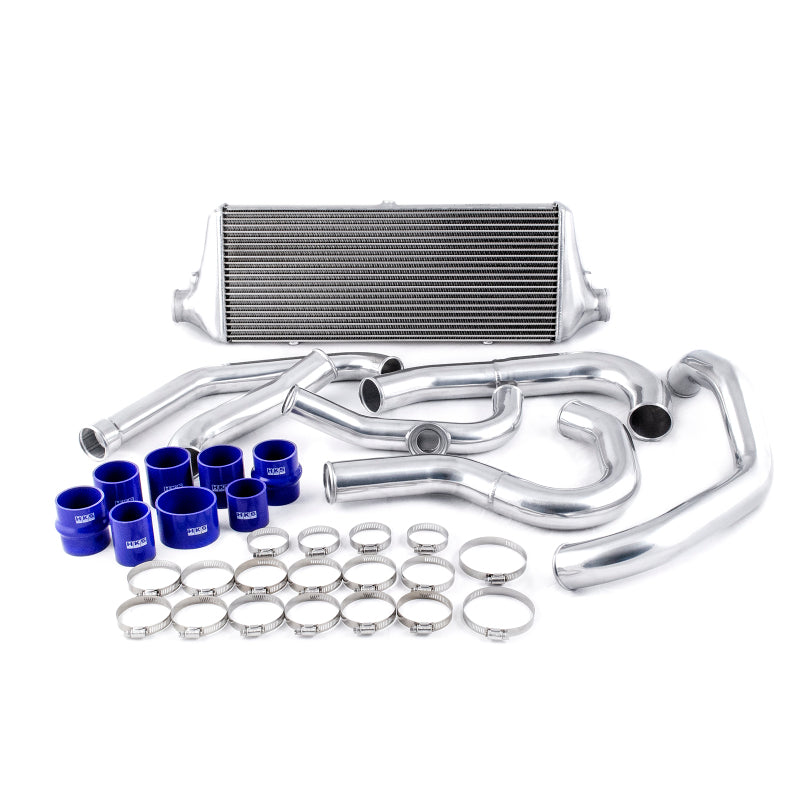

The HKS S Type Intercooler Kit provides an application-specific charge-air cooling component. Application: Subaru Impreza WRX STI (GDB).
Design and operation
An intercooler transfers heat from compressed intake air to the surrounding cooling air. Core dimensions, end-tank layout and airflow through the bumper all influence its operation; a larger core dimension alone is not a guaranteed horsepower gain.
Technical details
- Manufacturer part number: 13001-AF004.
- Configuration: EJ207 / GDB Applied E / Aluminum
- Application: Subaru Impreza WRX STI (GDB).
- Core size / layout: 600X244X65 mm; Front mount.
Application-specific requirements
- Not compatible with Spec C, stock option fog lamp, and stock recirculation.
- Racing Suction(70020-AF103) required.
- New S-type core was developed only for GDB kit in order to improve response.
- ECU setting is required.
- Racing Suction Reloaded (70020-AF103), which is sold separately, is required.
- Front Bumper and reinforcement needs to be modified.
- Modification of air guide is required.
- It does not fit to STI SPEC C (with Transmission Cooler, Engine Oil Cooler).

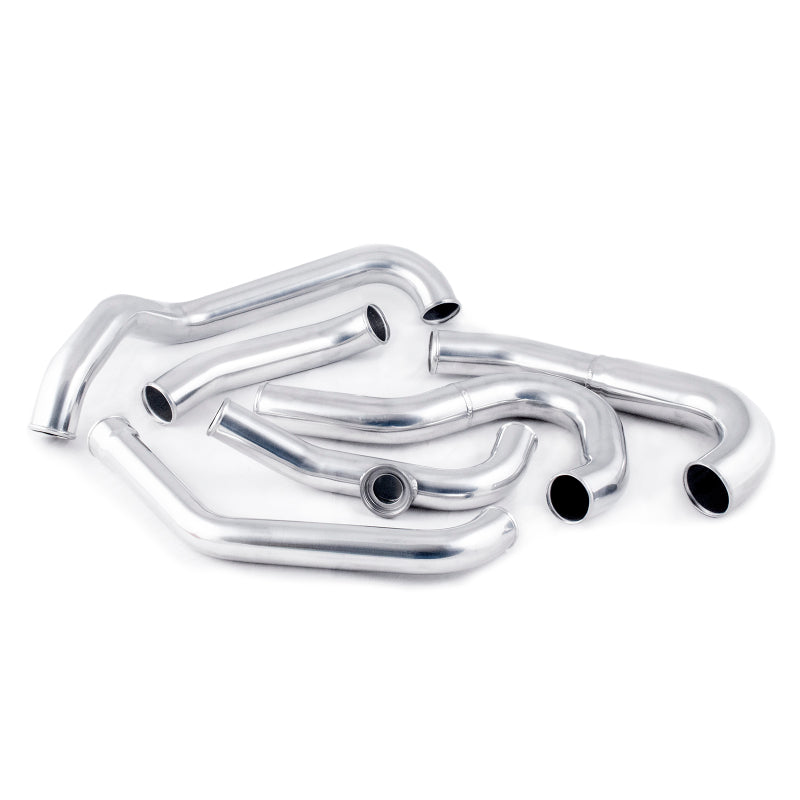

Installation and selection
Check whether the selected part supplies the core only or includes piping. Confirm compatibility with the factory or aftermarket turbo plumbing and any required bumper, duct or sensor changes.
