Description

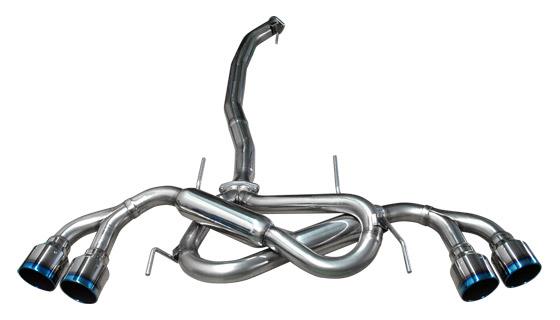

The HKS LEGAMAX Exhaust provides an application-specific exhaust configuration. Application: Nissan GT-R.
Design and operation
Pipe diameter, routing and silencer construction influence exhaust flow, sound and clearance. The useful comparison is the complete configuration: a rear-section assembly and a system that includes center piping do not replace the same factory components.
Technical details
- Manufacturer part number: 31021-AN010.
- Configuration: TIG Welded
- Application: Nissan GT-R.
- Exhaust outlet specification: 119 x 4 mm.
- Main-pipe specification: 85 mm; this does not describe every section of the system.
Application-specific requirements
- • Only compatible with the vehicle made after July 2016 or later or 2017 model of Pure Edition.
- If installed on a vehicle made after Oct 2011, processing of the factory aluminum air guide plate is required.
- Not compatible with GT-R NISMO and 4BA-R35.
Installation and selection
Match the chassis, engine, body style and supplied exhaust sections to the vehicle. Check compatibility with existing headers, front pipes and catalytic converters. Ground clearance must be assessed at the vehicle’s actual ride height.
