Description
NOTE: Engine reinforcement is recommended when operting at boost pressures above 100kPa (1.01 kgf/cm^2). Depending on the set boost pressure, it may be necessary to upgrade the injectors, high flow fuel pump, and reinforced head gasket. Please take caution.

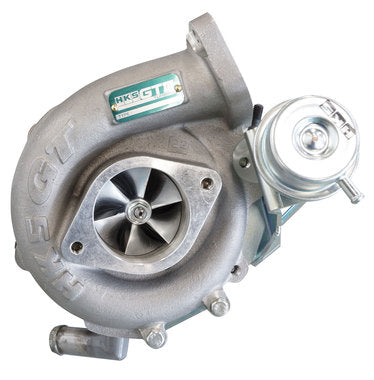

GT III Turbine is a new generation of turbo combining the latest design MHI high performance CHRA with HKS original housings designed from the long term know-how HKS has accumulated over many years. GTIII Turbine minimizes surging making it an easy to use unit with flexibility of setup.
Features
- This turbine kit is designed to maintain the stock appearance while targeting outputs
from 243 kW (330 PS) to 331 kW (450 PS).
- On a stock engine, the target output is 243 kW (330 PS), while engines with internal
reinforcements can aim for 331 kW (450 PS).
- Ideal for refreshing the HKS GT turbine series or stepping up from the stock turbo.
- Designed to match the RB25DET stock turbine shape, requiring minimal modifications.
- Comes with a reinforced actuator, set to 88.3 kPa (0.9 kgf/cm^2). Heat shields are specifically designed for this turbine, effectively blocking radiant heat from the turbine.
- The turbine inlet pipe is also specially designed, with larger bend radii to reduce
pressure loss.
Components
- GT III-RS Turbo (with reinforced actuator)
- Exclusive outlet pipe
- Exclusive heat shield (for turbo)
- Complete water and oil lines
- Gaskets
- Adapter pipe
- Hardware
Performance
Test Vehicle
- Model: Nissan Skyline ER34
- Engine: Stock Pistons / Stock Head Gasket
- Turbo: GTIII-RS
- ECU: F-CON V PRO 3.4 EVC7
- Fuel: Large-capacity Injector (550cc) / Fuel Pump (195L/h)
- Exhaust: HKS STAINLESS FRONT PIPE (3306-SN007) / Super Turbo Muffler (31029-AN005)
- Intake: Racing Suction (70020-AN104) / AIR FLOW LESS ADAPTER (1599-SN001)
- Cooling: HKS Front-Mount Intercooler (Prototype)
Output Data
- Max Power kW (PS): Stock 172.2kw (234.1ps) 6680rpm / GTIII-RS 271kW (369.5ps) 6500rpm
- Max Torque Nm (kgf/m): Stock 306.9Nm (31.2kgf/m) 4580rpm / GTIII-RS 439.5Nm (44.8kgf/m) 5260rpm
