Description
Note: NOT CARB Legal - This product is not currently CARB exempt and is not available for purchase in California & CARB States or for use on any vehicle registered with the California Department of Motor Vehicles.
Features

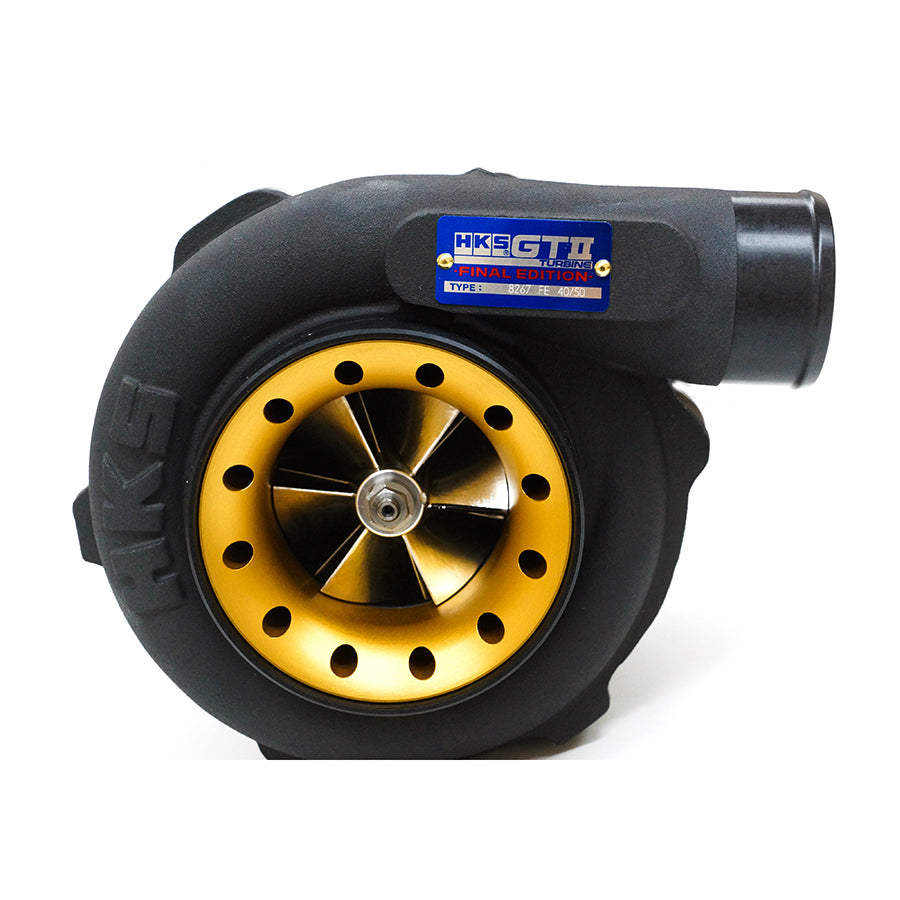

- A new model with a compressor housing inlet of 100mm with a ported shroud and an outlet of 50mm has been developed to make it easier to use the GT II 8267 with GTII maximum output as a universal turbo. This turbo is used in the R35 GT-R GT1000+ kit. The maximum output is more than 500 horsepower.
- Exhaust housing inlet flange - 3 Bolt Flange
- A BLACK Coating is applied to the compressor housing, and the combination with the gold ported shroud decorates the engine room.
- The variable ported shroud allows to suppress the occurrence of surging.
Kit Include
- GTII 8267 Turbo Assy
- Inlet and Outlet gasket.
Specifications:
Compressor Wheel Trim: 60
Compressor Wheel Inlet (mm): 64
Compressor Wheel Outlet (mm): 82
Compressor Housing Inlet (mm): 100
Compressor Housing Outlet (mm): 50
Turbine Wheel Trim : 77
Turbine Wheel Outer Diameter (mm): 67.5
Turbine Wheel Outer Diameter (mm) 59.3
Inlet Flange: 3 Bolt Flange
Outlet Flange: 4 Bolt Flange
