Description

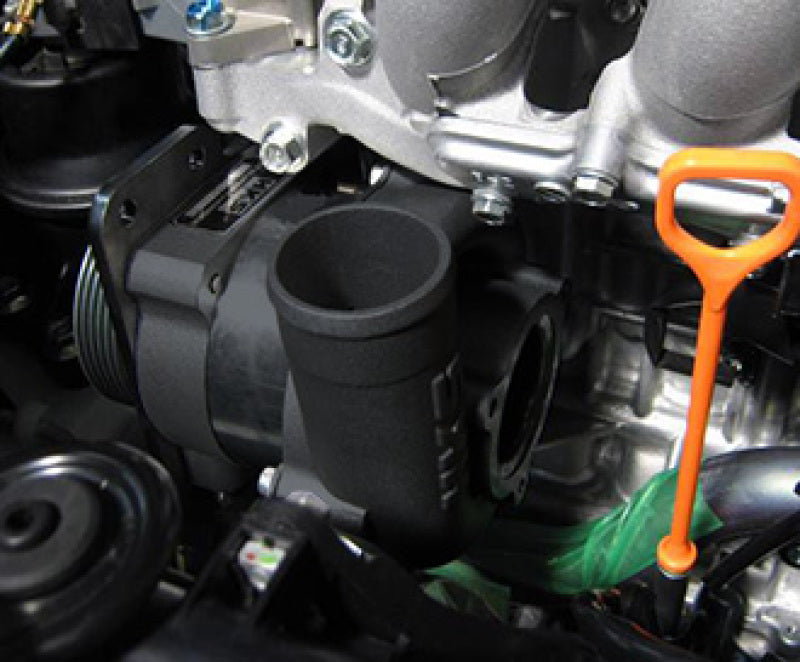

The HKS GT2 Supercharger Pro Kit provides the specified HKS supercharger system or assembly. Application: Honda CR-Z (ZF1).
Design and operation
A centrifugal supercharger is driven mechanically, with its airflow and pressure delivery changing with operating speed. Final performance depends on the pulley combination, charge-air cooling, fuel system and engine calibration, rather than the compressor designation alone.
Technical details
- Manufacturer part number: 12001-AH011.
- Configuration: Version 2
- Application: Honda CR-Z (ZF1).
- Supercharger model: GT2-7040.
Application-specific requirements
- Modification of the engine is not required up to 200HP.（For high load driving such as circuit driving, it is recommended to upgrade the engine parts with HKS products.).
- ○Installation of this kit has only slight effect on fuel economy!!.
- High octane gasoline must be used.
- Since the factory washer tank must be removed to install this kit, DENSO washer tank (160200-5070) or a similar item may be required.
Installation and selection
Plan engine management, fueling and thermal management for the complete installation. Match the supplied package to the required supporting hardware; a standalone assembly and a vehicle-specific system do not contain the same components.
