Description

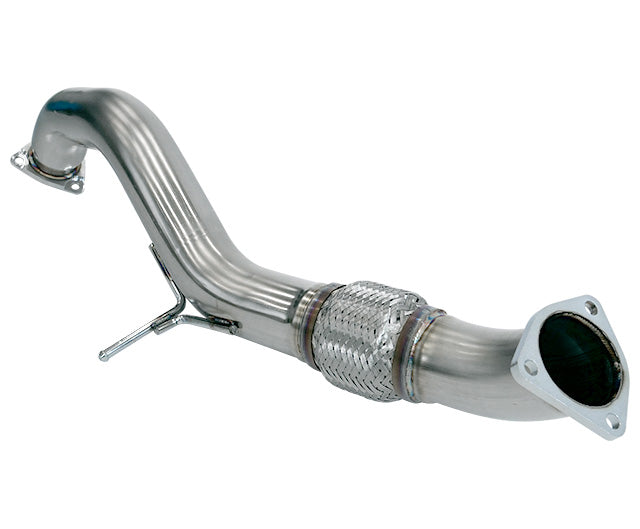

The HKS Front Pipe is a high-flow exhaust upgrade developed for the 2023+ Honda Civic Type R (FL5). Designed to complement the HKS Metal Catalyzer, the larger-diameter SUS304 stainless steel front pipe reduces the restriction created by the factory front pipe and improves exhaust flow efficiency while adding a sportier exhaust note.
HKS optimized the pipe diameter, bend angles, and flange transitions through repeated testing. The design uses high-quality TIG welding and carefully finished flange joints to minimize steps and disruptions in the exhaust path. The front pipe can be paired with the HKS Metal Catalyzer and either the factory exhaust or HKS LEGAMAX Sports exhaust.
Features
- SUS304 stainless steel construction
- 74.7 mm main pipe diameter
- Optimized pipe diameter and bend angles for improved exhaust flow
- High-quality TIG-welded construction
- Carefully finished flange transitions designed to reduce flow disruption
- Designed to complement the HKS Metal Catalyzer
- Compatible with the factory exhaust or HKS LEGAMAX Sports exhaust
- Sportier exhaust note compared with the factory front pipe
- 3.2 kg product weight versus 4.5 kg for the stock front pipe
Vehicle Fitment
2023+ Honda Civic Type R (FL5) with K20C engine.
Specifications
- Manufacturer: HKS
- Part Number: 33004-AH003
- JAN Code: 4957266941522
- Product: Front Pipe
- Material: SUS304 Stainless Steel
- Pipe Diameter: 74.7 mm
- Product Weight: 3.2 kg
- Minimum Ground Clearance: 115 mm at the stock front under panel
- Estimated Installation Time: Approximately 1–2 hours
- Package Size: 910 × 340 × 305 mm
- Package Weight: 5.3 kg
HKS Testing
In HKS flow-bench testing with the HKS Metal Catalyzer, the HKS Front Pipe reduced exhaust resistance compared with the stock front pipe. HKS also recorded increased power and torque in its FL5 test configurations. Results are based on HKS in-house testing and may vary depending on vehicle specification and measurement conditions.
Professional installation is recommended. Product appearance and specifications may be revised by the manufacturer.
