Description

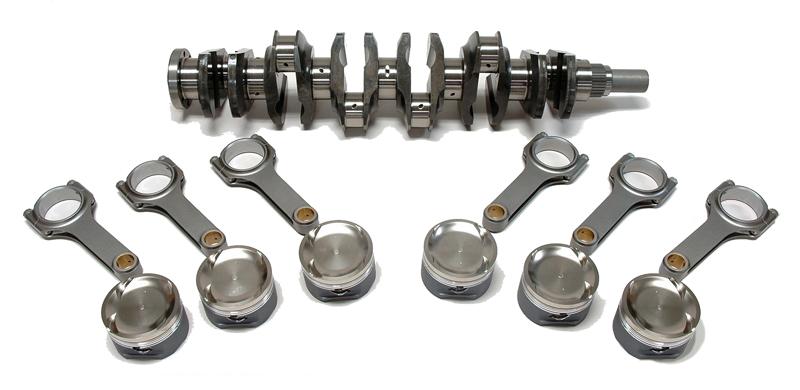

The HKS I-Beam Connecting Rod Set provides the listed connecting-rod set for the specified engine configuration. Application: FA20.
Design and operation
Connecting rods must match crankpin dimensions, wrist-pin fitment and the required center-to-center length. A compatible engine-family label does not replace dimensional checks when the engine uses a stroker crankshaft or aftermarket pistons.
Technical details
- Manufacturer part number: 23004-AT001.
- Application: FA20.
- Engine designation: FA20.
- Bore / pin-size designation: φ22 PIN.
- Published boring / honing requirement: not required.
Application-specific requirements
- Repair Connecting Rods for 21004-AT002, 21004-AT003 Capacity: -, Type: D22 PIN, Boring/Honing modification: Not required, Full flow modification: Not required, FORGED,I-BEAM.
Installation and selection
Confirm the intended crankshaft and piston combination. Check bearing clearances, fastener procedure and rotating-assembly clearance during assembly.
