Description

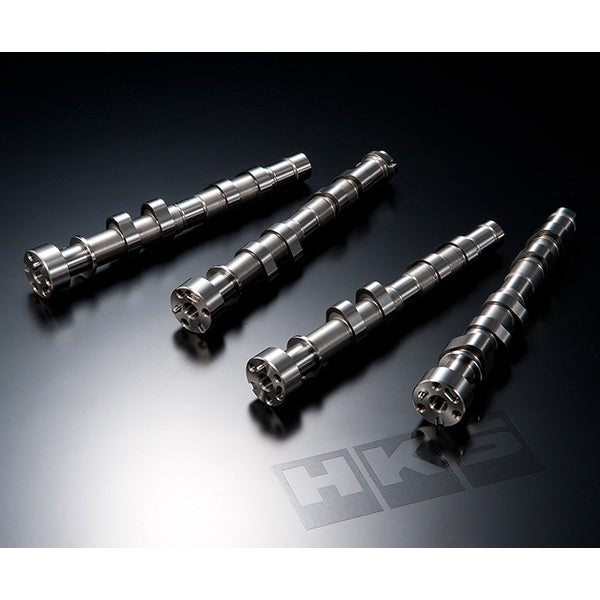

The HKS Camshaft Set changes the valve-opening profile for the specified engine application. Application: FA20.
Design and operation
Camshaft duration and lift influence airflow across the engine’s operating range. The useful result depends on the cylinder head, piston clearance and calibration; selecting a camshaft requires more than choosing the largest duration number.
Technical details
- Manufacturer part number: 22002-AT005.
- Configuration: Intake 260° Exhaust 266° / Applied A
- Application: FA20.
- Camshaft position: IN+EX.
- Duration: IN 260° EX 266°.
- Valve lift: 11.7 mm.
- Designed valve timing: IN 82°～150° EX 81°～135°.
Application-specific requirements
- Use together with HKS capacity upgrade kit (21004-AT002 or 21004-AT003).
- The valve timing is the knock pin is matched to stock cam, so, there is no need for complicated installation.
- Settings of fuel, ignition, valve timing are required.
Installation and selection
Verify the engine revision, intake/exhaust position and any required valve-train or piston components. Check cam timing, valve clearance and valve-to-piston clearance during assembly, then calibrate the completed engine combination.
