Description

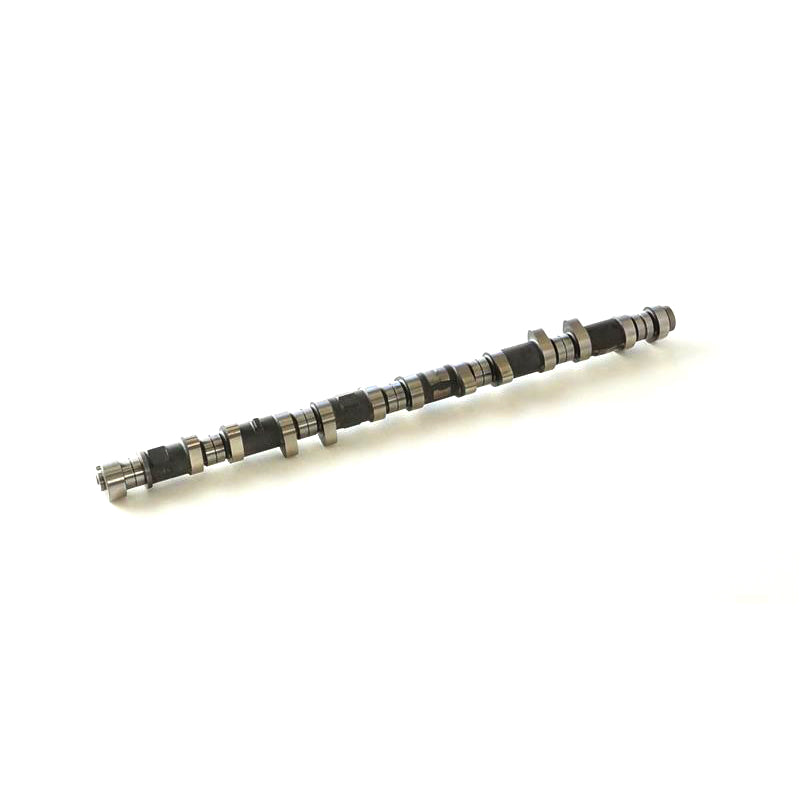

The HKS Exhaust Camshaft changes the valve-opening profile for the specified engine application. Application: 2JZ-GTE.
Design and operation
Camshaft duration and lift influence airflow across the engine’s operating range. The useful result depends on the cylinder head, piston clearance and calibration; selecting a camshaft requires more than choosing the largest duration number.
Technical details
- Manufacturer part number: 22002-AT002.
- Configuration: 280°
- Application: 2JZ-GTE.
- Camshaft position: EXHAUST.
- Duration: 280°.
- Valve lift: 9.3 mm.
- Designed valve timing: 113°.
Application-specific requirements
- Duration: 280°, Valve Lift: 9.3, Designed Valve Timing: 113°, Sub Category: EXHAUST (Not Compatible with VVT-i side).
Installation and selection
Verify the engine revision, intake/exhaust position and any required valve-train or piston components. Check cam timing, valve clearance and valve-to-piston clearance during assembly, then calibrate the completed engine combination.
