Description

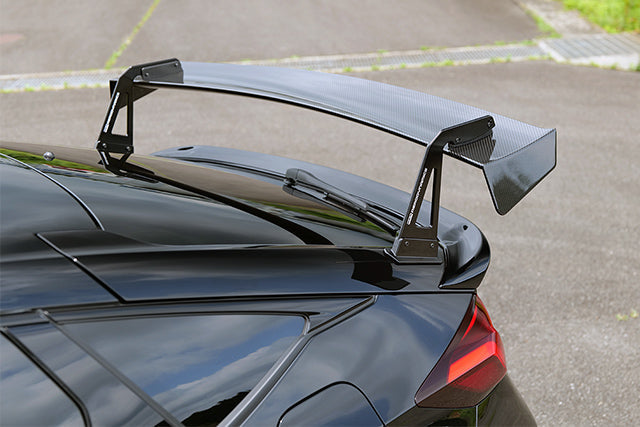

The HKS Body Kit Type-S Rear Wing is a functional aerodynamic upgrade developed for the 2023+ Honda Civic Type R (FL5). Constructed from lightweight, high-rigidity dry carbon fiber, the wing uses a motorsport-inspired swan-neck configuration designed to keep airflow beneath the main element unobstructed and generate effective rear downforce.
HKS developed the wing using CFD-based aerodynamic analysis. A six-position adjustable angle-of-attack mechanism allows the aerodynamic load to be tailored for different driving conditions, while the integrated main wing and end-plate construction creates a seamless, refined appearance. HKS laser marking on the wing stays completes the motorsport-inspired finish.
Features
- Lightweight, high-rigidity dry carbon fiber construction
- Swan-neck wing configuration
- CFD-optimized aerodynamic design
- Six-position adjustable angle of attack
- Integrated main wing and end-plate construction
- HKS laser-marked wing stays
- CFRP components are clear-coated and ready for installation
- Compatible with the HKS Body Kit Type-S Duck Tail
- No drilling required according to HKS fitment information
Vehicle Fitment
2023+ Honda Civic Type R (FL5) with K20C engine.
Specifications
- Manufacturer: HKS
- Part Number: 53004-AH006
- JAN Code: 4957266829592
- Product: Body Kit Type-S Rear Wing
- Main Wing Material: Dry Carbon Fiber
- Wing Stay Finish: Black Anodized
- Adjustment: 6-position angle of attack
- Estimated Installation Time: Approximately 1 hour
- Package Size: L1660 × W470 × H200 mm
- Package Weight: 7.7 kg
Professional installation is recommended. Product appearance and specifications may be revised by the manufacturer.
