Description

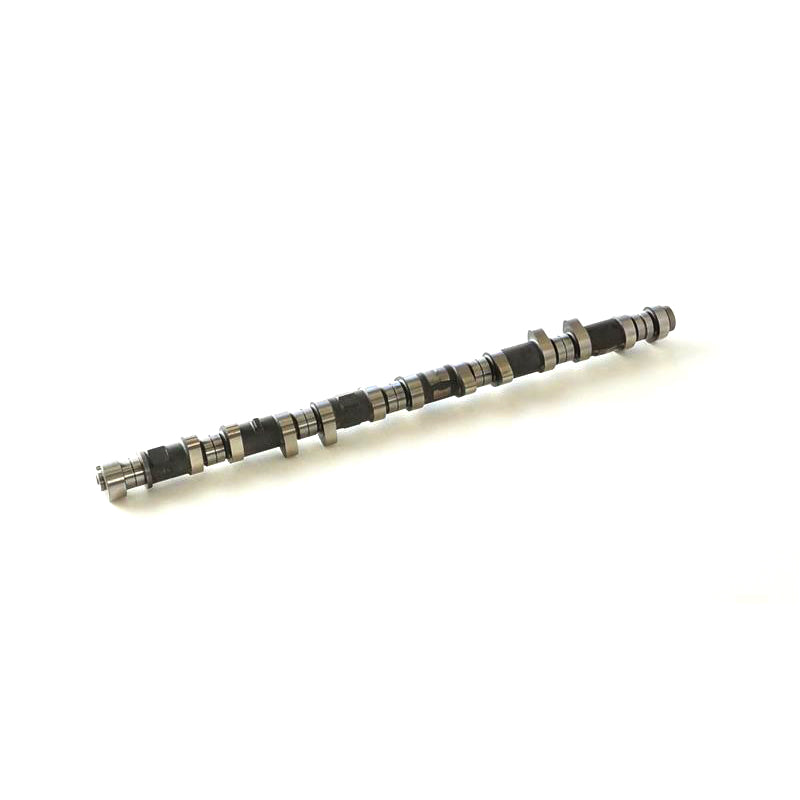

The HKS Exhaust Camshaft changes the valve-opening profile for the specified engine application. Application: 1JZ-GTE.
Design and operation
Camshaft duration and lift influence airflow across the engine’s operating range. The useful result depends on the cylinder head, piston clearance and calibration; selecting a camshaft requires more than choosing the largest duration number.
Technical details
- Manufacturer part number: 2202-RT080.
- Configuration: 272°
- Application: 1JZ-GTE.
- Camshaft position: EXHAUST.
- Duration: 272°.
- Valve lift: 9.0 mm.
- Designed valve timing: 115°.
Installation and selection
Verify the engine revision, intake/exhaust position and any required valve-train or piston components. Check cam timing, valve clearance and valve-to-piston clearance during assembly, then calibrate the completed engine combination.
