Description

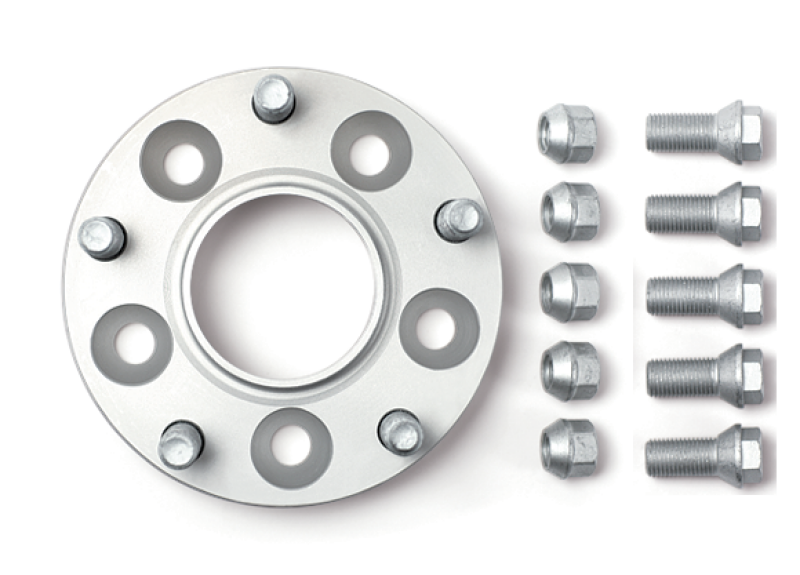

H&R TRAK+ 25mm DRA Wheel Spacers position the wheels farther outward to adjust their location relative to the vehicle’s fenders.
Spacer thickness must be selected around the actual wheel offset, tire size, hub interface, and available clearance. A spacer does not guarantee a flush fit or eliminate wheel-to-body interference.
Features
- Application-specific mounting dimensions.
- Selected thickness changes the wheel’s outward position.
Specifications
| Catalog SKU | HRS509557160 |
|---|---|
| Part number | 509557160 |
| Thickness per spacer | 25mm |
| Bolt pattern | 5x130 |
| Center bore | 71.6mm |
| Application wheel-bolt thread | M14x1.5 |
| Mounting system | DRA |
Fitment and Installation Notes
- The DRA system attaches to the hub with special bolts and provides threaded mounting holes for the wheel bolts. Confirm the permitted wheel-bolt length so the bolts do not protrude beyond the spacer.
- Check wheel, tire, fender, and suspension clearance before installation. Follow the instructions supplied for the exact spacer or adapter.
Vehicle Compatibility
The applications below remain subject to the suspension, hardware, and installation requirements stated above.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2010 | Audi | Q7 | Base |
| 2007-2015 | Audi | Q7 | Premium |
| 2011-2015 | Audi | Q7 | Premium Plus |
| 2010-2015 | Audi | Q7 | Prestige |
| 2009-2010 | Audi | Q7 | TDI |
| 2011-2015 | Audi | Q7 | TDI Premium |
| 2011-2015 | Audi | Q7 | TDI Premium Plus |
| 2011-2015 | Audi | Q7 | TDI Prestige |
| 1963 | Porsche | 356B | Base |
| 1964 | Porsche | 356C | Base |
| 1964 | Porsche | 356SC | Base |
| 2004 | Porsche | 911 | 40th Anniversary Edition |
| 2014 | Porsche | 911 | 50th Anniversary Edition |
| 1965-1968,1974 | Porsche | 911 | Base |
| 1974-1975,1984-1989,1995-2019 | Porsche | 911 | Carrera |
| 1990-1994 | Porsche | 911 | Carrera 2 |
| 1989-2004,2006-2019 | Porsche | 911 | Carrera 4 |
| 2016 | Porsche | 911 | Carrera 4 Black Edition |
| 2012,2015-2016,2018-2019 | Porsche | 911 | Carrera 4 GTS |
| 1996-1998,2002-2019 | Porsche | 911 | Carrera 4S |
| 2016 | Porsche | 911 | Carrera Black Edition |
| 2011-2012,2015-2016,2018-2019 | Porsche | 911 | Carrera GTS |
| 1998,2005-2019 | Porsche | 911 | Carrera S |
| 2018-2019 | Porsche | 911 | Carrera T |
| 1969-1973 | Porsche | 911 | E |
| 2002-2005,2008-2009 | Porsche | 911 | GT2 |
| 2011,2018-2019 | Porsche | 911 | GT2 RS |
| 2004-2005,2007-2008,2010-2011,2014-2016,2018-2019 | Porsche | 911 | GT3 |
| 2007-2008,2010-2011,2016,2019 | Porsche | 911 | GT3 RS |
| 2011 | Porsche | 911 | GT3 RS 4.0 |
| 1968 | Porsche | 911 | L |
| 2016 | Porsche | 911 | R |
| 1993-1994 | Porsche | 911 | RS America |
| 1967-1977 | Porsche | 911 | S |
| 1978-1983 | Porsche | 911 | SC |
| 1989,1994,2011,2019 | Porsche | 911 | Speedster |
| 1969-1973 | Porsche | 911 | T |
| 1996-1998,2002 | Porsche | 911 | Targa |
| 2007-2012,2014-2019 | Porsche | 911 | Targa 4 |
| 2016,2018-2019 | Porsche | 911 | Targa 4 GTS |
| 2007-2012,2014-2019 | Porsche | 911 | Targa 4S |
| 1991-1992,1996-1997,2001-2005,2007-2019 | Porsche | 911 | Turbo |
| 1993-1994 | Porsche | 911 | Turbo 3.6 |
| 1976-1977,1986-1989 | Porsche | 911 | Turbo Carrera |
| 2005,2011-2019 | Porsche | 911 | Turbo S |
| 2018 | Porsche | 911 | Turbo S Exclusive Series |
| 1978-1982,1990-1991 | Porsche | 928 | Base |
| 1990-1991 | Porsche | 928 | GT |
| 1993-1995 | Porsche | 928 | GTS |
| 1983-1986 | Porsche | 928 | S |
| 1987-1989 | Porsche | 928 | S4 |
| 1983-1989 | Porsche | 944 | Base |
| 1987-1988 | Porsche | 944 | S |
| 1989-1991 | Porsche | 944 | S2 |
| 1986-1989 | Porsche | 944 | Turbo |
| 1988 | Porsche | 944 | Turbo S |
| 1992-1995 | Porsche | 968 | Base |
| 1997-1999,2004-2011 | Porsche | Boxster | Base |
| 2008 | Porsche | Boxster | Limited Edition |
| 2000-2003 | Porsche | Boxster | Roadster |
| 2000-2003 | Porsche | Boxster | Roadster S |
| 2008 | Porsche | Boxster | RS 60 Spyder |
| 2004-2011 | Porsche | Boxster | S |
| 2008 | Porsche | Boxster | S Limited Edition |
| 2009 | Porsche | Boxster | S Porsche Design 2 |
| 2004 | Porsche | Boxster | S Special Edition |
| 2011 | Porsche | Boxster | Spyder |
| 2004-2006,2008-2014,2016-2018 | Porsche | Cayenne | Base |
| 2013-2016 | Porsche | Cayenne | Diesel |
| 2014 | Porsche | Cayenne | Diesel Platinum Edition |
| 2008-2010,2013-2018 | Porsche | Cayenne | GTS |
| 2014,2017-2018 | Porsche | Cayenne | Platinum Edition |
| 2003-2006,2008-2018 | Porsche | Cayenne | S |
| 2015-2018 | Porsche | Cayenne | S E-Hybrid |
| 2017-2018 | Porsche | Cayenne | S E-Hybrid Platinum Edition |
| 2011-2014 | Porsche | Cayenne | S Hybrid |
| 2010 | Porsche | Cayenne | S Transsyberia |
| 2003-2006,2008-2018 | Porsche | Cayenne | Turbo |
| 2006,2009-2010,2013-2014,2016-2018 | Porsche | Cayenne | Turbo S |
| 2007-2012,2014-2016 | Porsche | Cayman | Base |
| 2016 | Porsche | Cayman | Black Edition |
| 2016 | Porsche | Cayman | GT4 |
| 2015-2016 | Porsche | Cayman | GTS |
| 2012 | Porsche | Cayman | R |
| 2006-2012,2014-2016 | Porsche | Cayman | S |
| 2011-2016 | Porsche | Panamera | 4 |
| 2016 | Porsche | Panamera | 4 Edition |
| 2010-2016 | Porsche | Panamera | 4S |
| 2014-2016 | Porsche | Panamera | 4S Executive |
| 2011-2016 | Porsche | Panamera | Base |
| 2016 | Porsche | Panamera | Edition |
| 2016 | Porsche | Panamera | Exclusive |
| 2013-2016 | Porsche | Panamera | GTS |
| 2010-2016 | Porsche | Panamera | S |
| 2014-2016 | Porsche | Panamera | S E-Hybrid |
| 2012-2013 | Porsche | Panamera | S Hybrid |
| 2010-2016 | Porsche | Panamera | Turbo |
| 2014-2016 | Porsche | Panamera | Turbo Executive |
| 2012-2016 | Porsche | Panamera | Turbo S |
| 2014-2016 | Porsche | Panamera | Turbo S Executive |
| 2005-2009 | Volkswagen | Touareg | Base |
| 2011-2015 | Volkswagen | Touareg | Hybrid |
| 2004,2006-2011 | Volkswagen | Touareg | TDI |
| 2012-2016 | Volkswagen | Touareg | TDI Executive |
| 2012-2016 | Volkswagen | Touareg | TDI Lux |
| 2014 | Volkswagen | Touareg | TDI R-Line |
| 2012-2016 | Volkswagen | Touareg | TDI Sport |
| 2004 | Volkswagen | Touareg | V6 |
| 2012-2017 | Volkswagen | Touareg | V6 Executive |
| 2012-2016 | Volkswagen | Touareg | V6 Lux |
| 2014-2015 | Volkswagen | Touareg | V6 R-Line |
| 2012-2017 | Volkswagen | Touareg | V6 Sport |
| 2017 | Volkswagen | Touareg | V6 Wolfsburg |
| 2004 | Volkswagen | Touareg | V8 |
| 2010-2011 | Volkswagen | Touareg | VR6 |
| 2014 | Volkswagen | Touareg | X |
