Description

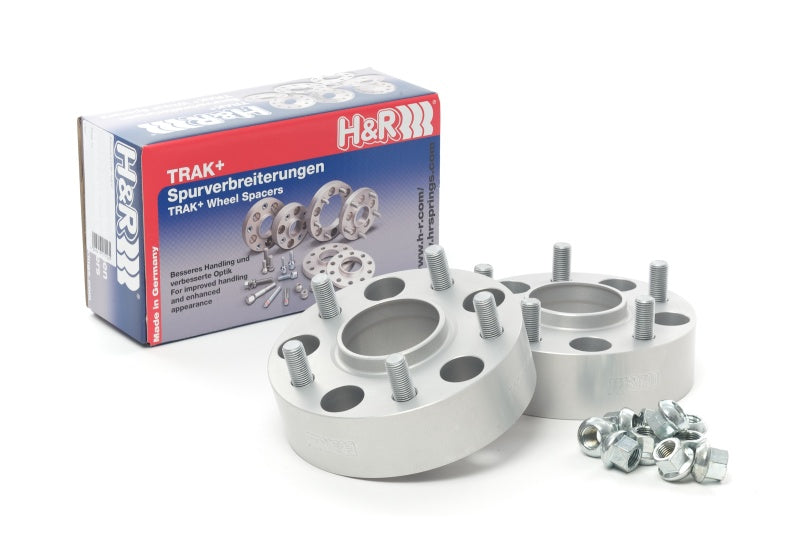

H&R TRAK+ 20mm DRM Wheel Spacers position the wheels farther outward to adjust their location relative to the vehicle’s fenders.
Spacer thickness must be selected around the actual wheel offset, tire size, hub interface, and available clearance. A spacer does not guarantee a flush fit or eliminate wheel-to-body interference.
Features
- Application-specific mounting dimensions.
- Selected thickness changes the wheel’s outward position.
Specifications
| Catalog SKU | HRS40395633 |
|---|---|
| Part number | 40395633 |
| Thickness per spacer | 20mm |
| Bolt pattern | 5x108 |
| Center bore | 63.3mm |
| Wheel-stud thread | M12x1.5 |
| Mounting system | DRM |
Fitment and Installation Notes

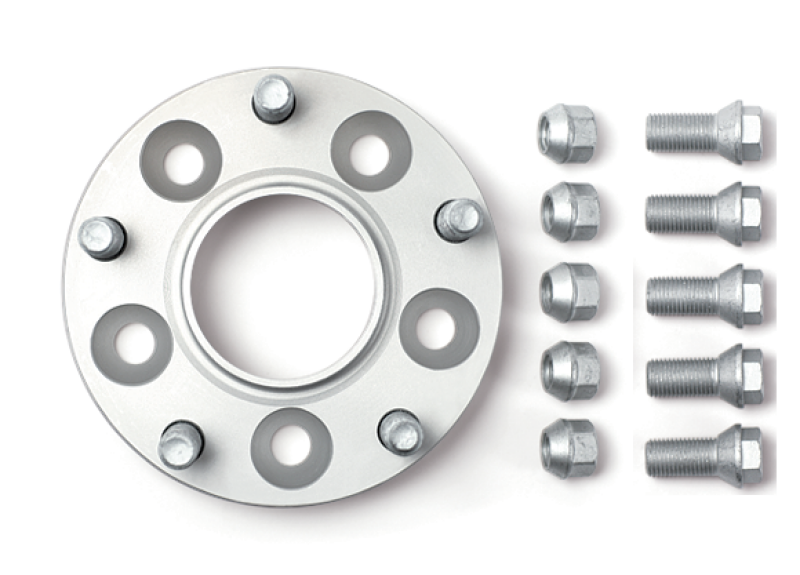

- The DRM system attaches to the original hub studs using special nuts, and the wheel mounts to studs carried by the spacer. Confirm clearance for the original studs and the wheel’s rear mounting surface.
- Check wheel, tire, fender, and suspension clearance before installation. Follow the instructions supplied for the exact spacer or adapter.
Vehicle Compatibility
The applications below remain subject to the suspension, hardware, and installation requirements stated above.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2018 | Ford | Focus | Electric |
| 2016-2018 | Ford | Focus | RS |
| 2012-2018 | Ford | Focus | S |
| 2012-2018 | Ford | Focus | SE |
| 2012,2017-2018 | Ford | Focus | SEL |
| 2013-2018 | Ford | Focus | ST |
| 2012-2018 | Ford | Focus | Titanium |
| 2008-2013 | Volvo | C30 | T5 |
| 2008-2013 | Volvo | C30 | T5 R-Design |
| 2006-2013 | Volvo | C70 | T5 |
| 2006-2010 | Volvo | S40 | 2.4i |
| 2004 | Volvo | S40 | Base |
| 2004-2005 | Volvo | S40 | i |
| 2004 | Volvo | S40 | LSE |
| 2004-2009,2011 | Volvo | S40 | T5 |
| 2010-2011 | Volvo | S40 | T5 R-Design |
| 2006-2010 | Volvo | V50 | 2.4i |
| 2005 | Volvo | V50 | i |
| 2005-2009,2011 | Volvo | V50 | T5 |
| 2010-2011 | Volvo | V50 | T5 R-Design |
