Description

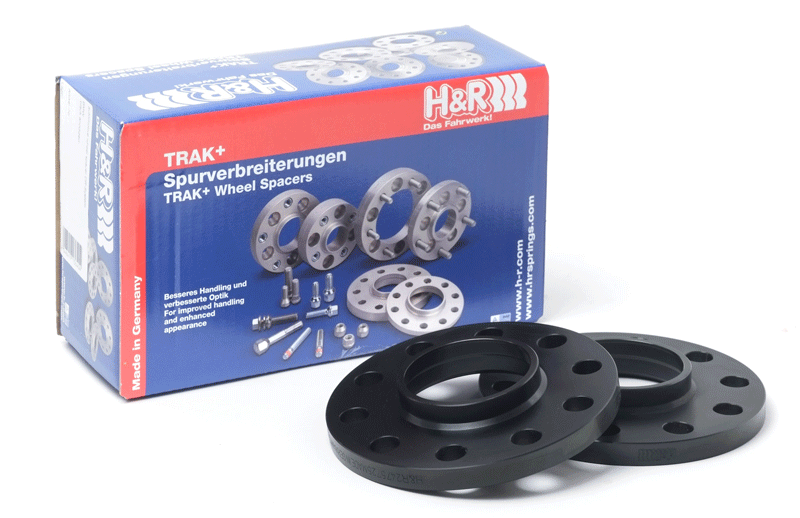

H&R TRAK+ 14mm DR Wheel Spacers position the wheels farther outward to adjust their location relative to the vehicle’s fenders.
Spacer thickness must be selected around the actual wheel offset, tire size, hub interface, and available clearance. A spacer does not guarantee a flush fit or eliminate wheel-to-body interference.
Features
- Application-specific mounting dimensions.
- Selected thickness changes the wheel’s outward position.
Specifications
| Catalog SKU | HRS28957161SW |
|---|---|
| Part number | 28957161SW |
| Thickness per spacer | 14mm |
| Bolt pattern | 5x130 |
| Center bore | 71.6mm |
| Application wheel-bolt thread | M14x1.5 |
| Finish | Black |
| Mounting system | DR |
Fitment and Installation Notes
- The DR system fits between the wheel and hub and requires longer wheel bolts, purchased separately. Match bolt seat type and required shaft length to the wheel and spacer application.
- Check wheel, tire, fender, and suspension clearance before installation. Follow the instructions supplied for the exact spacer or adapter.
Vehicle Compatibility
The applications below remain subject to the suspension, hardware, and installation requirements stated above.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2010 | Audi | Q7 | Base |
| 2007-2015 | Audi | Q7 | Premium |
| 2011-2015 | Audi | Q7 | Premium Plus |
| 2010-2015 | Audi | Q7 | Prestige |
| 2009-2010 | Audi | Q7 | TDI |
| 2011-2015 | Audi | Q7 | TDI Premium |
| 2011-2015 | Audi | Q7 | TDI Premium Plus |
| 2011-2015 | Audi | Q7 | TDI Prestige |
| 2021-2022 | Porsche | 718 Boxster | 25 Years |
| 2017-2025 | Porsche | 718 Boxster | Base |
| 2018-2019 | Porsche | 718 Boxster | GTS |
| 2021-2025 | Porsche | 718 Boxster | GTS 4.0 |
| 2017-2025 | Porsche | 718 Boxster | S |
| 2024-2025 | Porsche | 718 Boxster | Style Edition |
| 2020-2023 | Porsche | 718 Boxster | T |
| 2017-2025 | Porsche | 718 Cayman | Base |
| 2020-2023 | Porsche | 718 Cayman | GT4 |
| 2022-2025 | Porsche | 718 Cayman | GT4 RS |
| 2018-2019 | Porsche | 718 Cayman | GTS |
| 2021-2025 | Porsche | 718 Cayman | GTS 4.0 |
| 2017-2025 | Porsche | 718 Cayman | S |
| 2024-2025 | Porsche | 718 Cayman | Style Edition |
| 2020-2023 | Porsche | 718 Cayman | T |
| 2004 | Porsche | 911 | 40th Anniversary Edition |
| 2014 | Porsche | 911 | 50th Anniversary Edition |
| 1998-2026 | Porsche | 911 | Carrera |
| 1998-2004,2006-2024 | Porsche | 911 | Carrera 4 |
| 2016 | Porsche | 911 | Carrera 4 Black Edition |
| 2012,2015-2016,2018-2019,2022-2026 | Porsche | 911 | Carrera 4 GTS |
| 1998,2002-2024 | Porsche | 911 | Carrera 4S |
| 2016 | Porsche | 911 | Carrera Black Edition |
| 2011-2012,2015-2016,2018-2019,2022-2026 | Porsche | 911 | Carrera GTS |
| 1998,2005-2026 | Porsche | 911 | Carrera S |
| 2018-2019,2023-2026 | Porsche | 911 | Carrera T |
| 2023-2024 | Porsche | 911 | Dakar |
| 2023 | Porsche | 911 | Edition 50 Years Porsche Design |
| 2002-2005,2008-2009 | Porsche | 911 | GT2 |
| 2011,2018-2019 | Porsche | 911 | GT2 RS |
| 2004-2005,2007-2008,2010-2011,2014-2016,2018-2019,2022-2026 | Porsche | 911 | GT3 |
| 2007-2008,2010-2011,2016,2019,2023-2026 | Porsche | 911 | GT3 RS |
| 2011 | Porsche | 911 | GT3 RS 4.0 |
| 2023-2026 | Porsche | 911 | GT3 Touring Package |
| 2016 | Porsche | 911 | R |
| 2024-2025 | Porsche | 911 | S/T |
| 2011,2019 | Porsche | 911 | Speedster |
| 2026 | Porsche | 911 | Spirit 70 |
| 2023 | Porsche | 911 | Sport Classic |
| 1998,2002 | Porsche | 911 | Targa |
| 2007-2012,2014-2019,2021-2024 | Porsche | 911 | Targa 4 |
| 2016,2018-2019,2022-2026 | Porsche | 911 | Targa 4 GTS |
| 2007-2012,2014-2019,2021-2024 | Porsche | 911 | Targa 4S |
| 2021 | Porsche | 911 | Targa 4S Heritage Design Edition |
| 2001-2005,2007-2019,2021-2026 | Porsche | 911 | Turbo |
| 2025 | Porsche | 911 | Turbo 50 Years |
| 2005,2011-2019,2021-2026 | Porsche | 911 | Turbo S |
| 2018 | Porsche | 911 | Turbo S Exclusive Series |
| 1997-1999,2004-2016 | Porsche | Boxster | Base |
| 2016 | Porsche | Boxster | Black Edition |
| 2015-2016 | Porsche | Boxster | GTS |
| 2008 | Porsche | Boxster | Limited Edition |
| 2000-2003 | Porsche | Boxster | Roadster |
| 2000-2003 | Porsche | Boxster | Roadster S |
| 2008 | Porsche | Boxster | RS 60 Spyder |
| 2004-2016 | Porsche | Boxster | S |
| 2012 | Porsche | Boxster | S Black Edition |
| 2008 | Porsche | Boxster | S Limited Edition |
| 2009 | Porsche | Boxster | S Porsche Design 2 |
| 2004 | Porsche | Boxster | S Special Edition |
| 2011-2012,2016 | Porsche | Boxster | Spyder |
| 2007-2012,2014-2016 | Porsche | Cayman | Base |
| 2016 | Porsche | Cayman | Black Edition |
| 2016 | Porsche | Cayman | GT4 |
| 2015-2016 | Porsche | Cayman | GTS |
| 2012 | Porsche | Cayman | R |
| 2006-2012,2014-2016 | Porsche | Cayman | S |
| 2011-2016 | Porsche | Panamera | 4 |
| 2016 | Porsche | Panamera | 4 Edition |
| 2010-2016 | Porsche | Panamera | 4S |
| 2014-2016 | Porsche | Panamera | 4S Executive |
| 2011-2016 | Porsche | Panamera | Base |
| 2016 | Porsche | Panamera | Edition |
| 2016 | Porsche | Panamera | Exclusive |
| 2013-2016 | Porsche | Panamera | GTS |
| 2010-2016 | Porsche | Panamera | S |
| 2014-2016 | Porsche | Panamera | S E-Hybrid |
| 2012-2013 | Porsche | Panamera | S Hybrid |
| 2010-2016 | Porsche | Panamera | Turbo |
| 2014-2016 | Porsche | Panamera | Turbo Executive |
| 2012-2016 | Porsche | Panamera | Turbo S |
| 2014-2016 | Porsche | Panamera | Turbo S Executive |
