Description

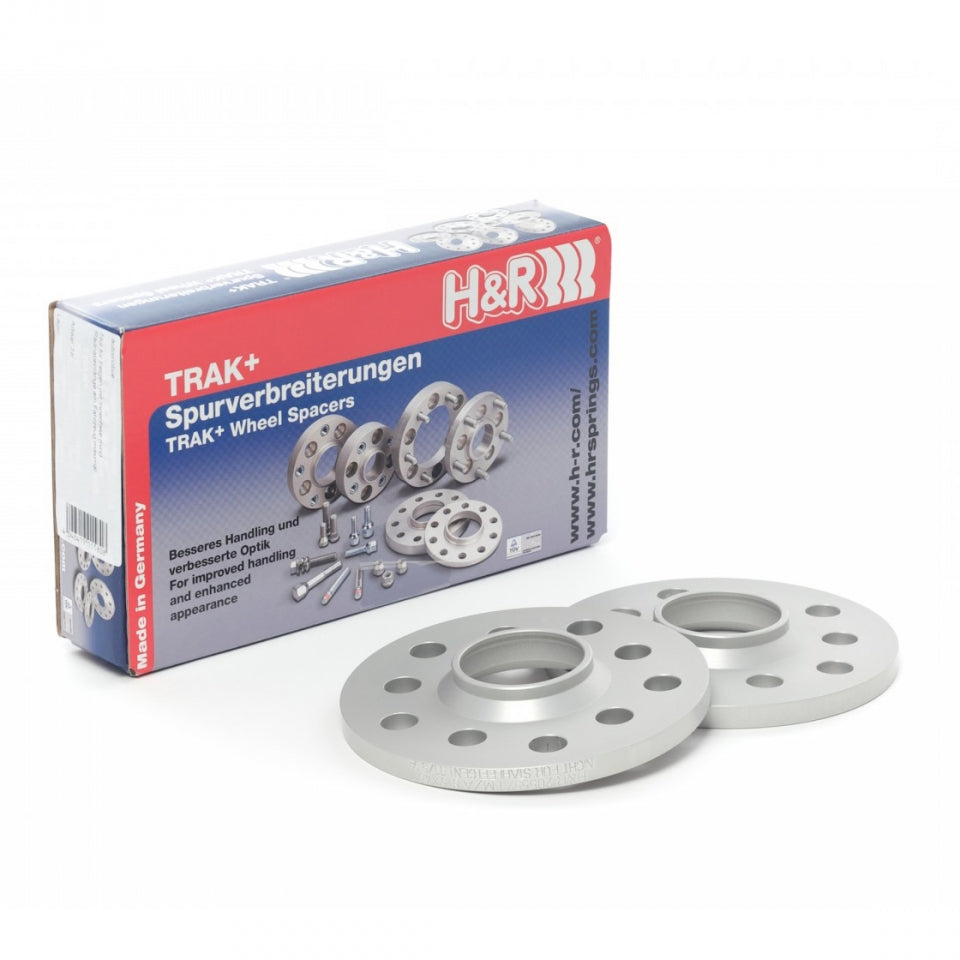

H&R TRAK+ 14mm DR Wheel Spacers position the wheels farther outward to adjust their location relative to the vehicle’s fenders.
Spacer thickness must be selected around the actual wheel offset, tire size, hub interface, and available clearance. A spacer does not guarantee a flush fit or eliminate wheel-to-body interference.
Features
- Application-specific mounting dimensions.
- Selected thickness changes the wheel’s outward position.
Specifications
| Catalog SKU | HRS2824566 |
|---|---|
| Part number | 2824566 |
| Thickness per spacer | 14mm |
| Bolt pattern | 4x100 |
| Center bore | 56.6mm |
| Application wheel-bolt thread | M12x1.5 |
| Mounting system | DR |
Fitment and Installation Notes
- The DR system fits between the wheel and hub and requires longer wheel bolts, purchased separately. Match bolt seat type and required shaft length to the wheel and spacer application.
- Check wheel, tire, fender, and suspension clearance before installation. Follow the instructions supplied for the exact spacer or adapter.
Vehicle Compatibility
The applications below remain subject to the suspension, hardware, and installation requirements stated above.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2011 | Lotus | Elise | Base |
| 2011 | Lotus | Elise | R |
| 2008-2011 | Lotus | Elise | SC |
| 2006 | Lotus | Exige | Base |
| 2007-2009 | Lotus | Exige | S |
| 2008-2011 | Lotus | Exige | S 240 |
