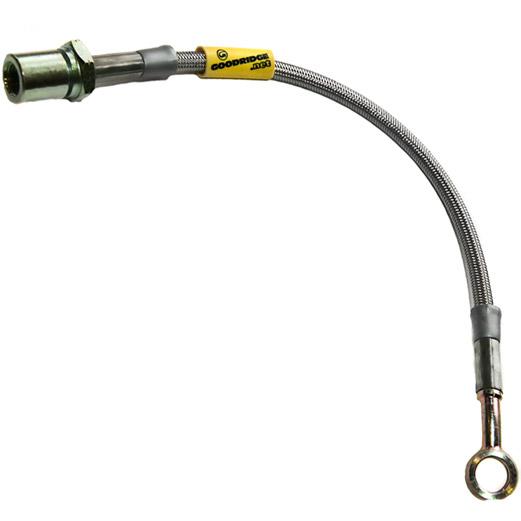

Description
Goodridge Clutch Line is listed for 1990-1997 Acura Integra / 2001-2003 Civic. It upgrades the application’s flexible hydraulic clutch connection with reinforced hose construction intended to support consistent hydraulic response.
A PTFE inner hose carries the hydraulic fluid, while stainless steel braid reinforces the hose to help limit expansion as pressure operates the clutch release system. Final pedal feel also depends on the master cylinder, slave cylinder and other components in the release system.
Technical highlights
- Listed application: 1990-1997 Acura Integra / 2001-2003 Civic.
- PTFE inner hose with stainless steel braid.
- Reinforcement helps limit pressure-induced hose expansion.
- Hydraulic clutch application; not a brake hose replacement.
Fitment considerations
Confirm the transmission and hydraulic configuration before ordering, particularly if either has been converted from the original arrangement.
Installation and system performance
Route the line without twisting, stretching or contact with hot or moving components. Bleed the clutch circuit using the applicable service procedure and verify correct release operation before use.
This line does not increase clutch torque capacity or change pressure-plate clamping force. Worn hydraulic or clutch components require separate diagnosis.
Vehicle applications
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990-1993,1997 | Acura | Integra | GS |
| 1992-1997 | Acura | Integra | GS-R |
| 1990-1997 | Acura | Integra | LS |
| 1990-1997 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997 | Acura | Integra | Type R |
| 2001-2003 | Honda | Civic | DX |
| 2001-2003 | Honda | Civic | EX |
| 2001-2003 | Honda | Civic | GX |
| 2001-2003 | Honda | Civic | HX |
| 2003 | Honda | Civic | Hybrid |
| 2001-2003 | Honda | Civic | LX |
| 2002-2003 | Honda | Civic | Si |
Catalog SKU: GRI20062-CLU
