Description

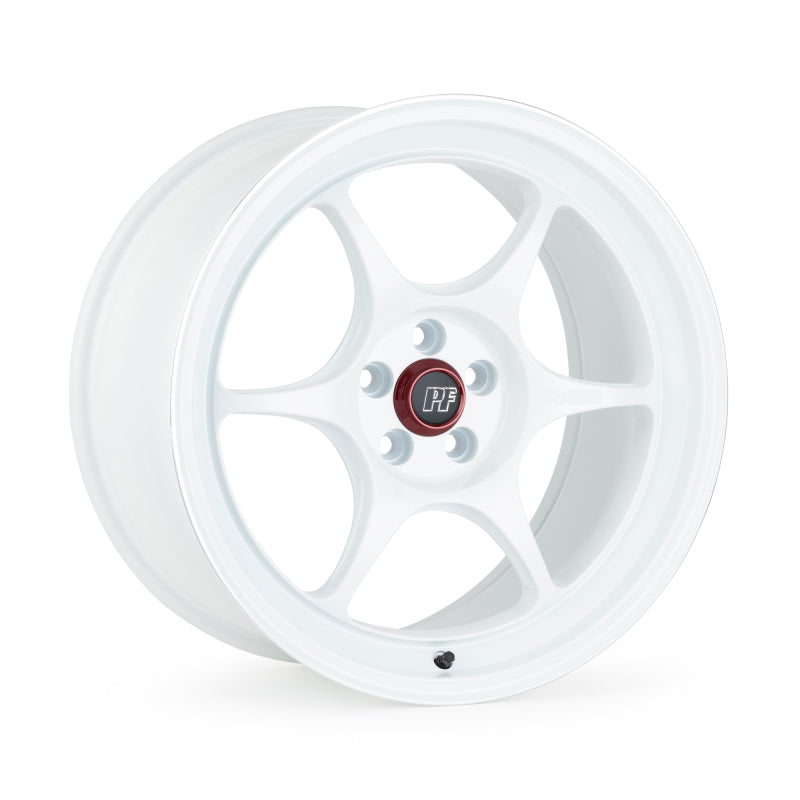

This ENKEI PF06 is listed in 17x9 size with +45mm offset, a 5x100 bolt pattern, and a White Machined finish.
Design and construction
The PF06 combines a six-spoke face with a stepped rim and styling influenced by 1990s Japanese circuit wheels. H Cross Spoke milling removes material from selected areas while retaining structural strength and rigidity.
ENKEI’s MAT process combines a cast wheel with a formed rim section, improving rim material properties through the forming operation.
This model is Spec-E inspected, using ENKEI’s internal wheel-testing standard.
Specifications
- Size: 17x9
- Offset: +45mm
- Bolt pattern: 5x100
- Finish: White Machined
- Center bore: 75mm
- Face profile: Front (profile designation)
- SKU: ENK545-790-8045WM
Fitment considerations
Confirm tire dimensions, brake clearance, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not establish vehicle fitment. Wheel width and offset influence both inner clearance and outward position, so compare this configuration with your existing setup. If hub rings are needed, their outside diameter must match the 75mm wheel bore and their inside diameter must match the vehicle hub.
Included components
- Center cap
- Valve
- EK DAZZLE WHEEL sticker
