Description
Designed around 2024-2026 Lexus GX550 (GA-F), Eibach Pro-Truck Coilovers – 2024-2026 Lexus GX550 (GA-F) is intended for owners who want usable lift and better suspension control rather than relying on a cosmetic spacer lift alone.
The finished setup should be chosen around real vehicle use, wheel and tire size, accessory weight, and factory trim rather than the advertised lift number by itself.
Application focus: This page is tied to chassis GA-F; engine/application 3.4L TWIN TURBO V6; drivetrain 4WD; trim/submodel Premium, Premium+, Luxury. Those details matter because Eibach may assign different components within the same model generation.
What makes this application specific: Eibach identifies front specification +0.5-3.0" and rear specification +1.5" for this listing. It should not be assumed interchangeable with another year, trim, or chassis that uses the same product family.
Why This Eibach Setup Makes Sense
- Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
- Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
- Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
- Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
- Engineered, Tested and Manufactured by Eibach in the U.S.A.
Product Details
- Front: +0.5-3.0"
- Rear: +1.5"

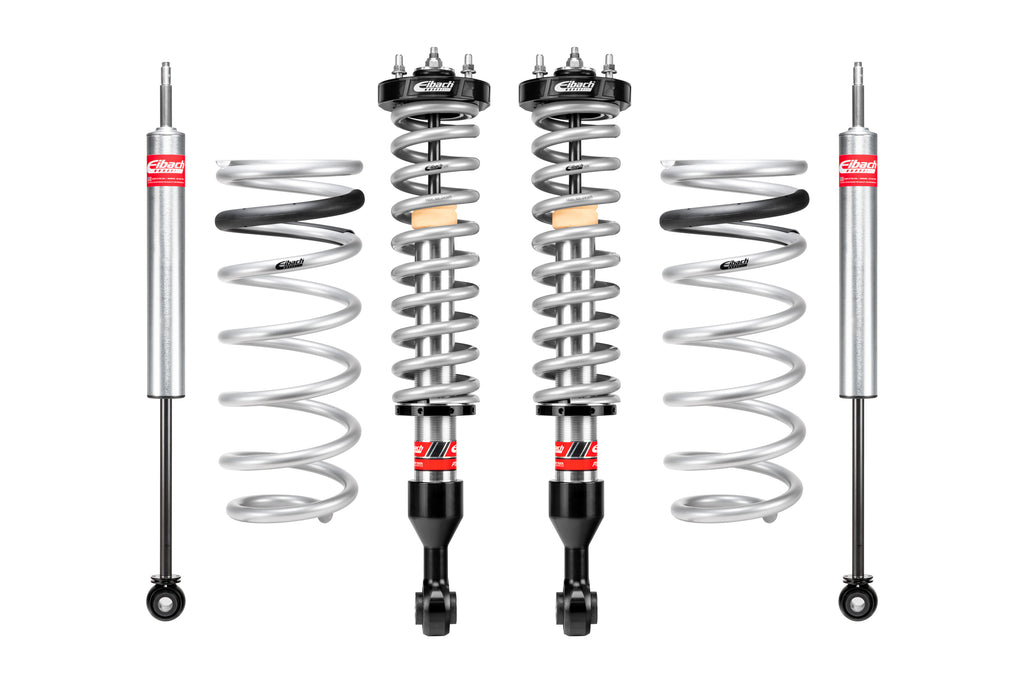

- Eibach package: Pair of Front Coilovers + Rear Shocks
- Product family: PRO-TRUCK COIL OVER SYSTEM
- Eibach part number: E86-59-009-01-22
What This Listing Represents
Pair of Front Coilovers + Rear Shocks. The selected Eibach part number determines the exact component or kit supplied.
Fitment Notes
- Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.
- Do not exceed the max called out lift height, poor ride quality will result.
Before Installation
A post-installation alignment is recommended. Wheel and tire size, accessory weight, factory trim, and final ride height can all affect the finished setup.
Fitment data is application-specific. Confirm the selected Eibach part number against the exact vehicle configuration before ordering.
